Unofficial File parts/s/7304s01.dat
File Header:

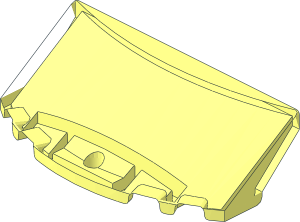

0 ~Windscreen 3 x 6 x 1.333 - without Front Surface
0 Name: s\7304s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7304s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\7304s03.dat
1 16 0 -5.25 0 1 0 0 0 -1.3125 0 0 0 1 stud3a.dat
3 16 16 0 -6 0 0 -10 -16 0 -6
4 16 -40 0 10 40 0 10 16 0 6 -16 0 6
3 16 -58.5 -32 50 -58.5 -32 49.48 -51.1 -32 47.129
3 16 51.1 -32 47.129 58.5 -32 49.48 58.5 -32 50
4 16 58.5 -32 50 -58.5 -32 50 -51.1 -32 47.129 51.1 -32 47.129
4 16 -41.079 -32 44.482 41.079 -32 44.482 51.1 -32 47.129 -51.1 -32 47.129
4 16 -30.928 -32 42.422 30.928 -32 42.422 41.079 -32 44.482 -41.079 -32 44.482
4 16 30.928 -32 42.422 -30.928 -32 42.422 -20.677 -32 40.939 20.677 -32 40.939
4 16 -10.355 -32 40.051 10.355 -32 40.051 20.677 -32 40.939 -20.677 -32 40.939
3 16 10.355 -32 40.051 -10.355 -32 40.051 0 -32 39.746
4 16 58.5 -32 50 56.25 -28.25 50 -56.25 -28.25 50 -58.5 -32 50
3 16 -40 0 10 0 -11.461 10 40 0 10
3 16 56.25 -28.25 50 49.435 -28.25 47.812 -56.25 -28.25 50
3 16 -56.25 -28.25 50 49.435 -28.25 47.812 -49.435 -28.25 47.812
3 16 -49.435 -28.25 47.812 49.435 -28.25 47.812 -42.528 -28.25 45.929
3 16 -42.528 -28.25 45.929 49.435 -28.25 47.812 42.528 -28.25 45.929
3 16 -42.528 -28.25 45.929 42.528 -28.25 45.929 -35.549 -28.25 44.338
3 16 -35.549 -28.25 44.338 42.528 -28.25 45.929 35.549 -28.25 44.338
3 16 -35.549 -28.25 44.338 35.549 -28.25 44.338 -28.509 -28.25 43.04
3 16 -28.509 -28.25 43.04 35.549 -28.25 44.338 28.509 -28.25 43.04
3 16 -28.509 -28.25 43.04 28.509 -28.25 43.04 -21.424 -28.25 42.016
3 16 -21.424 -28.25 42.016 28.509 -28.25 43.04 21.424 -28.25 42.016
3 16 -21.424 -28.25 42.016 21.424 -28.25 42.016 -14.302 -28.25 41.294
3 16 -14.302 -28.25 41.294 21.424 -28.25 42.016 14.302 -28.25 41.294
3 16 -14.302 -28.25 41.294 14.302 -28.25 41.294 -7.157 -28.25 40.853
3 16 -7.157 -28.25 40.853 14.302 -28.25 41.294 7.157 -28.25 40.853
3 16 -7.157 -28.25 40.853 7.157 -28.25 40.853 0 -28.25 40.708
4 16 16 -7.751 6 -16 -7.751 6 -16 0 6 16 0 6
4 16 16 -5.25 -6 16 0 -6 -16 0 -6 -16 -5.25 -6
3 16 16 -5.25 -6 -16 -5.25 -6 0 -5.25 -4
3 16 0 -8.977 5.743 -16 -7.751 6 16 -7.751 6
2 24 -16 0 -6 16 0 -6
2 24 -40 0 10 40 0 10
2 24 16 0 6 -16 0 6
2 24 58.5 -32 50 -58.5 -32 50
2 24 56.25 -28.25 50 -56.25 -28.25 50
2 24 -16 -5.25 -6 16 -5.25 -6
5 24 0 -11.461 10 0 -28.25 40.708 -7.157 -28.25 40.853 7.157 -28.25 40.853
5 24 0 -8.18 4 0 -8.931 5.373 -1.531 -8.008 3.696 1.531 -8.008 3.696
5 24 0 -8.931 5.373 0 -8.977 5.743 16 -8.319 5.744 -16 -8.319 5.744
5 24 0 -5.25 4 0 -8.18 4 -1.531 -8.008 3.696 1.531 -8.008 3.696
5 24 -58.5 -32 50 -58.5 -32 49.48 58.5 -32 49.48 -59.561 -31.56 49.197
5 24 58.5 -32 49.48 58.5 -32 50 -58.5 -32 50 59.561 -31.56 49.197
5 24 0 -4.8 -10 0 0 -10 -10.375 0 -9.459 10.375 0 -9.459
5 24 0 -4.8 -10 0 -32 39.746 10.375 -4.8 -9.459 -10.375 -4.8 -9.459
5 24 -16 -7.751 6 16 -7.751 6 -16 0 6 0 -8.977 5.743
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
