Unofficial File parts/s/30361ds03.dat

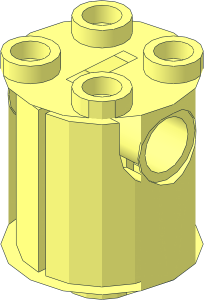

~Cylinder 2 x 2 x 2 Robot Body without Bottom Connector without Front and Back Faces
File Header:
0 ~Cylinder 2 x 2 x 2 Robot Body without Bottom Connector without Front and Back Faces 0 Name: s\30361ds03.dat 0 Author: Chris Böhnke [KnightOfTarenta] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW
Show contents
0 // Sub-Filed from 30361ds01.dat by Joerg Sommerer [Brickaneer] 1 16 0 30 0 0 0 2 0 -1 0 2 0 0 4-4ring9.dat 1 16 0 30 0 0 0 1.129 0 -1 0 1.129 0 0 4-4ring15.dat 0 BFC INVERTNEXT 1 16 -2 0 0 0 -16 0 6 0 0 0 0 6 4-4cylo.dat 1 16 -18 0 0 0 1 0 2 0 0 0 0 2 4-4ring3.dat 1 16 -18 0 0 0 1 0 8 0 0 0 0 8 4-4edge.dat 0 BFC INVERTNEXT 1 16 18 0 0 0 -16 0 6 0 0 0 0 6 4-4cylo.dat 1 16 18 0 0 0 -1 0 2 0 0 0 0 -2 4-4ring3.dat 1 16 18 0 0 0 -1 0 8 0 0 0 0 -8 4-4edge.dat 1 16 0 38 0 6 0 0 0 1 0 0 0 6 4-4edge.dat 1 16 13.82 34 0 5.98 0 0 -4 -1 0 0 0 -1 rect.dat 1 16 -13.82 34 0 -5.98 0 0 -4 -1 0 0 0 1 rect.dat 1 16 0 -10 0 14.14 0 -14.14 0 1 0 14.14 0 14.14 1-4chrd.dat 1 16 0 -10 0 14.14 0 14.14 0 1 0 -14.14 0 14.14 1-4chrd.dat 1 16 0 30 0 20 0 0 0 -1 0 0 0 20 4-4edge.dat 1 16 0 -10 0 18.4776 0 7.65367 0 -1 0 -7.65367 0 18.4776 1-8edge.dat 1 16 0 -10 0 -7.65367 0 18.4776 0 -1 0 -18.4776 0 -7.65367 1-8edge.dat 1 16 0 -10 0 -18.4776 0 -7.65367 0 -1 0 7.65367 0 -18.4776 1-8edge.dat 1 16 0 -10 0 7.65367 0 -18.4776 0 -1 0 18.4776 0 7.65367 1-8edge.dat 1 16 3.742 11.5 -16.195 0 1 -2.7415 18.5 0 0 0 0 -0.545 rect3.dat 1 16 9.232 11.5 -13.815 2.7485 1 0 0 0 18.5 1.835 0 0 rect2p.dat 1 16 -9.232 11.5 -13.815 2.7485 -1 0 0 0 18.5 -1.835 0 0 rect2p.dat 1 16 -3.742 11.5 -16.195 0 -1 2.7415 -18.5 0 0 0 0 -0.545 rect3.dat 1 16 -3.742 11.5 16.195 0 -1 2.7415 18.5 0 0 0 0 0.545 rect3.dat 1 16 -9.232 11.5 13.815 -2.7485 -1 0 0 0 18.5 -1.835 0 0 rect2p.dat 1 16 3.742 11.5 16.195 0 1 -2.7415 -18.5 0 0 0 0 0.545 rect3.dat 1 16 9.232 11.5 13.815 -2.7485 1 0 0 0 18.5 1.835 0 0 rect2p.dat 1 16 0 -10 0 -14.14 0 14.14 0 1 0 -14.14 0 -14.14 1-4chrd.dat 1 16 0 -10 0 -14.14 0 -14.14 0 1 0 14.14 0 -14.14 1-4chrd.dat 1 16 10 -10 10 1 0 0 0 1 0 0 0 1 stud6.dat 1 16 -10 -10 10 0 0 -1 0 1 0 1 0 0 stud6.dat 1 16 10 -10 -10 0 0 1 0 1 0 -1 0 0 stud6.dat 1 16 -10 -10 -10 -1 0 0 0 1 0 0 0 -1 stud6.dat 1 16 -7.465 -3.5 9.059 -6.465 0 0 0 0 -3.5 0 -1 0 rect3.dat 1 16 -7.465 -3.5 -9.059 6.465 0 0 0 0 -3.5 0 1 0 rect3.dat 1 16 7.465 -3.5 -9.059 6.465 0 0 0 0 -3.5 0 1 0 rect3.dat 1 16 7.465 -3.5 9.059 -6.465 0 0 0 0 -3.5 0 -1 0 rect3.dat 3 16 -18.53 3.0616 7.3912 -18 3.0616 7.3912 -18.48 1.741 7.654 3 16 -18.25 0 8 -18 0 8 -18.48 -1.741 7.654 3 16 -18.53 -3.0616 -7.3912 -18 -3.0616 -7.3912 -18.48 -1.741 -7.654 3 16 -18.25 0 -8 -18 0 -8 -18.48 1.741 -7.654 3 16 18.53 -3.0616 7.3912 18 -3.0616 7.3912 18.48 -1.741 7.654 3 16 18.25 0 8 18 0 8 18.48 1.741 7.654 3 16 18.53 3.0616 -7.3912 18 3.0616 -7.3912 18.48 1.741 -7.654 3 16 18.25 0 -8 18 0 -8 18.48 -1.741 -7.654 3 16 7.84 38 1 4.2426 38 -4.2426 5.5434 38 -2.2962 3 16 3.076 38 7.427 4.2426 38 4.2426 2.2962 38 5.5434 3 16 -7.84 38 -1 -4.2426 38 4.2426 -5.5434 38 2.2962 3 16 -2.2962 38 5.5434 -5.685 38 5.685 -3.076 38 7.427 3 16 -19.8 30 -1 -7.84 38 -1 -16.74 30 -1 3 16 -16.74 30 1 -7.84 38 1 -19.8 30 1 3 16 19.8 30 1 7.84 38 1 16.74 30 1 3 16 16.74 30 -1 7.84 38 -1 19.8 30 -1 3 16 1 4.258 7.84 1 30 7.84 1 3.467 8.369 3 16 -1 -7 16.74 -1 0 9.059 -1 -7 9.059 3 16 1 -7 -16.74 1 0 -9.059 1 -7 -9.059 3 16 -1 4.258 -7.84 -1 30 -7.84 -1 3.467 -8.369 3 16 15.65 6.289 6.483 15.65 30 6.483 15.67 6.406 6.406 3 16 16.25 8.369 3.467 16.74 30 1 16.74 8.86 1 3 16 -15.65 6.289 -6.483 -15.65 30 -6.483 -15.67 6.406 -6.406 3 16 -16.25 8.369 -3.467 -16.74 30 -1 -16.74 8.86 -1 3 16 -15.65 30 6.483 -15.65 6.289 6.483 -15.67 6.406 6.406 3 16 -16.74 30 1 -16.25 8.369 3.467 -16.74 8.86 1 3 16 15.65 30 -6.483 15.65 6.289 -6.483 15.67 6.406 -6.406 3 16 16.74 30 -1 16.25 8.369 -3.467 16.74 8.86 -1 3 16 4.606 6.406 6.406 15.65 6.289 6.483 15.67 6.406 6.406 3 16 4.606 6.406 -6.406 15.67 6.406 -6.406 3.076 4.876 -7.427 3 16 20 -8 0 19.39 -7.3912 3.0616 20 -10 0 3 16 18.48 -10 7.654 18.87 -5.6568 5.6568 18.53 -3.0616 7.3912 3 16 18.48 -10 7.654 18.53 -3.0616 7.3912 18.48 -1.741 7.654 3 16 18.48 -1.741 -7.654 18.53 -3.0616 -7.3912 18.48 -10 -7.654 3 16 18.48 -10 -7.654 18.53 -3.0616 -7.3912 18.87 -5.6568 -5.6568 3 16 20 -10 0 19.39 -7.3912 -3.0616 20 -8 0 3 16 7.167 8.369 3.467 16.25 8.369 3.467 7.427 8.447 3.076 3 16 7.84 8.86 -1 16.74 8.86 -1 7.427 8.447 -3.076 3 16 13.93 0 -9.059 11.98 -7 -11.98 13.93 -7 -9.059 3 16 -11.98 -7 -11.98 -13.93 0 -9.059 -13.93 -7 -9.059 3 16 1 -7 -16.74 1 -7 -9.059 6.483 -7 -15.65 3 16 11.98 -7 11.98 13.93 -7 9.059 6.483 -7 15.65 3 16 11.98 -7 11.98 13.93 0 9.059 13.93 -7 9.059 3 16 -13.93 0 9.059 -11.98 -7 11.98 -13.93 -7 9.059 3 16 -4.606 6.406 -6.406 -15.65 6.289 -6.483 -15.67 6.406 -6.406 3 16 -11.98 -7 -11.98 -13.93 -7 -9.059 -6.483 -7 -15.65 3 16 -4.606 6.406 6.406 -15.67 6.406 6.406 -3.076 4.876 7.427 3 16 -6.483 -7 15.65 -1 -7 16.74 -11.98 -7 11.98 3 16 -1 30 -7.84 0 30 -8.039 -1 30 -17.74 3 16 -1 30 17.74 0 30 8.039 -1 30 7.84 3 16 20 30 0 18.87 5.6568 5.6568 19.39 7.3912 3.0616 3 16 18.48 1.741 7.654 18.53 3.0616 7.3912 18.48 30 7.654 3 16 18.48 30 7.654 18.53 3.0616 7.3912 19.8 30 1 3 16 19.39 7.3912 3.0616 20 8 0 20 30 0 3 16 19.39 7.3912 -3.0616 20 30 0 20 8 0 3 16 18.48 1.741 -7.654 18.48 30 -7.654 18.53 3.0616 -7.3912 3 16 -20 30 0 -18.87 5.6568 -5.6568 -19.39 7.3912 -3.0616 3 16 -18.48 1.741 -7.654 -18.53 3.0616 -7.3912 -18.48 30 -7.654 3 16 -18.48 30 -7.654 -18.53 3.0616 -7.3912 -19.8 30 -1 3 16 -19.39 7.3912 -3.0616 -20 8 0 -20 30 0 3 16 -20 -8 0 -19.39 -7.3912 -3.0616 -20 -10 0 3 16 -18.48 -10 -7.654 -18.87 -5.6568 -5.6568 -18.53 -3.0616 -7.3912 3 16 -18.48 -10 -7.654 -18.53 -3.0616 -7.3912 -18.48 -1.741 -7.654 3 16 -18.48 1.741 7.654 -18.48 30 7.654 -18.53 3.0616 7.3912 3 16 -19.39 7.3912 3.0616 -20 30 0 -20 8 0 3 16 -18.48 -1.741 7.654 -18.53 -3.0616 7.3912 -18.48 -10 7.654 3 16 -18.48 -10 7.654 -18.53 -3.0616 7.3912 -18.87 -5.6568 5.6568 3 16 -20 -10 0 -19.39 -7.3912 3.0616 -20 -8 0 3 16 7.167 8.369 -3.467 16.25 8.369 -3.467 5.685 6.887 -5.685 3 16 -7.167 8.369 3.467 -16.25 8.369 3.467 -5.685 6.887 5.685 3 16 -4.606 6.406 -6.406 -15.67 6.406 -6.406 -5.685 6.887 -5.685 3 16 4.606 6.406 6.406 15.67 6.406 6.406 5.685 6.887 5.685 3 16 7.427 8.447 3.076 7.427 38 3.076 7.167 8.369 3.467 3 16 5.685 6.887 5.685 5.685 38 5.685 4.606 6.406 6.406 3 16 -3.076 4.876 7.427 -3.076 38 7.427 -4.606 6.406 6.406 3 16 -5.685 6.887 5.685 -5.685 38 5.685 -7.167 8.369 3.467 3 16 -7.427 8.447 -3.076 -7.427 38 -3.076 -7.167 8.369 -3.467 3 16 -5.685 6.887 -5.685 -5.685 38 -5.685 -4.606 6.406 -6.406 3 16 -16.25 8.369 3.467 -7.167 8.369 3.467 -7.427 8.447 3.076 3 16 -7.427 8.447 -3.076 -7.167 8.369 -3.467 -16.25 8.369 -3.467 3 16 3.076 4.876 -7.427 3.076 38 -7.427 4.606 6.406 -6.406 3 16 5.685 6.887 -5.685 5.685 38 -5.685 7.167 8.369 -3.467 4 16 -20 8 0 -18 8 0 -18 7.3912 3.0616 -19.39 7.3912 3.0616 4 16 -19.39 7.3912 3.0616 -18 7.3912 3.0616 -18 5.6568 5.6568 -18.87 5.6568 5.6568 4 16 -18.87 5.6568 5.6568 -18 5.6568 5.6568 -18 3.0616 7.3912 -18.53 3.0616 7.3912 4 16 -18.48 1.741 7.654 -18 3.0616 7.3912 -18 0 8 -18.25 0 8 4 16 -18.48 -1.741 7.654 -18 0 8 -18 -3.0616 7.3912 -18.53 -3.0616 7.3912 4 16 -18 -3.0616 7.3912 -18 -5.6568 5.6568 -18.87 -5.6568 5.6568 -18.53 -3.0616 7.3912 4 16 -18 -5.6568 5.6568 -18 -7.3912 3.0616 -19.39 -7.3912 3.0616 -18.87 -5.6568 5.6568 4 16 -18 -7.3912 3.0616 -18 -8 0 -20 -8 0 -19.39 -7.3912 3.0616 4 16 -20 -8 0 -18 -8 0 -18 -7.3912 -3.0616 -19.39 -7.3912 -3.0616 4 16 -19.39 -7.3912 -3.0616 -18 -7.3912 -3.0616 -18 -5.6568 -5.6568 -18.87 -5.6568 -5.6568 4 16 -18.87 -5.6568 -5.6568 -18 -5.6568 -5.6568 -18 -3.0616 -7.3912 -18.53 -3.0616 -7.3912 4 16 -18.48 -1.741 -7.654 -18 -3.0616 -7.3912 -18 0 -8 -18.25 0 -8 4 16 -18.48 1.741 -7.654 -18 0 -8 -18 3.0616 -7.3912 -18.53 3.0616 -7.3912 4 16 -18 3.0616 -7.3912 -18 5.6568 -5.6568 -18.87 5.6568 -5.6568 -18.53 3.0616 -7.3912 4 16 -18 5.6568 -5.6568 -18 7.3912 -3.0616 -19.39 7.3912 -3.0616 -18.87 5.6568 -5.6568 4 16 -18 7.3912 -3.0616 -18 8 0 -20 8 0 -19.39 7.3912 -3.0616 4 16 18 -3.0616 -7.3912 18 -5.6568 -5.6568 18.87 -5.6568 -5.6568 18.53 -3.0616 -7.3912 4 16 18 -5.6568 -5.6568 18 -7.3912 -3.0616 19.39 -7.3912 -3.0616 18.87 -5.6568 -5.6568 4 16 18 -7.3912 -3.0616 18 -8 0 20 -8 0 19.39 -7.3912 -3.0616 4 16 20 -8 0 18 -8 0 18 -7.3912 3.0616 19.39 -7.3912 3.0616 4 16 19.39 -7.3912 3.0616 18 -7.3912 3.0616 18 -5.6568 5.6568 18.87 -5.6568 5.6568 4 16 18.87 -5.6568 5.6568 18 -5.6568 5.6568 18 -3.0616 7.3912 18.53 -3.0616 7.3912 4 16 18.48 -1.741 7.654 18 -3.0616 7.3912 18 0 8 18.25 0 8 4 16 18.48 1.741 7.654 18 0 8 18 3.0616 7.3912 18.53 3.0616 7.3912 4 16 18 3.0616 7.3912 18 5.6568 5.6568 18.87 5.6568 5.6568 18.53 3.0616 7.3912 4 16 18 5.6568 5.6568 18 7.3912 3.0616 19.39 7.3912 3.0616 18.87 5.6568 5.6568 4 16 18 7.3912 3.0616 18 8 0 20 8 0 19.39 7.3912 3.0616 4 16 20 8 0 18 8 0 18 7.3912 -3.0616 19.39 7.3912 -3.0616 4 16 19.39 7.3912 -3.0616 18 7.3912 -3.0616 18 5.6568 -5.6568 18.87 5.6568 -5.6568 4 16 18.87 5.6568 -5.6568 18 5.6568 -5.6568 18 3.0616 -7.3912 18.53 3.0616 -7.3912 4 16 18.48 1.741 -7.654 18 3.0616 -7.3912 18 0 -8 18.25 0 -8 4 16 18.48 -1.741 -7.654 18 0 -8 18 -3.0616 -7.3912 18.53 -3.0616 -7.3912 4 16 -1 30 -7.84 -3.076 38 -7.427 0 38 -8.039 0 30 -8.039 4 16 0 30 -8.039 0 38 -8.039 3.076 38 -7.427 1 30 -7.84 4 16 1 30 7.84 3.076 38 7.427 0 38 8.039 0 30 8.039 4 16 0 30 8.039 0 38 8.039 -3.076 38 7.427 -1 30 7.84 4 16 7.84 38 -1 7.427 38 -3.076 4.2426 38 -4.2426 7.84 38 1 4 16 7.84 38 1 5.5434 38 -2.2962 6 38 0 7.427 38 3.076 4 16 7.427 38 3.076 6 38 0 5.5434 38 2.2962 5.685 38 5.685 4 16 5.685 38 5.685 5.5434 38 2.2962 4.2426 38 4.2426 3.076 38 7.427 4 16 -7.84 38 1 -7.427 38 3.076 -4.2426 38 4.2426 -7.84 38 -1 4 16 -7.84 38 -1 -5.5434 38 2.2962 -6 38 0 -7.427 38 -3.076 4 16 -7.427 38 -3.076 -6 38 0 -5.5434 38 -2.2962 -5.685 38 -5.685 4 16 -5.685 38 -5.685 -5.5434 38 -2.2962 -4.2426 38 -4.2426 -3.076 38 -7.427 4 16 -3.076 38 -7.427 -4.2426 38 -4.2426 -2.2962 38 -5.5434 0 38 -8.039 4 16 0 38 -8.039 -2.2962 38 -5.5434 0 38 -6 3.076 38 -7.427 4 16 3.076 38 -7.427 0 38 -6 2.2962 38 -5.5434 5.685 38 -5.685 4 16 5.685 38 -5.685 2.2962 38 -5.5434 4.2426 38 -4.2426 7.427 38 -3.076 4 16 -7.427 38 3.076 -5.685 38 5.685 -2.2962 38 5.5434 -4.2426 38 4.2426 4 16 -2.2962 38 5.5434 -3.076 38 7.427 0 38 8.039 0 38 6 4 16 0 38 6 0 38 8.039 3.076 38 7.427 2.2962 38 5.5434 4 16 -16.74 30 -1 -7.84 38 -1 -7.84 8.86 -1 -16.74 8.86 -1 4 16 -16.74 8.86 1 -7.84 8.86 1 -7.84 38 1 -16.74 30 1 4 16 16.74 30 1 7.84 38 1 7.84 8.86 1 16.74 8.86 1 4 16 16.74 8.86 -1 7.84 8.86 -1 7.84 38 -1 16.74 30 -1 4 16 1 3.467 8.369 1 30 7.84 1 30 16.74 1 0 9.059 4 16 1 0 9.059 1 30 16.74 1 -7 16.74 1 -7 9.059 4 16 -1 30 16.74 -1 3.467 8.369 -1 0 9.059 -1 -7 16.74 4 16 -1 4.258 7.84 -1 3.467 8.369 -1 30 16.74 -1 30 7.84 4 16 1 30 -16.74 1 3.467 -8.369 1 0 -9.059 1 -7 -16.74 4 16 1 4.258 -7.84 1 3.467 -8.369 1 30 -16.74 1 30 -7.84 4 16 -1 3.467 -8.369 -1 30 -7.84 -1 30 -16.74 -1 0 -9.059 4 16 -1 0 -9.059 -1 30 -16.74 -1 -7 -16.74 -1 -7 -9.059 4 16 15.67 6.406 6.406 15.65 30 6.483 16.74 30 1 16.25 8.369 3.467 4 16 -15.67 6.406 -6.406 -15.65 30 -6.483 -16.74 30 -1 -16.25 8.369 -3.467 4 16 -16.74 30 1 -15.65 30 6.483 -15.67 6.406 6.406 -16.25 8.369 3.467 4 16 16.74 30 -1 15.65 30 -6.483 15.67 6.406 -6.406 16.25 8.369 -3.467 4 16 1 4.258 7.84 1 3.467 8.369 14.39 3.467 8.369 3.076 4.876 7.427 4 16 4.606 6.406 6.406 3.076 4.876 7.427 14.39 3.467 8.369 15.65 6.289 6.483 4 16 3.076 4.876 -7.427 15.67 6.406 -6.406 15.65 6.289 -6.483 1 4.258 -7.84 4 16 1 4.258 -7.84 15.65 6.289 -6.483 14.39 3.467 -8.369 1 3.467 -8.369 4 16 20 -10 0 19.39 -7.3912 3.0616 18.87 -5.6568 5.6568 18.48 -10 7.654 4 16 20 -10 0 18.48 -10 -7.654 18.87 -5.6568 -5.6568 19.39 -7.3912 -3.0616 4 16 7.427 8.447 3.076 16.25 8.369 3.467 16.74 8.86 1 7.84 8.86 1 4 16 7.427 8.447 -3.076 16.74 8.86 -1 16.25 8.369 -3.467 7.167 8.369 -3.467 4 16 15.65 6.289 -6.483 15.65 30 -6.483 11.98 30 -11.98 14.39 3.467 -8.369 4 16 14.39 3.467 -8.369 11.98 30 -11.98 11.98 -7 -11.98 13.93 0 -9.059 4 16 -11.98 30 -11.98 -14.39 3.467 -8.369 -13.93 0 -9.059 -11.98 -7 -11.98 4 16 -15.65 6.289 -6.483 -14.39 3.467 -8.369 -11.98 30 -11.98 -15.65 30 -6.483 4 16 6.483 -7 -15.65 1 -7 -9.059 13.93 -7 -9.059 11.98 -7 -11.98 4 16 6.483 -7 15.65 13.93 -7 9.059 1 -7 9.059 1 -7 16.74 4 16 11.98 30 11.98 14.39 3.467 8.369 13.93 0 9.059 11.98 -7 11.98 4 16 15.65 6.289 6.483 14.39 3.467 8.369 11.98 30 11.98 15.65 30 6.483 4 16 -15.65 6.289 6.483 -15.65 30 6.483 -11.98 30 11.98 -14.39 3.467 8.369 4 16 -14.39 3.467 8.369 -11.98 30 11.98 -11.98 -7 11.98 -13.93 0 9.059 4 16 -1 4.258 -7.84 -1 3.467 -8.369 -14.39 3.467 -8.369 -3.076 4.876 -7.427 4 16 -4.606 6.406 -6.406 -3.076 4.876 -7.427 -14.39 3.467 -8.369 -15.65 6.289 -6.483 4 16 -6.483 -7 -15.65 -13.93 -7 -9.059 -1 -7 -9.059 -1 -7 -16.74 4 16 -3.076 4.876 7.427 -15.67 6.406 6.406 -15.65 6.289 6.483 -1 4.258 7.84 4 16 -1 4.258 7.84 -15.65 6.289 6.483 -14.39 3.467 8.369 -1 3.467 8.369 4 16 -11.98 -7 11.98 -1 -7 16.74 -1 -7 9.059 -13.93 -7 9.059 4 16 -14.14 -10 14.14 -2 -10 8 2 -10 8 14.14 -10 14.14 4 16 2 -10 -8 14.14 -10 -14.14 14.14 -10 14.14 2 -10 8 4 16 14.14 -10 -14.14 2 -10 -8 -2 -10 -8 -14.14 -10 -14.14 4 16 -2 -10 8 -14.14 -10 14.14 -14.14 -10 -14.14 -2 -10 -8 4 16 1 30 -7.84 1 30 -17.74 -1 30 -17.74 0 30 -8.039 4 16 0 30 8.039 -1 30 17.74 1 30 17.74 1 30 7.84 4 16 19.8 30 1 18.53 3.0616 7.3912 18.87 5.6568 5.6568 20 30 0 4 16 18.53 3.0616 -7.3912 18.48 30 -7.654 19.8 30 -1 18.87 5.6568 -5.6568 4 16 18.87 5.6568 -5.6568 19.8 30 -1 20 30 0 19.39 7.3912 -3.0616 4 16 -19.8 30 -1 -18.53 3.0616 -7.3912 -18.87 5.6568 -5.6568 -20 30 0 4 16 -20 -10 0 -19.39 -7.3912 -3.0616 -18.87 -5.6568 -5.6568 -18.48 -10 -7.654 4 16 -18.53 3.0616 7.3912 -18.48 30 7.654 -19.8 30 1 -18.87 5.6568 5.6568 4 16 -18.87 5.6568 5.6568 -19.8 30 1 -20 30 0 -19.39 7.3912 3.0616 4 16 -20 -10 0 -18.48 -10 7.654 -18.87 -5.6568 5.6568 -19.39 -7.3912 3.0616 4 16 -1 0 9.059 -1 3.467 8.369 -14.39 3.467 8.369 -13.93 0 9.059 4 16 -14.39 3.467 -8.369 -1 3.467 -8.369 -1 0 -9.059 -13.93 0 -9.059 4 16 5.685 6.887 -5.685 16.25 8.369 -3.467 15.67 6.406 -6.406 4.606 6.406 -6.406 4 16 -5.685 6.887 5.685 -16.25 8.369 3.467 -15.67 6.406 6.406 -4.606 6.406 6.406 4 16 14.39 3.467 8.369 1 3.467 8.369 1 0 9.059 13.93 0 9.059 4 16 1 0 -9.059 1 3.467 -8.369 14.39 3.467 -8.369 13.93 0 -9.059 4 16 -5.685 6.887 -5.685 -15.67 6.406 -6.406 -16.25 8.369 -3.467 -7.167 8.369 -3.467 4 16 5.685 6.887 5.685 15.67 6.406 6.406 16.25 8.369 3.467 7.167 8.369 3.467 4 16 7.427 8.447 -3.076 7.427 38 -3.076 7.84 38 -1 7.84 8.86 -1 4 16 7.84 38 1 7.427 38 3.076 7.427 8.447 3.076 7.84 8.86 1 4 16 7.167 8.369 3.467 7.427 38 3.076 5.685 38 5.685 5.685 6.887 5.685 4 16 4.606 6.406 6.406 5.685 38 5.685 3.076 38 7.427 3.076 4.876 7.427 4 16 1 4.258 7.84 3.076 4.876 7.427 3.076 38 7.427 1 30 7.84 4 16 -1 30 7.84 -3.076 38 7.427 -3.076 4.876 7.427 -1 4.258 7.84 4 16 -4.606 6.406 6.406 -3.076 38 7.427 -5.685 38 5.685 -5.685 6.887 5.685 4 16 -7.167 8.369 3.467 -5.685 38 5.685 -7.427 38 3.076 -7.427 8.447 3.076 4 16 -7.427 8.447 3.076 -7.427 38 3.076 -7.84 38 1 -7.84 8.86 1 4 16 -7.84 38 -1 -7.427 38 -3.076 -7.427 8.447 -3.076 -7.84 8.86 -1 4 16 -7.167 8.369 -3.467 -7.427 38 -3.076 -5.685 38 -5.685 -5.685 6.887 -5.685 4 16 -4.606 6.406 -6.406 -5.685 38 -5.685 -3.076 38 -7.427 -3.076 4.876 -7.427 4 16 -1 4.258 -7.84 -3.076 4.876 -7.427 -3.076 38 -7.427 -1 30 -7.84 4 16 -16.74 8.86 -1 -7.84 8.86 -1 -7.427 8.447 -3.076 -16.25 8.368 -3.467 4 16 -16.25 8.368 3.467 -7.427 8.447 3.076 -7.84 8.86 1 -16.74 8.86 1 4 16 1 30 -7.84 3.076 38 -7.427 3.076 4.876 -7.427 1 4.258 -7.84 4 16 4.606 6.406 -6.406 3.076 38 -7.427 5.685 38 -5.685 5.685 6.887 -5.685 4 16 7.167 8.369 -3.467 5.685 38 -5.685 7.427 38 -3.076 7.427 8.447 -3.076 0 // Edge Lines 2 24 -20 8 0 -19.39 7.3912 3.0616 2 24 -19.39 7.3912 3.0616 -18.87 5.6568 5.6568 2 24 -18.87 5.6568 5.6568 -18.53 3.0616 7.3912 2 24 -18.53 3.0616 7.3912 -18.48 1.741 7.654 2 24 -18.48 1.741 7.654 -18.25 0 8 2 24 -18.25 0 8 -18.48 -1.741 7.654 2 24 -18.48 -1.741 7.654 -18.53 -3.0616 7.3912 2 24 -18.53 -3.0616 7.3912 -18.87 -5.6568 5.6568 2 24 -18.87 -5.6568 5.6568 -19.39 -7.3912 3.0616 2 24 -19.39 -7.3912 3.0616 -20 -8 0 2 24 -20 -8 0 -19.39 -7.3912 -3.0616 2 24 -19.39 -7.3912 -3.0616 -18.87 -5.6568 -5.6568 2 24 -18.87 -5.6568 -5.6568 -18.53 -3.0616 -7.3912 2 24 -18.53 -3.0616 -7.3912 -18.48 -1.741 -7.654 2 24 -18.48 -1.741 -7.654 -18.25 0 -8 2 24 -18.25 0 -8 -18.48 1.741 -7.654 2 24 -18.48 1.741 -7.654 -18.53 3.0616 -7.3912 2 24 -18.53 3.0616 -7.3912 -18.87 5.6568 -5.6568 2 24 -18.87 5.6568 -5.6568 -19.39 7.3912 -3.0616 2 24 -19.39 7.3912 -3.0616 -20 8 0 2 24 -2 -10 -8 -2 -10 8 2 24 2 -10 -8 2 -10 8 2 24 18.53 -3.0616 -7.3912 18.87 -5.6568 -5.6568 2 24 18.87 -5.6568 -5.6568 19.39 -7.3912 -3.0616 2 24 19.39 -7.3912 -3.0616 20 -8 0 2 24 20 -8 0 19.39 -7.3912 3.0616 2 24 19.39 -7.3912 3.0616 18.87 -5.6568 5.6568 2 24 18.87 -5.6568 5.6568 18.53 -3.0616 7.3912 2 24 18.53 -3.0616 7.3912 18.48 -1.741 7.654 2 24 18.48 -1.741 7.654 18.25 0 8 2 24 18.25 0 8 18.48 1.741 7.654 2 24 18.48 1.741 7.654 18.53 3.0616 7.3912 2 24 18.53 3.0616 7.3912 18.87 5.6568 5.6568 2 24 18.87 5.6568 5.6568 19.39 7.3912 3.0616 2 24 19.39 7.3912 3.0616 20 8 0 2 24 20 8 0 19.39 7.3912 -3.0616 2 24 19.39 7.3912 -3.0616 18.87 5.6568 -5.6568 2 24 18.87 5.6568 -5.6568 18.53 3.0616 -7.3912 2 24 18.53 3.0616 -7.3912 18.48 1.741 -7.654 2 24 18.48 1.741 -7.654 18.25 0 -8 2 24 18.25 0 -8 18.48 -1.741 -7.654 2 24 18.48 -1.741 -7.654 18.53 -3.0616 -7.3912 2 24 0 38 -8.039 -3.076 38 -7.427 2 24 -1 30 -7.84 0 30 -8.039 2 24 3.076 38 -7.427 0 38 -8.039 2 24 0 30 -8.039 1 30 -7.84 2 24 0 38 8.039 3.076 38 7.427 2 24 1 30 7.84 0 30 8.039 2 24 -3.076 38 7.427 0 38 8.039 2 24 0 30 8.039 -1 30 7.84 2 24 7.84 38 -1 7.427 38 -3.076 2 24 7.427 38 3.076 7.84 38 1 2 24 5.685 38 5.685 7.427 38 3.076 2 24 3.076 38 7.427 5.685 38 5.685 2 24 -7.84 38 1 -7.427 38 3.076 2 24 -7.427 38 -3.076 -7.84 38 -1 2 24 -5.685 38 -5.685 -7.427 38 -3.076 2 24 -3.076 38 -7.427 -5.685 38 -5.685 2 24 5.685 38 -5.685 3.076 38 -7.427 2 24 7.427 38 -3.076 5.685 38 -5.685 2 24 -7.427 38 3.076 -5.685 38 5.685 2 24 -5.685 38 5.685 -3.076 38 7.427 2 24 7.654 -10 18.478 11.9387 -10 15.6145 2 24 18.478 -10 7.654 15.6145 -10 11.9387 2 24 18.478 -10 -7.654 15.6145 -10 -11.9387 2 24 7.654 -10 -18.478 11.9387 -10 -15.6145 2 24 -7.654 -10 -18.478 -11.9387 -10 -15.6145 2 24 -18.478 -10 -7.654 -15.6145 -10 -11.9387 2 24 -18.478 -10 7.654 -15.6145 -10 11.9387 2 24 -7.654 -10 18.478 -11.9387 -10 15.6145 2 24 -19.8 30 -1 -16.74 30 -1 2 24 -7.84 8.86 -1 -7.84 38 -1 2 24 -16.74 8.86 -1 -7.84 8.86 -1 2 24 -16.74 30 -1 -16.74 8.86 -1 2 24 -7.84 8.86 1 -16.74 8.86 1 2 24 -7.84 38 1 -7.84 8.86 1 2 24 -16.74 8.86 1 -16.74 30 1 2 24 -16.74 30 1 -19.8 30 1 2 24 19.8 30 1 16.74 30 1 2 24 7.84 8.86 1 7.84 38 1 2 24 16.74 8.86 1 7.84 8.86 1 2 24 16.74 30 1 16.74 8.86 1 2 24 7.84 8.86 -1 16.74 8.86 -1 2 24 7.84 38 -1 7.84 8.86 -1 2 24 16.74 8.86 -1 16.74 30 -1 2 24 16.74 30 -1 19.8 30 -1 2 24 1 30 7.84 1 4.258 7.84 2 24 1 4.258 7.84 1 3.467 8.369 2 24 1 30 16.74 1 30 7.84 2 24 1 3.467 8.369 1 0 9.059 2 24 1 -7 9.059 1 -7 16.74 2 24 -1 0 9.059 -1 3.467 8.369 2 24 -1 -7 16.74 -1 -7 9.059 2 24 -1 3.467 8.369 -1 4.258 7.84 2 24 -1 30 7.84 -1 30 16.74 2 24 -1 4.258 7.84 -1 30 7.84 2 24 1 0 -9.059 1 3.467 -8.369 2 24 1 -7 -16.74 1 -7 -9.059 2 24 1 3.467 -8.369 1 4.258 -7.84 2 24 1 30 -7.84 1 30 -16.74 2 24 1 4.258 -7.84 1 30 -7.84 2 24 -1 30 -7.84 -1 4.258 -7.84 2 24 -1 4.258 -7.84 -1 3.467 -8.369 2 24 -1 30 -16.74 -1 30 -7.84 2 24 -1 3.467 -8.369 -1 0 -9.059 2 24 -1 -7 -9.059 -1 -7 -16.74 2 24 15.65 6.289 6.483 15.67 6.406 6.406 2 24 16.74 30 1 15.65 30 6.483 2 24 16.25 8.369 3.467 15.67 6.406 6.406 2 24 16.25 8.369 3.467 16.74 8.86 1 2 24 -15.65 6.289 -6.483 -15.67 6.406 -6.406 2 24 -16.74 30 -1 -15.65 30 -6.483 2 24 -16.25 8.369 -3.467 -15.67 6.406 -6.406 2 24 -15.67 6.406 6.406 -15.65 6.289 6.483 2 24 -15.65 30 6.483 -16.74 30 1 2 24 -16.25 8.369 3.467 -15.67 6.406 6.406 2 24 15.67 6.406 -6.406 15.65 6.289 -6.483 2 24 15.65 30 -6.483 16.74 30 -1 2 24 16.25 8.369 -3.467 15.67 6.406 -6.406 2 24 16.74 8.86 -1 16.25 8.369 -3.467 2 24 3.076 4.876 7.427 1 4.258 7.84 2 24 4.606 6.406 6.406 3.076 4.876 7.427 2 24 15.65 6.289 6.483 14.39 3.467 8.369 2 24 3.076 4.876 -7.427 4.606 6.406 -6.406 2 24 1 4.258 -7.84 3.076 4.876 -7.427 2 24 14.39 3.467 -8.369 15.65 6.289 -6.483 2 24 7.427 8.447 3.076 7.167 8.369 3.467 2 24 7.84 8.86 1 7.427 8.447 3.076 2 24 7.427 8.447 -3.076 7.84 8.86 -1 2 24 7.167 8.369 -3.467 7.427 8.447 -3.076 2 24 11.98 30 -11.98 15.65 30 -6.483 2 24 13.93 0 -9.059 14.39 3.467 -8.369 2 24 13.93 -7 -9.059 11.98 -7 -11.98 2 24 -13.93 0 -9.059 -14.39 3.467 -8.369 2 24 -11.98 -7 -11.98 -13.93 -7 -9.059 2 24 -14.39 3.467 -8.369 -15.65 6.289 -6.483 2 24 -15.65 30 -6.483 -11.98 30 -11.98 2 24 13.93 -7 9.059 11.98 -7 11.98 2 24 14.39 3.467 8.369 13.93 0 9.059 2 24 15.65 30 6.483 11.98 30 11.98 2 24 -11.98 30 11.98 -15.65 30 6.483 2 24 -15.65 6.289 6.483 -14.39 3.467 8.369 2 24 -14.39 3.467 8.369 -13.93 0 9.059 2 24 -13.93 -7 9.059 -11.98 -7 11.98 2 24 -3.076 4.876 -7.427 -1 4.258 -7.84 2 24 -4.606 6.406 -6.406 -3.076 4.876 -7.427 2 24 -3.076 4.876 7.427 -4.606 6.406 6.406 2 24 -1 4.258 7.84 -3.076 4.876 7.427 2 24 20 30 0 19.8 30 1 2 24 19.8 30 -1 20 30 0 2 24 -20 30 0 -19.8 30 -1 2 24 -19.8 30 1 -20 30 0 2 24 5.685 6.887 -5.685 7.167 8.369 -3.467 2 24 4.606 6.406 -6.406 5.685 6.887 -5.685 2 24 -5.685 6.887 5.685 -7.167 8.369 3.467 2 24 -4.606 6.406 6.406 -5.685 6.887 5.685 2 24 -5.685 6.887 -5.685 -4.606 6.406 -6.406 2 24 -7.167 8.369 -3.467 -5.685 6.887 -5.685 2 24 5.685 6.887 5.685 4.606 6.406 6.406 2 24 7.167 8.369 3.467 5.685 6.887 5.685 2 24 -16.74 8.86 -1 -16.25 8.369 -3.467 2 24 -7.167 8.369 -3.467 -7.427 8.447 -3.076 2 24 -7.84 8.86 -1 -7.427 8.447 -3.076 2 24 -16.74 8.86 1 -16.25 8.369 3.467 2 24 -7.167 8.369 3.467 -7.427 8.447 3.076 2 24 -7.84 8.86 1 -7.427 8.447 3.076 2 24 -2 -10 8 2 -10 8 2 24 -2 -10 -8 2 -10 -8 0 // Conditional Lines 5 24 -20 8 0 -18 8 0 -18 7.3912 3.0616 -18 7.3912 -3.0616 5 24 -18 7.3912 3.0616 -19.39 7.3912 3.0616 -20 8 0 -18 5.6568 5.6568 5 24 -18 5.6568 5.6568 -18.87 5.6568 5.6568 -19.39 7.3912 3.0616 -18 3.0616 7.3912 5 24 -18 3.0616 7.3912 -18.53 3.0616 7.3912 -18.87 5.6568 5.6568 -18.48 1.741 7.654 5 24 -18 0 8 -18.25 0 8 -18.48 1.741 7.654 -18.48 -1.741 7.654 5 24 -18 -3.0616 7.3912 -18.53 -3.0616 7.3912 -18.48 -1.741 7.654 -18 -5.6568 5.6568 5 24 -18 -5.6568 5.6568 -18.87 -5.6568 5.6568 -18 -3.0616 7.3912 -18 -7.3912 3.0616 5 24 -18 -7.3912 3.0616 -19.39 -7.3912 3.0616 -18 -5.6568 5.6568 -18 -8 0 5 24 -18 -8 0 -20 -8 0 -18 -7.3912 3.0616 -18 -7.3912 -3.0616 5 24 -18 -7.3912 -3.0616 -19.39 -7.3912 -3.0616 -20 -8 0 -18 -5.6568 -5.6568 5 24 -18 -5.6568 -5.6568 -18.87 -5.6568 -5.6568 -19.39 -7.3912 -3.0616 -18 -3.0616 -7.3912 5 24 -18 -3.0616 -7.3912 -18.53 -3.0616 -7.3912 -18.87 -5.6568 -5.6568 -18.48 -1.741 -7.654 5 24 -18 0 -8 -18.25 0 -8 -18.48 -1.741 -7.654 -18.48 1.741 -7.654 5 24 -18 3.0616 -7.3912 -18.53 3.0616 -7.3912 -18.48 1.741 -7.654 -18 5.6568 -5.6568 5 24 -18 5.6568 -5.6568 -18.87 5.6568 -5.6568 -18 3.0616 -7.3912 -18 7.3912 -3.0616 5 24 -18 7.3912 -3.0616 -19.39 7.3912 -3.0616 -18 5.6568 -5.6568 -18 8 0 5 24 18 -5.6568 -5.6568 18.87 -5.6568 -5.6568 18 -3.0616 -7.3912 18 -7.3912 -3.0616 5 24 18.53 -3.0616 -7.3912 18 -3.0616 -7.3912 18 -5.6568 -5.6568 18.48 -1.741 -7.654 5 24 18 -7.3912 -3.0616 19.39 -7.3912 -3.0616 18 -5.6568 -5.6568 18 -8 0 5 24 18 -8 0 20 -8 0 18 -7.3912 -3.0616 18 -7.3912 3.0616 5 24 18 -7.3912 3.0616 19.39 -7.3912 3.0616 20 -8 0 18 -5.6568 5.6568 5 24 18 -5.6568 5.6568 18.87 -5.6568 5.6568 19.39 -7.3912 3.0616 18 -3.0616 7.3912 5 24 18 -3.0616 7.3912 18.53 -3.0616 7.3912 18.87 -5.6568 5.6568 18.48 -1.741 7.654 5 24 18 0 8 18.25 0 8 18.48 -1.741 7.654 18.48 1.741 7.654 5 24 18 3.0616 7.3912 18.53 3.0616 7.3912 18.48 1.741 7.654 18 5.6568 5.6568 5 24 18 5.6568 5.6568 18.87 5.6568 5.6568 18 3.0616 7.3912 18 7.3912 3.0616 5 24 18 7.3912 3.0616 19.39 7.3912 3.0616 18 5.6568 5.6568 18 8 0 5 24 18 8 0 20 8 0 18 7.3912 3.0616 18 7.3912 -3.0616 5 24 18 7.3912 -3.0616 19.39 7.3912 -3.0616 20 8 0 18 5.6568 -5.6568 5 24 18 5.6568 -5.6568 18.87 5.6568 -5.6568 19.39 7.3912 -3.0616 18 3.0616 -7.3912 5 24 18 3.0616 -7.3912 18.53 3.0616 -7.3912 18.87 5.6568 -5.6568 18.48 1.741 -7.654 5 24 18 0 -8 18.25 0 -8 18.48 1.741 -7.654 18.48 -1.741 -7.654 5 24 0 38 -8.039 0 30 -8.039 -1 30 -7.84 3.076 38 -7.427 5 24 0 38 8.039 0 30 8.039 1 30 7.84 -3.076 38 7.427 5 24 14.39 3.467 8.369 1 3.467 8.369 1 0 9.059 3.076 4.876 7.427 5 24 15.67 6.406 6.406 4.606 6.406 6.406 14.39 3.467 8.369 5.685 6.887 5.685 5 24 15.67 6.406 -6.406 4.606 6.406 -6.406 5.685 6.887 -5.685 3.076 4.876 -7.427 5 24 1 3.467 -8.369 14.39 3.467 -8.369 13.93 0 -9.059 1 4.258 -7.84 5 24 18.48 30 7.654 18.48 1.741 7.654 18.53 3.0616 7.3912 14.14 30 14.14 5 24 20 -8 0 20 -10 0 19.39 -7.3912 -3.0616 19.39 -7.3912 3.0616 5 24 18.48 -1.741 7.654 18.48 -10 7.654 18.53 -3.0616 7.3912 14.14 30 14.14 5 24 18.48 -1.741 -7.654 18.48 -10 -7.654 14.14 -10 -14.14 18.53 -3.0616 -7.3912 5 24 7.167 8.369 3.467 16.25 8.369 3.467 7.427 8.447 3.076 5.685 6.887 5.685 5 24 16.25 8.369 -3.467 7.167 8.369 -3.467 7.427 8.447 -3.076 5.685 6.887 -5.685 5 24 15.65 6.289 -6.483 15.65 30 -6.483 16.73 30 -1 11.98 30 -11.98 5 24 11.98 30 -11.98 11.98 -7 -11.98 15.65 30 -6.483 6.483 30 -15.65 5 24 6.483 30 -15.65 6.483 -7 -15.65 11.98 30 -11.98 1 30 -16.74 5 24 -15.65 6.289 -6.483 -15.65 30 -6.483 -16.73 30 -1 -11.98 30 -11.98 5 24 -11.98 30 -11.98 -11.98 -7 -11.98 -15.65 30 -6.483 -6.483 30 -15.65 5 24 -6.483 30 -15.65 -6.483 -7 -15.65 -11.98 30 -11.98 -1 30 -16.74 5 24 15.65 6.289 6.483 15.65 30 6.483 16.73 30 1 11.98 30 11.98 5 24 11.98 30 11.98 11.98 -7 11.98 15.65 30 6.483 6.483 30 15.65 5 24 6.483 30 15.65 6.483 -7 15.65 11.98 30 11.98 1 30 16.74 5 24 -15.65 6.289 6.483 -15.65 30 6.483 -16.73 30 1 -11.98 30 11.98 5 24 -11.98 30 11.98 -11.98 -7 11.98 -15.65 30 6.483 -6.483 30 15.65 5 24 -6.483 30 15.65 -6.483 -7 15.65 -11.98 30 11.98 -1 30 16.74 5 24 -14.39 3.467 -8.369 -1 3.467 -8.369 -1 0 -9.059 -3.076 4.876 -7.427 5 24 -15.67 6.406 -6.406 -4.606 6.406 -6.406 -14.39 3.467 -8.369 -5.685 6.887 -5.685 5 24 -4.606 6.406 6.406 -15.67 6.406 6.406 -3.076 4.876 7.427 -5.685 6.887 5.685 5 24 -1 3.467 8.369 -14.39 3.467 8.369 -13.93 0 9.059 -1 4.258 7.84 5 24 20 30 0 20 8 0 19.39 7.3912 -3.0616 19.39 7.3912 3.0616 5 24 18.48 1.741 -7.654 18.48 30 -7.654 18.53 3.0616 -7.3912 14.14 -10 -14.14 5 24 -18.48 30 -7.654 -18.48 1.741 -7.654 -18.53 3.0616 -7.3912 -14.14 30 -14.14 5 24 -18.48 -1.741 -7.654 -18.48 -10 -7.654 -18.53 -3.0616 -7.3912 -14.14 30 -14.14 5 24 -20 30 0 -20 8 0 -19.39 7.3912 3.0616 -19.39 7.3912 -3.0616 5 24 -20 -8 0 -20 -10 0 -19.39 -7.3912 3.0616 -19.39 -7.3912 -3.0616 5 24 -18.48 30 7.654 -18.48 1.741 7.654 -14.14 -10 14.14 -18.53 3.0616 7.3912 5 24 -18.48 -1.741 7.654 -18.48 -10 7.654 -14.14 -10 14.14 -18.53 -3.0616 7.3912 5 24 -13.93 0 9.059 -1 0 9.059 -1 3.467 8.369 -13.93 -7 9.059 5 24 -1 0 -9.059 -13.93 0 -9.059 -14.39 3.467 -8.369 -1 -7 -9.059 5 24 1 0 9.059 13.93 0 9.059 14.39 3.467 8.369 1 -7 9.059 5 24 13.93 0 -9.059 1 0 -9.059 1 3.467 -8.369 13.93 -7 -9.059 5 24 7.427 8.447 -3.076 7.427 38 -3.076 7.84 38 -1 7.167 8.369 -3.467 5 24 7.427 38 3.076 7.427 8.447 3.076 7.84 8.86 1 7.167 8.369 3.467 5 24 5.685 38 5.685 5.685 6.887 5.685 7.167 8.369 3.467 4.606 6.406 6.406 5 24 3.076 38 7.427 3.076 4.876 7.427 4.606 6.406 6.406 1 30 7.84 5 24 -3.076 38 7.427 -3.076 4.876 7.427 -1 4.258 7.84 -4.606 6.406 6.406 5 24 -5.685 38 5.685 -5.685 6.887 5.685 -4.606 6.406 6.406 -7.167 8.369 3.467 5 24 -7.427 38 3.076 -7.427 8.447 3.076 -7.167 8.369 3.467 -7.84 38 1 5 24 -7.427 38 -3.076 -7.427 8.447 -3.076 -7.84 8.86 -1 -7.167 8.369 -3.467 5 24 -5.685 38 -5.685 -5.685 6.887 -5.685 -7.167 8.369 -3.467 -4.606 6.406 -6.406 5 24 -3.076 38 -7.427 -3.076 4.876 -7.427 -4.606 6.406 -6.406 -1 30 -7.84 5 24 -16.25 8.369 -3.467 -7.167 8.369 -3.467 -7.427 8.447 -3.076 -5.685 6.887 -5.685 5 24 -16.25 8.369 3.467 -7.167 8.369 3.467 -7.427 8.447 3.076 -5.685 6.887 5.685 5 24 3.076 38 -7.427 3.076 4.876 -7.427 1 4.258 -7.84 4.606 6.406 -6.406 5 24 5.685 38 -5.685 5.685 6.887 -5.685 4.606 6.406 -6.406 7.167 8.369 -3.467
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 28: 1 16 0 -10 0 18.4776 0 7.65367 0 -1 0 -7.65367 0 18.4776 1-8edge.dat
    Line 29: 1 16 0 -10 0 -7.65367 0 18.4776 0 -1 0 -18.4776 0 -7.65367 1-8edge.dat
    Line 30: 1 16 0 -10 0 -18.4776 0 -7.65367 0 -1 0 7.65367 0 -18.4776 1-8edge.dat
    Line 31: 1 16 0 -10 0 7.65367 0 -18.4776 0 -1 0 18.4776 0 7.65367 1-8edge.dat
Current Votes:

None

Official parents and subparts
Part Events:
Chris Böhnke [KnightOfTarenta]
Part Header Editor
initially submitted the part.
2026-05-07 18:55:40
*made the back of d-version patternable for 2022 R2-D2 torso
*used common geometry for a and d version

Explanation on versions:
a - no axle connector in central tube, used around ca. 1999-2001 (some 2002/2003 sets might have had leftover stock). Hole goes through entire part.
b - axle connector at 45 degree (not yet in LDraw), used in 2002 only?
c - axle connector at 90 degree, used since 2003 (not in LDraw)
d - same as c, but with minor difference in axle connector design, not sure when this started appearing, but it seems to be the current version

Bricklink has a good comparison image.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2026-05-07 20:47:18
why the shifted quads around the center axlehole? some result in quite bad triangulation
(two extremely thin triangles)
Chris Böhnke [KnightOfTarenta]
Part Header Editor
made the following comment.
2026-05-07 22:27:12
Most of this was copy/paste from the original. I didn't check for anything beyond LDPE error messages.

Anything else that needs fixing?
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2026-05-07 22:57:11
the two bottom rigns overlap each other and the two flat supports (maybe just 1-8 prims outside, or not even prims because of the pattern?)
