Unofficial File parts/3815bpxd.dat
Part Attributes:
Base Part: 3815b.dat
File Header:

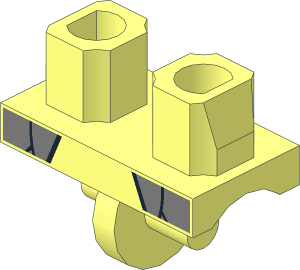

0 Minifig Hips with Silver Armour Sides Pattern
0 Name: 3815bpxd.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Armor, Foot Clan, Nickelodeon, Oroku Saki, Set 79101, Set 79122
0 !KEYWORDS Shredder, Teenage Mutant Ninja Turtles, TMNT
Show contents
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3815bs01.dat
1 16 -2 12 0 0 4 0 8.08395 0 -3.34848 -3.34848 0 -8.08395 5-16cyli.dat
0 // Pattern
0 // Colour 0 Black
3 0 -12.424 3.722 -10 -12.326 4.155 -10 -11.893 3.86 -10
3 0 -12.183 4.783 -10 -12.02 5.5 -10 -11.499 5.5 -10
3 0 12.424 3.722 -10 11.893 3.86 -10 12.326 4.155 -10
3 0 12.183 4.783 -10 11.499 5.5 -10 12.02 5.5 -10
4 0 -11.893 3.86 -10 -12.094 2.186 -10 -12.582 2.381 -10 -12.424 3.722 -10
4 0 -12.582 2.381 -10 -12.094 2.186 -10 -12.099 .5 -10 -12.6 .5 -10
4 0 -9.523 5.5 -10 -8.652 5.5 -10 -6.49 .5 -10 -7.362 .5 -10
4 0 -13.418 5.5 -10 -12.8 5.5 -10 -12.183 4.783 -10 -12.326 4.155 -10
4 0 -11.893 3.86 -10 -12.326 4.155 -10 -12.183 4.783 -10 -11.499 5.5 -10
4 0 12.582 2.381 -10 12.094 2.186 -10 11.893 3.86 -10 12.424 3.722 -10
4 0 12.099 .5 -10 12.094 2.186 -10 12.582 2.381 -10 12.6 .5 -10
4 0 6.49 .5 -10 8.652 5.5 -10 9.523 5.5 -10 7.362 .5 -10
4 0 12.183 4.783 -10 12.8 5.5 -10 13.418 5.5 -10 12.326 4.155 -10
4 0 12.183 4.783 -10 12.326 4.155 -10 11.893 3.86 -10 11.499 5.5 -10
0 // Colour 16 Main Colour
3 16 -13.418 5.5 -10 -17.5 5.5 -10 -18 6 -10
3 16 -12.8 5.5 -10 -13.418 5.5 -10 -18 6 -10
3 16 -12.02 5.5 -10 -12.8 5.5 -10 -18 6 -10
3 16 -11.499 5.5 -10 -12.02 5.5 -10 -18 6 -10
3 16 -9.523 5.5 -10 -11.499 5.5 -10 -18 6 -10
3 16 -18 0 -10 -12.099 .5 -10 -7.362 .5 -10
3 16 -18 0 -10 -12.6 .5 -10 -12.099 .5 -10
3 16 -18 0 -10 -17.5 .5 -10 -12.6 .5 -10
3 16 17.5 5.5 -10 13.418 5.5 -10 18 6 -10
3 16 13.418 5.5 -10 12.8 5.5 -10 18 6 -10
3 16 12.8 5.5 -10 12.02 5.5 -10 18 6 -10
3 16 12.02 5.5 -10 11.499 5.5 -10 18 6 -10
3 16 11.499 5.5 -10 9.523 5.5 -10 18 6 -10
3 16 18 0 -10 7.362 .5 -10 12.099 .5 -10
3 16 18 0 -10 12.099 .5 -10 12.6 .5 -10
3 16 18 0 -10 12.6 .5 -10 17.5 .5 -10
4 16 -17.5 5.5 -10 -17.5 .5 -10 -18 0 -10 -18 6 -10
4 16 -8.652 5.5 -10 -9.523 5.5 -10 -18 6 -10 0 6 -10
4 16 -6.49 .5 -10 -8.652 5.5 -10 0 6 -10 0 0 -10
4 16 -18 0 -10 -7.362 .5 -10 -6.49 .5 -10 0 0 -10
4 16 18 0 -10 17.5 .5 -10 17.5 5.5 -10 18 6 -10
4 16 18 6 -10 9.523 5.5 -10 8.652 5.5 -10 0 6 -10
4 16 0 6 -10 8.652 5.5 -10 6.49 .5 -10 0 0 -10
4 16 6.49 .5 -10 7.362 .5 -10 18 0 -10 0 0 -10
0 // Colour 80 Silver
3 80 -12.183 4.783 -10 -12.8 5.5 -10 -12.02 5.5 -10
3 80 -12.6 .5 -10 -17.5 .5 -10 -12.582 2.381 -10
3 80 12.183 4.783 -10 12.02 5.5 -10 12.8 5.5 -10
3 80 17.5 .5 -10 12.6 .5 -10 12.582 2.381 -10
4 80 -7.362 .5 -10 -12.099 .5 -10 -12.094 2.186 -10 -11.893 3.86 -10
4 80 -9.523 5.5 -10 -7.362 .5 -10 -11.893 3.86 -10 -11.499 5.5 -10
4 80 -13.418 5.5 -10 -12.326 4.155 -10 -12.424 3.722 -10 -17.5 5.5 -10
4 80 -17.5 5.5 -10 -12.424 3.722 -10 -12.582 2.381 -10 -17.5 .5 -10
4 80 12.094 2.186 -10 12.099 .5 -10 7.362 .5 -10 11.893 3.86 -10
4 80 11.893 3.86 -10 7.362 .5 -10 9.523 5.5 -10 11.499 5.5 -10
4 80 12.424 3.722 -10 12.326 4.155 -10 13.418 5.5 -10 17.5 5.5 -10
4 80 12.582 2.381 -10 12.424 3.722 -10 17.5 5.5 -10 17.5 .5 -10
Status:
Needs 2 More Votes (N)
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 14: 1 16 -2 12 0 0 4 0 8.08395 0 -3.34848 -3.34848 0 -8.08395 5-16cyli.dat
- Ensure correct Minifig category
Current Votes:
None
Official parents and subparts
Part Events:
Most database consider the Dark Red and Black versions to be different, but the only difference are the black outlines. However those lines (on the black version) are faintly visible on real parts, present in renders and would barely make a difference in LDraw, so I merged both versions into this part.
