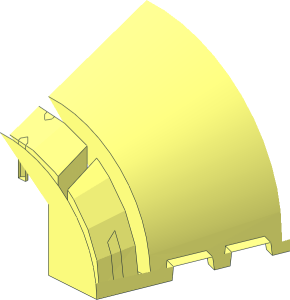

~Windscreen 6 x 7 x 2.667 without Patternable Surfaces - Front Half

File Header:

0 ~Windscreen  6 x  7 x  2.667 without Patternable Surfaces - Front Half
0 Name: s\92832s03.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2026-05-10 [Philo] Subparted from Gerald Lasser 92832s02.dat

Show contents

0 // Small Semi Circle
4 16 37.117 0 -6 40 0 -10 20 0 -10 24 0 -6
4 16 24 0 -6 20 0 -10 20 0 10 24 0 6
4 16 20 0 10 42.4503 0 10 41.125 0 6.0242 24 0 6
3 16 40 0 -10 37.117 0 -6 41.125 0 6.0242
2 24 41.125 0 6.0242 24 0 6
2 24 42.4503 0 10 20 0 10
2 24 24 0 -6 37.117 0 -6
2 24 40 0 -10 20 0 -10
2 24 24 0 -6 24 0 6
2 24 20 0 -10 20 0 10
2 24 37.117 0 -6 41.125 0 6.0242

4 16 20 0 10 20 0 -10 20 -24 -6.025 20 -24 6.025
3 16 20 -24 6.025 20 -24 10 20 0 10
3 16 20 0 -10 20 -24 -10 20 -24 -6.025
3 16 20 -37.15 6.025 20 -31.7074 -6 18.6667 -32.5972 -6
4 16 0 -42.3639 6.025 10.6873 -40.9557 6.025 9.6619 -36.3268 -6 0 -37.5998 -6
4 16 9.6619 -36.3268 -6 10.6873 -40.9557 6.025 20 -37.15 6.025 18.6667 -32.5972 -6
4 16 20 -24 6.025 20 -37.15 6.025 10.6873 -40.9557 6.025 0 -42.3639 6.025
4 16 20 -37.15 6.025 20 -24 6.025 20 -24 -6.025 20 -31.7074 -6

3 16 18.6667 -32.5972 -6 20 -31.7074 -6 20 -24 -6.025
4 16 18.6667 -32.5972 -6 20 -24 -6.025 0 -37.5998 -6 9.6619 -36.3268 -6
2 24 20 -37.15 6.025 20 -31.7074 -6
2 24 0 -42.3639 6.025 10.6873 -40.9557 6.025
2 24 10.6873 -40.9557 6.025 20 -37.15 6.025

4 16 23.9519 -34.6251 6.024 23.9503 -28.8141 -6 24 0 -6 24 0 6
3 16 23.9519 -34.6251 6.024 25.1407 -33.8319 6.0242 23.9503 -28.8141 -6
3 16 41.2956 -1.0682 6.0247 41.125 0 6.0242 37.117 0 -6
3 16 39.8875 -11.7555 6.025 41.2956 -1.0682 6.0247 37.117 0 -6
3 16 37.117 0 -6 36.0603 -9.9283 -6 39.8875 -11.7555 6.025
5 24 37.117 0 -6 39.8875 -11.7555 6.025 36.0603 -9.9283 -6 41.2956 -1.0682 6.0247
4 16 24 0 -6 23.9503 -28.8141 -6 26.3984 -26.6649 -6 32.3307 -18.9332 -6
4 16 24 0 -6 32.3307 -18.9332 -6 36.0603 -9.9283 -6 37.117 0 -6
4 16 36.0603 -9.9283 -6 32.3307 -18.9332 -6 35.7614 -21.7155 6.0225 39.8875 -11.7555 6.025
4 16 29.2 -30.2682 6.0243 35.7614 -21.7155 6.0225 32.3307 -18.9332 -6 26.3984 -26.6649 -6
4 16 25.1407 -33.8319 6.0242 29.2 -30.2682 6.0243 26.3984 -26.6649 -6 23.9503 -28.8141 -6
4 16 29.2 -30.2682 6.0243 25.1407 -33.8319 6.0242 23.9519 -34.6251 6.024 24 0 6
4 16 35.7614 -21.7155 6.0225 29.2 -30.2682 6.0243 24 0 6 39.8875 -11.7555 6.025
4 16 39.8875 -11.7555 6.025 24 0 6 41.125 0 6.0242 41.2956 -1.0682 6.0247
2 24 26.3984 -26.6649 -6 32.3307 -18.9332 -6
2 24 32.3307 -18.9332 -6 36.0603 -9.9283 -6
2 24 36.0603 -9.9283 -6 37.117 0 -6
2 24 23.9503 -28.8141 -6 26.3984 -26.6649 -6
2 24 25.1407 -33.8319 6.0242 23.9519 -34.6251 6.024
2 24 25.1407 -33.8319 6.0242 29.2 -30.2682 6.0243
2 24 35.7614 -21.7155 6.0225 29.2 -30.2682 6.0243
2 24 23.9503 -28.8141 -6 23.9519 -34.6251 6.024
2 24 35.7614 -21.7155 6.0225 39.8875 -11.7555 6.025
2 24 39.8875 -11.7555 6.025 41.2956 -1.0682 6.0247
2 24 41.125 0 6.0242 41.2956 -1.0682 6.0247

2 24 18.6667 -32.5972 -6 9.6619 -36.3268 -6
2 24 20 0 -10 20 -24 -10
2 24 20 -37.15 6.025 20 -24 6.025
2 24 23.9503 -28.8141 -6 24 0 -6
2 24 20 -24 10 20 0 10
2 24 9.6619 -36.3268 -6 0 -37.5998 -6
2 24 24 0 6 23.9519 -34.6251 6.024
2 24 20 -31.7074 -6 18.6667 -32.5972 -6
2 24 20 -31.7074 -6 20 -24 -6.025

5 24 9.6619 -36.3268 -6 20 -37.15 6.025 10.6873 -40.9557 6.025 18.6667 -32.5972 -6
5 24 36.0603 -9.9283 -6 41.2956 -1.0682 6.0247 39.8875 -11.7555 6.025 37.117 0 -6
5 24 26.3984 -26.6649 -6 29.2 -30.2682 6.0243 23.9503 -28.8141 -6 35.7614 -21.7155 6.0225
5 24 37.117 0 -6 41.2956 -1.0682 6.0247 41.125 0 6.0242 36.0603 -9.9283 -6
5 24 10.6873 -40.9557 6.025 9.6619 -36.3268 -6 20 -37.15 6.025 0 -37.5998 -6
5 24 25.1407 -33.8319 6.0242 23.9503 -28.8141 -6 29.2 -30.2682 6.0243 23.9519 -34.6251 6.024
5 24 32.3307 -18.9332 -6 35.7614 -21.7155 6.0225 39.8875 -11.7555 6.025 26.3984 -26.6649 -6
5 24 18.6667 -32.5972 -6 20 -37.15 6.025 9.6619 -36.3268 -6 20 -31.7074 -6
5 24 36.0603 -9.9283 -6 39.8875 -11.7555 6.025 32.3307 -18.9332 -6 41.2956 -1.0682 6.0247

4 16 36 -.5 1.5 39.0729 -.5 -.3715 38.6701 -.5 -1.5 36 -.5 -1.5
4 16 39.7233 -.6663 1.5 39.6967 -.5 1.5 36 -.5 1.5 36 -16.9769 1.5
2 24 36 -.5 1.5 36 -16.9769 1.5
2 24 36 -.5 1.5 39.6967 -.5 1.5
2 24 38.6701 -.5 -1.5 36 -.5 -1.5
2 24 36 -.5 -1.5 36 -.5 1.5
2 24 36 -.5 -1.5 36 -14.2157 -1.5
3 16 39.6967 -.5 1.5 39.0729 -.5 -.3715 36 -.5 1.5
4 16 36 -.5 1.5 36 -.5 -1.5 36 -14.2157 -1.5 36 -16.9769 1.5
3 16 38.4473 -11.0679 1.5 39.7233 -.6663 1.5 36 -16.9769 1.5
4 16 36 -.5 -1.5 38.6701 -.5 -1.5 37.4925 -10.6121 -1.5 36 -14.2157 -1.5
2 24 36 -14.2157 -1.5 36 -16.9769 1.5
2 24 36 -14.2157 -1.5 37.4925 -10.6121 -1.5
2 24 38.4473 -11.0679 1.5 36 -16.9769 1.5
2 24 39.0729 -.5 -.3715 38.6701 -.5 -1.5
2 24 37.4925 -10.6121 -1.5 38.6701 -.5 -1.5
2 24 38.4473 -11.0679 1.5 39.7233 -.6663 1.5
2 24 39.6967 -.5 1.5 39.0729 -.5 -.3715
2 24 39.7233 -.6663 1.5 39.6967 -.5 1.5

0 // Ridges
2 24 3.5 -37.5348 -5 5 -37.9315 -3.5
2 24 5 -37.9315 -3.5 6.5 -37.1396 -5
2 24 6.5 -36.7434 -6 6.5 -37.1396 -5
2 24 3.5 -37.1387 -6 3.5 -37.5348 -5
2 24 5 -40.7047 3.5 6.5 -41.1014 5
2 24 5 -40.7047 3.5 3.5 -41.4966 5
2 24 3.5 -41.4966 5 3.5 -41.8928 6
2 24 6.5 -41.1014 5 6.5 -41.4975 6
3 16 5 -24.5 3.5 3.5 -24.5 5 6.5 -24.5 5
4 16 3.5 -24.5 5 5 -24.5 3.5 5 -40.7047 3.5 3.5 -41.4966 5
4 16 5 -24.5 3.5 6.5 -24.5 5 6.5 -41.1014 5 5 -40.7047 3.5
4 16 6.5 -24.5 6 6.5 -41.4975 6 6.5 -41.1014 5 6.5 -24.5 5
1 16 5 -24.5 5.5 -1.5 0 0 0 -1 0 0 0 .5 rect3.dat
4 16 3.5 -24.5 5 3.5 -41.4966 5 3.5 -41.8928 6 3.5 -24.5 6
3 16 5 -24.5 -3.5 6.5 -24.5 -5 3.5 -24.5 -5
4 16 6.5 -24.5 -5 5 -24.5 -3.5 5 -37.9315 -3.5 6.5 -37.1396 -5
4 16 5 -24.5 -3.5 3.5 -24.5 -5 3.5 -37.5348 -5 5 -37.9315 -3.5
4 16 3.5 -24.5 -6 3.5 -37.1387 -6 3.5 -37.5348 -5 3.5 -24.5 -5
1 16 5 -24.5 -5.5 1.5 0 0 0 -1 0 0 0 -.5 rect3.dat
4 16 6.5 -24.5 -5 6.5 -37.1396 -5 6.5 -36.7434 -6 6.5 -24.5 -6
2 24 6.5 -36.7434 -6 6.5 -24.5 -6
2 24 6.5 -37.1396 -5 6.5 -24.5 -5
2 24 5 -24.5 -3.5 6.5 -24.5 -5
2 24 5 -24.5 -3.5 5 -37.9315 -3.5
2 24 3.5 -24.5 -5 5 -24.5 -3.5
2 24 3.5 -37.5348 -5 3.5 -24.5 -5
2 24 3.5 -37.1387 -6 3.5 -24.5 -6
2 24 6.5 -41.4975 6 6.5 -24.5 6
2 24 3.5 -41.8928 6 3.5 -24.5 6
2 24 3.5 -24.5 5 5 -24.5 3.5
2 24 5 -24.5 3.5 6.5 -24.5 5
2 24 3.5 -24.5 5 3.5 -41.4966 5
2 24 5 -40.7047 3.5 5 -24.5 3.5
2 24 6.5 -24.5 5 6.5 -41.1014 5

0 // Side
4 16 58.1789 0 44.5469 54.3944 0 45.833 56 0 50.65 60 0 50
2 24 54.3944 0 45.833 56 0 50.65
2 24 60 0 50 58.1789 0 44.5469
2 24 58.1789 0 44.5469 54.3944 0 45.833
4 16 50.0305 0 32.7411 53.815 0 31.455 52.1757 0 26.5271 48.3783 0 27.7844
2 24 53.815 0 31.455 50.0305 0 32.7411
2 24 52.1757 0 26.5271 48.3783 0 27.7844
2 24 52.1757 0 26.5271 53.815 0 31.455
2 24 50.0305 0 32.7411 48.3783 0 27.7844
3 16 42.4503 0 10 44.0144 0 14.6925 47.8117 0 13.4352
4 16 41.125 0 6.0242 42.4503 0 10 47.8117 0 13.4352 40 0 -10
2 24 47.8151 0 13.4341 44.0144 0 14.6925
2 24 42.4503 0 10 44.0144 0 14.6925
2 24 47.8117 0 13.4352 40 0 -10

4 16 54.2364 -3.7438 45.4424 56 -4 50.65 56 0 50.65 54.3944 0 45.833
4 16 48.1671 -2.862 27.5209 50.0551 -3.1363 33.0959 50.0305 0 32.7411 48.3783 0 27.7844
3 16 55.5184 -11.308 50.65 54.1645 -4.5 45.378 50.0229 -4.5 33.2647
3 16 55.5184 -11.308 50.65 50.0229 -4.5 33.2647 48.0115 -4.5 27.3816
3 16 55.5184 -11.308 50.65 48.0115 -4.5 27.3816 41.6388 -7.481 10
3 16 41.6388 -7.481 10 48.0115 -4.5 27.3816 43.8207 -4.5 15.2851
4 16 54.2364 -3.7438 45.4424 54.1645 -4.5 45.378 55.5184 -11.308 50.65 56 -4 50.65
4 16 48.0115 -4.5 27.3816 50.0229 -4.5 33.2647 50.0551 -3.1363 33.0959 48.1671 -2.862 27.5209
3 16 42.4503 0 10 41.6388 -7.481 10 43.8207 -4.5 15.2851
3 16 43.8207 -4.5 15.2851 44.0144 0 14.6925 42.4503 0 10

2 24 50.0551 -3.1363 33.0959 50.0305 0 32.7411
2 24 54.3944 0 45.833 54.2364 -3.7438 45.4424
2 24 50.0551 -3.1363 33.0959 50.0229 -4.5 33.2647
2 24 50.0229 -4.5 33.2647 54.1645 -4.5 45.378
2 24 54.2364 -3.7438 45.4424 54.1645 -4.5 45.378
2 24 44.0144 0 14.6925 43.8207 -4.5 15.2851
2 24 43.8207 -4.5 15.2851 48.0115 -4.5 27.3816
2 24 48.1671 -2.862 27.5209 48.3783 0 27.7844
2 24 48.1671 -2.862 27.5209 48.0115 -4.5 27.3816

4 16 60 -4 50 58.0502 -3.6623 44.1609 58.1789 0 44.5469 60 0 50
4 16 53.815 0 31.455 53.9146 -2.8342 31.7538 52.0907 -2.4181 26.2722 52.1757 0 26.5271
4 16 52.0907 -2.4181 26.2722 53.9146 -2.8342 31.7538 53.8753 -4.5 31.9624 51.8933 -4.5 26.094
4 16 47.867 -1.5734 13.6011 47.7976 -4.5 13.9667 39.656 -5.22 -10 40 0 -10
3 16 47.8117 0 13.4352 47.867 -1.5734 13.6011 40 0 -10

2 24 58.0502 -3.6623 44.1609 58.1789 0 44.5469
2 24 57.9709 -4.5 44.0894 53.8753 -4.5 31.9624
2 24 57.9709 -4.5 44.0894 58.0502 -3.6623 44.1609
2 24 53.8753 -4.5 31.9624 53.9146 -2.8342 31.7538
2 24 53.9146 -2.8342 31.7538 53.815 0 31.455
2 24 47.8117 0 13.4352 47.867 -1.5734 13.6011
2 24 52.0907 -2.4181 26.2722 52.1757 0 26.5271
2 24 47.867 -1.5734 13.6011 47.7976 -4.5 13.9667
2 24 51.8933 -4.5 26.094 47.7976 -4.5 13.9667
2 24 51.8933 -4.5 26.094 52.0907 -2.4181 26.2722

4 16 54.2364 -3.7438 45.4424 54.3944 0 45.833 58.1789 0 44.5469 58.0502 -3.6623 44.1609
4 16 57.9709 -4.5 44.0894 54.1645 -4.5 45.378 54.2364 -3.7438 45.4424 58.0502 -3.6623 44.1609
4 16 50.0229 -4.5 33.2647 54.1645 -4.5 45.378 57.9709 -4.5 44.0894 53.8753 -4.5 31.9624
4 16 50.0551 -3.1363 33.0959 50.0229 -4.5 33.2647 53.8753 -4.5 31.9624 53.9146 -2.8342 31.7538
4 16 53.815 0 31.455 50.0305 0 32.7411 50.0551 -3.1363 33.0959 53.9146 -2.8342 31.7538
4 16 52.0907 -2.4181 26.2722 48.1671 -2.862 27.5209 48.3783 0 27.7844 52.1757 0 26.5271
4 16 51.8933 -4.5 26.094 48.0115 -4.5 27.3816 48.1671 -2.862 27.5209 52.0907 -2.4181 26.2722
4 16 43.8207 -4.5 15.2851 48.0115 -4.5 27.3816 51.8933 -4.5 26.094 47.7976 -4.5 13.9667
4 16 44.0144 0 14.6925 43.8207 -4.5 15.2851 47.7976 -4.5 13.9667 47.867 -1.5734 13.6011
3 16 47.8117 0 13.4352 44.0144 0 14.6925 47.867 -1.5734 13.6011
2 24 44.0144 0 14.6925 47.8117 0 13.4352
2 24 51.8933 -4.5 26.094 48.0115 -4.5 27.3816
2 24 53.8753 -4.5 31.9624 50.0229 -4.5 33.2647
2 24 57.9709 -4.5 44.0894 54.1645 -4.5 45.378
2 24 47.7976 -4.5 13.9667 43.8207 -4.5 15.2851

5 24 54.2364 -3.7438 45.4424 56 0 50.65 56 -4 50.65 54.3944 0 45.833
5 24 48.1671 -2.862 27.5209 50.0305 0 32.7411 50.0551 -3.1363 33.0959 48.3783 0 27.7844
5 24 48.1671 -2.862 27.5209 50.0551 -3.1363 33.0959 48.0115 -4.5 27.3816 50.0305 0 32.7411
5 24 54.2364 -3.7438 45.4424 56 -4 50.65 54.1645 -4.5 45.378 56 0 50.65
5 24 43.8207 -4.5 15.2851 42.4503 0 10 44.0144 0 14.6925 41.6388 -7.481 10
5 24 48.0115 -4.5 27.3816 55.5184 -11.308 50.65 41.6388 -7.481 10 50.0229 -4.5 33.2647
5 24 60 -4 50 58.0502 -3.6623 44.1609 59.484 -11.83 50 58.1789 0 44.5469
5 24 43.8207 -4.5 15.2851 41.6388 -7.481 10 48.0115 -4.5 27.3816 42.4503 0 10
5 24 53.9146 -2.8342 31.7538 52.0907 -2.4181 26.2722 53.8753 -4.5 31.9624 52.1757 0 26.5271
5 24 47.867 -1.5734 13.6011 40 0 -10 47.7976 -4.5 13.9667 47.8117 0 13.4352
5 24 48.0115 -4.5 27.3816 41.6388 -7.481 10 43.8207 -4.5 15.2851 55.5184 -11.308 50.65

0 BFC INVERTNEXT
1 16 0 -4 50.65 0 0 14 -14 2 0 0 -40.65 0 48\11-48con3.dat
1 16 0 -2 10 0 0 42 -42 0 0 0 -1 0 48\11-48edge.dat
1 16 0 -2 10 0 0 42 -42 0 0 0 -1 0 48\11-48chrd.dat
2 24 41.6388 -7.481 10 42.4503 0 10

3 16 42.4503 0 10 20 0 10 41.6388 -7.481 10
3 16 20 -24 10 41.6388 -7.481 10 20 0 10
3 16 41.6388 -7.481 10 20 -24 10 0 -44 10

0 // Front
1 16 0 0 -10 40 0 0 0 0 -40 0 1 0 48\1-8chrd.dat
1 16 0 0 -10 0 0 40 -40 0 0 0 1 0 48\1-8chrd.dat
4 16 28.284 -28.284 -10 20 -24 -10 20 0 -10 40 0 -10
3 16 20 -24 -10 28.284 -28.284 -10 0 -40 -10

1 16 0 0 -10 0 0 40 -40 0 0 0 -1 0 48\1-4edge.dat

Status:

Needs 1 More Vote (CN)

Current Votes:

User	Vote
GeraldLasser	Certify

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2026-05-11 09:50:38

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2026-05-11 11:16:39

Creative Commons Attribution License information

Website copyright ©2003-2026 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor, endorse, or authorize this site. Visit the official Lego website at http://www.lego.com
