File Detail parts/s/13037s01.dat

Unofficial File parts/s/13037s01.dat

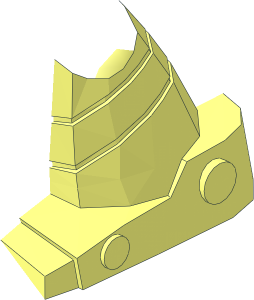

~Minifig Robot Leg Bent 1 x 2 x 2.333 with Clip - Half

File Header:

0 ~Minifig Robot Leg Bent  1 x  2 x  2.333 with Clip - Half
0 Name: s\13037s01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents
