Official File parts/12884.dat
Part Attributes:
File Header:

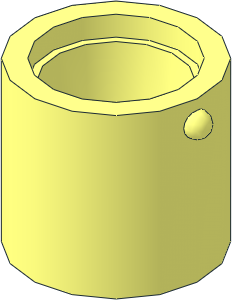

0 Bucket 1 x 1 x 1 Cylindrical
0 Name: 12884.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Hinge point is at y = -20.685
0 BFC CERTIFY CCW
0 !CATEGORY Container
0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 -5 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
1 16 0 -5 0 -10 0 0 0 -1 0 0 0 10 4-4disc.dat
1 16 0 0 0 9.238795 0 -3.826834 0 5 0 3.826834 0 9.238795 1-8edge.dat
0 BFC INVERTNEXT
1 16 0 -5 0 9.238795 0 -3.826834 0 5 0 3.826834 0 9.238795 1-8cyli.dat
1 16 9.701725 -2.5 0 0 -3.701725 0 0 0 2.5 -1.5 0 0 box4-2p.dat
3 16 10 0 0 9.7021 0 -1.5 9.7021 0 1.5
2 24 9.701725 0 1.5 9.239 0 3.827
2 24 9.701725 0 -1.5 9.239 0 -3.827
4 16 9.239 -5 3.827 9.239 0 3.827 9.701725 0 1.5 9.701725 -5 1.5
4 16 9.701725 -5 -1.5 9.701725 0 -1.5 9.239 0 -3.827 9.239 -5 -3.827
5 24 9.239 -5 3.827 9.239 0 3.827 9.701725 0 1.5 7.071193 0 7.071299
5 24 9.239 -5 -3.827 9.239 0 -3.827 9.701725 0 -1.5 7.071193 0 -7.071299
1 16 0 0 0 -3.826834 0 -9.238795 0 5 0 9.238795 0 -3.826834 1-8edge.dat
0 BFC INVERTNEXT
1 16 0 -5 0 -3.826834 0 -9.238795 0 5 0 9.238795 0 -3.826834 1-8cyli.dat
1 16 0 -2.5 9.701725 1.5 0 0 0 0 2.5 0 -3.701725 0 box4-2p.dat
3 16 0 0 10 1.5 0 9.7021 -1.5 0 9.7021
2 24 -1.5 0 9.701725 -3.827 0 9.239
2 24 1.5 0 9.701725 3.827 0 9.239
4 16 -3.827 -5 9.239 -3.827 0 9.239 -1.5 0 9.701725 -1.5 -5 9.701725
4 16 1.5 -5 9.701725 1.5 0 9.701725 3.827 0 9.239 3.827 -5 9.239
5 24 -3.827 -5 9.239 -3.827 0 9.239 -1.5 0 9.701725 -7.071299 0 7.071193
5 24 3.827 -5 9.239 3.827 0 9.239 1.5 0 9.701725 7.071299 0 7.071193
1 16 0 0 0 -9.238795 0 3.826834 0 5 0 -3.826834 0 -9.238795 1-8edge.dat
0 BFC INVERTNEXT
1 16 0 -5 0 -9.238795 0 3.826834 0 5 0 -3.826834 0 -9.238795 1-8cyli.dat
1 16 -9.701725 -2.5 0 0 3.701725 0 0 0 2.5 1.5 0 0 box4-2p.dat
3 16 -10 0 0 -9.7021 0 1.5 -9.7021 0 -1.5
2 24 -9.701725 0 -1.5 -9.239 0 -3.827
2 24 -9.701725 0 1.5 -9.239 0 3.827
4 16 -9.239 -5 -3.827 -9.239 0 -3.827 -9.701725 0 -1.5 -9.701725 -5 -1.5
4 16 -9.701725 -5 1.5 -9.701725 0 1.5 -9.239 0 3.827 -9.239 -5 3.827
5 24 -9.239 -5 -3.827 -9.239 0 -3.827 -9.701725 0 -1.5 -7.071193 0 -7.071299
5 24 -9.239 -5 3.827 -9.239 0 3.827 -9.701725 0 1.5 -7.071193 0 7.071299
1 16 0 0 0 3.826834 0 9.238795 0 5 0 -9.238795 0 3.826834 1-8edge.dat
0 BFC INVERTNEXT
1 16 0 -5 0 3.826834 0 9.238795 0 5 0 -9.238795 0 3.826834 1-8cyli.dat
1 16 0 -2.5 -9.701725 -1.5 0 0 0 0 2.5 0 3.701725 0 box4-2p.dat
3 16 0 0 -10 -1.5 0 -9.7021 1.5 0 -9.7021
2 24 1.5 0 -9.701725 3.827 0 -9.239
2 24 -1.5 0 -9.701725 -3.827 0 -9.239
4 16 3.827 -5 -9.239 3.827 0 -9.239 1.5 0 -9.701725 1.5 -5 -9.701725
4 16 -1.5 -5 -9.701725 -1.5 0 -9.701725 -3.827 0 -9.239 -3.827 -5 -9.239
5 24 3.827 -5 -9.239 3.827 0 -9.239 1.5 0 -9.701725 7.071299 0 -7.071193
5 24 -3.827 -5 -9.239 -3.827 0 -9.239 -1.5 0 -9.701725 -7.071299 0 -7.071193
1 16 0 0 0 -2 0 0 0 -1 0 0 0 2 4-4ring5.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 4-4ring12.dat
0 // inside
1 16 0 -8 0 7.5 0 0 0 1 0 0 0 7.5 4-4edge.dat
1 16 0 -21 0 9 0 0 0 1 0 0 0 9 4-4edge.dat
1 16 0 -8 0 7.5 0 0 0 1 0 0 0 7.5 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 -11 0 0.5 0 0 0 3 0 0 0 0.5 4-4con15.dat
0 BFC INVERTNEXT
1 16 0 -14 0 0.5 0 0 0 3 0 0 0 0.5 4-4con16.dat
0 BFC INVERTNEXT
1 16 0 -21 0 0.5 0 0 0 7 0 0 0 0.5 4-4con17.dat
5 24 8.5 -14 0 7.8532 -14 3.253 7.3912 -11 3.0616 8.3151 -21 3.4443
5 24 7.8532 -14 3.253 6.0104 -14 6.0104 5.6568 -11 5.6568 6.3639 -21 6.3639
5 24 6.0104 -14 6.0104 3.253 -14 7.8532 3.0616 -11 7.3912 3.4443 -21 8.3151
5 24 3.253 -14 7.8532 0 -14 8.5 0 -11 8 0 -21 9
5 24 0 -14 8.5 -3.253 -14 7.8532 -3.0616 -11 7.3912 -3.4443 -21 8.3151
5 24 -3.253 -14 7.8532 -6.0104 -14 6.0104 -5.6568 -11 5.6568 -6.3639 -21 6.3639
5 24 -6.0104 -14 6.0104 -7.8532 -14 3.253 -7.3912 -11 3.0616 -8.3151 -21 3.4443
5 24 -7.8532 -14 3.253 -8.5 -14 0 -8 -11 0 -9 -21 0
5 24 -8.5 -14 0 -7.8532 -14 -3.253 -7.3912 -11 -3.0616 -8.3151 -21 -3.4443
5 24 -7.8532 -14 -3.253 -6.0104 -14 -6.0104 -5.6568 -11 -5.6568 -6.3639 -21 -6.3639
5 24 -6.0104 -14 -6.0104 -3.253 -14 -7.8532 -3.0616 -11 -7.3912 -3.4443 -21 -8.3151
5 24 -3.253 -14 -7.8532 0 -14 -8.5 0 -11 -8 0 -21 -9
5 24 0 -14 -8.5 3.253 -14 -7.8532 3.0616 -11 -7.3912 3.4443 -21 -8.3151
5 24 3.253 -14 -7.8532 6.0104 -14 -6.0104 5.6568 -11 -5.6568 6.3639 -21 -6.3639
5 24 6.0104 -14 -6.0104 7.8532 -14 -3.253 7.3912 -11 -3.0616 8.3151 -21 -3.4443
5 24 7.8532 -14 -3.253 8.5 -14 0 8 -11 0 9 -21 0
1 16 0 -21 0 1 0 0 0 1 0 0 0 1 4-4ring9.dat
0 BFC INVERTNEXT
1 16 0 -24 0 10 0 0 0 3 0 0 0 10 4-4cylo.dat
0 // outside
1 16 0 -24 0 13 0 0 0 24 0 0 0 13 4-4cylo.dat
1 16 0 -24 0 2 0 0 0 1 0 0 0 2 4-4ring5.dat
1 16 0 -24 0 1 0 0 0 1 0 0 0 1 4-4ring12.dat
0 // hinges
1 16 13 -20.685 0 0 1.8 0 -1.8 0 0 0 0 1.8 4-8sphe.dat
1 16 13 -20.685 0 0 -1 -0.35 -1.8 0 0 0 0 1.8 2-4edge.dat
1 16 13 -20.685 0 0 -0.35 0 0 0 -1.8 -1.8 0 0 1-4cyls2.dat
1 16 13 -20.685 0 0 -0.35 0 0 0 1.8 -1.8 0 0 1-4cyls2.dat
1 16 13 -20.685 0 0 -1 -0.35 1.8 0 0 0 0 -1.8 2-4edge.dat
1 16 13 -20.685 0 0 -0.35 0 0 0 1.8 1.8 0 0 1-4cyls2.dat
1 16 13 -20.685 0 0 -0.35 0 0 0 -1.8 1.8 0 0 1-4cyls2.dat
1 16 -13 -20.685 0 0 -1.8 0 -1.8 0 0 0 0 -1.8 4-8sphe.dat
1 16 -13 -20.685 0 0 1 0.35 -1.8 0 0 0 0 -1.8 2-4edge.dat
1 16 -13 -20.685 0 0 0.35 0 0 0 -1.8 1.8 0 0 1-4cyls2.dat
1 16 -13 -20.685 0 0 0.35 0 0 0 1.8 1.8 0 0 1-4cyls2.dat
1 16 -13 -20.685 0 0 1 0.35 1.8 0 0 0 0 1.8 2-4edge.dat
1 16 -13 -20.685 0 0 0.35 0 0 0 1.8 -1.8 0 0 1-4cyls2.dat
1 16 -13 -20.685 0 0 0.35 0 0 0 -1.8 -1.8 0 0 1-4cyls2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Update ring primitives via script. Do not hold.
2024-03-23 00:46:52
2024-03-24 17:24:46
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
