Unofficial File parts/3815bpxf.dat
Part Attributes:
Base Part: 3815b.dat
File Header:

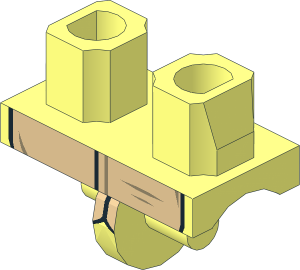

0 Minifig Hips with Turtle Shell with Dark Tan Scratches Pattern
0 Name: 3815bpxf.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 970c00pb0302, Brickowl 807978, Leo, Leonardo, Nickelodeon
0 !KEYWORDS Rebrickable 970c31pr0654, Set 79118, Teenage Mutant Ninja Turtles
0 !KEYWORDS TMNT
0 !CMDLINE -c2
Show contents
0 // Subfile
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3815bs01.dat
0 // Conditional Lines
5 24 2 20.084 -3.3485 -2 20.084 -3.3485 2 21.471 0 2 18.1871 -6.1871
5 24 2 18.1871 -6.1871 -2 18.1871 -6.1871 2 20.084 -3.3485 2 15.3486 -8.0841
5 24 2 15.3486 -8.0841 -2 15.3486 -8.0841 2 18.1871 -6.1871 2 12 -8.75
5 24 2 12 -8.75 -2 12 -8.75 2 15.3486 -8.0841 2 8.6514 -8.0841
5 24 2 8.6514 -8.0841 -2 8.6514 -8.0841 2 12 -8.75 2 5.8129 -6.1871
5 24 2 5.8129 -6.1871 -2 5.8129 -6.1871 2 8.6514 -8.0841 2 3.25 -3.625
0 // Pattern
0 // Upper Area
0 // Colour 0 Black
4 0 -.4 0 -10 -.4 6 -10 .4 6 -10 .4 0 -10
4 0 -15.7 0 -10 -16.5 0 -10 -16.5 4.9 -10 -15.7 4.9 -10
4 0 -15.7 4.9 -10 -16.5 4.9 -10 -16.1 6 -10 -15.4 6 -10
4 0 16.5 4.9 -10 16.5 0 -10 15.7 0 -10 15.7 4.9 -10
4 0 16.1 6 -10 16.5 4.9 -10 15.7 4.9 -10 15.4 6 -10
0 // Colour 16 Main Colour
3 16 -16.5 4.9 -10 -18 6 -10 -16.1 6 -10
3 16 16.5 4.9 -10 16.1 6 -10 18 6 -10
4 16 -16.5 4.9 -10 -16.5 0 -10 -18 0 -10 -18 6 -10
4 16 18 0 -10 16.5 0 -10 16.5 4.9 -10 18 6 -10
0 // Colour 19 Tan
3 19 -14.1 5.4 -10 -15.4 6 -10 -13.6 6 -10
3 19 2.1 0 -10 2.1 6 -10 4.3 2.6 -10
3 19 9.8 2.9 -10 8 3.9 -10 9.3 3.9 -10
3 19 12.8 2.7 -10 10.9 4.1 -10 15.4 6 -10
3 19 14.6 0 -10 7.5 2.4 -10 9.8 2.4 -10
3 19 6.2 4 -10 2.1 6 -10 8 4.2 -10
3 19 9.3 4.2 -10 8 4.2 -10 2.1 6 -10
4 19 -.4 0 -10 -15.7 0 -10 -14.6 2.9 -10 -13.744 4.699 -10
4 19 -.4 0 -10 -13.744 4.699 -10 -12.8 6 -10 -.4 6 -10
4 19 -14.6 2.9 -10 -15.7 0 -10 -15.7 4.9 -10 -14.459 4.373 -10
4 19 -14.459 4.373 -10 -15.7 4.9 -10 -15.4 6 -10 -14.1 5.4 -10
4 19 1.5 0 -10 .4 0 -10 .4 6 -10 1.5 6 -10
4 19 15.7 0 -10 15.3 0 -10 15.3 2.4 -10 15.7 4.9 -10
4 19 15.4 6 -10 15.7 4.9 -10 15.3 2.4 -10 12.8 2.7 -10
4 19 4.3 2.6 -10 2.1 6 -10 6.2 4 -10 7.5 2.9 -10
4 19 7.5 2.9 -10 6.2 4 -10 8 3.9 -10 9.8 2.9 -10
4 19 9.8 2.9 -10 9.3 3.9 -10 10.9 4.1 -10 12.8 2.7 -10
4 19 12.8 2.7 -10 15.3 2.4 -10 14.6 0 -10 9.8 2.4 -10
4 19 2.1 0 -10 4.3 2.6 -10 7.5 2.4 -10 14.6 0 -10
4 19 15.4 6 -10 10.9 4.1 -10 9.3 4.2 -10 2.1 6 -10
0 // Colour 28 Dark Tan
3 28 15.3 0 -10 14.6 0 -10 15.3 2.4 -10
4 28 2.1 0 -10 1.5 0 -10 1.5 6 -10 2.1 6 -10
4 28 -13.744 4.699 -10 -14.6 2.9 -10 -14.459 4.373 -10 -14.1 5.4 -10
4 28 -13.744 4.699 -10 -14.1 5.4 -10 -13.6 6 -10 -12.8 6 -10
4 28 7.5 2.4 -10 4.3 2.6 -10 7.5 2.9 -10 9.8 2.4 -10
4 28 9.8 2.4 -10 7.5 2.9 -10 9.8 2.9 -10 12.8 2.7 -10
4 28 8 3.9 -10 6.2 4 -10 8 4.2 -10 9.3 4.2 -10
4 28 9.3 3.9 -10 8 3.9 -10 9.3 4.2 -10 10.9 4.1 -10
0 // Lower Area
0 // Colour 0 Black
3 0 2 12 -8.75 .957 12 -8.75 2 12.57 -8.637
3 0 .4 10.8 -8.511 0 11.4 -8.631 .679 11.16 -8.583
3 0 .4 5.813 -6.187 -.4 8.652 -8.084 .4 8.652 -8.084
3 0 -.957 12 -8.75 -2 12 -8.75 -2 12.57 -8.637
3 0 -.4 10.8 -8.511 -.679 11.16 -8.583 0 11.4 -8.631
3 0 -.4 8.652 -8.084 -.4 10.8 -8.511 0 11.4 -8.631
3 0 -.4 8.652 -8.084 .4 5.813 -6.187 -.4 5.813 -6.187
4 0 .957 12 -8.75 2 12 -8.75 1.144 11.519 -8.654 .451 11.717 -8.694
4 0 .451 11.717 -8.694 1.144 11.519 -8.654 .679 11.16 -8.583 0 11.4 -8.631
4 0 .4 10.8 -8.511 .4 8.652 -8.084 -.4 8.652 -8.084 0 11.4 -8.631
4 0 -1.144 11.519 -8.654 -2 12 -8.75 -.957 12 -8.75 -.451 11.717 -8.694
4 0 -.679 11.16 -8.583 -1.144 11.519 -8.654 -.451 11.717 -8.694 0 11.4 -8.631
0 // Colour 16 Main Colour
3 16 .451 11.717 -8.694 0 12 -8.75 .957 12 -8.75
3 16 -.451 11.717 -8.694 -.957 12 -8.75 0 12 -8.75
3 16 0 12 -8.75 -2 15.3486 -8.0841 2 15.3486 -8.0841
4 16 0 12 -8.75 .451 11.717 -8.694 0 11.4 -8.631 -.451 11.717 -8.694
4 16 2 12.57 -8.637 .957 12 -8.75 0 12 -8.75 2 15.3486 -8.0841
4 16 0 12 -8.75 -.957 12 -8.75 -2 12.57 -8.637 -2 15.3486 -8.0841
4 16 2 15.3486 -8.0841 -2 15.3486 -8.0841 -2 18.1871 -6.1871 2 18.1871 -6.1871
4 16 2 18.1871 -6.1871 -2 18.1871 -6.1871 -2 20.084 -3.3485 2 20.084 -3.3485
0 // Colour 19 Tan
4 19 .4 5.813 -6.187 .4 8.652 -8.084 2 8.6514 -8.0841 2 5.8129 -6.1871
4 19 2 8.6514 -8.0841 .4 8.652 -8.084 .4 10.8 -8.511 .679 11.16 -8.583
4 19 2 8.6514 -8.0841 .679 11.16 -8.583 1.144 11.519 -8.654 2 12 -8.75
4 19 -2 8.6514 -8.0841 -.4 8.652 -8.084 -.4 5.813 -6.187 -2 5.8129 -6.1871
4 19 -.4 10.8 -8.511 -.4 8.652 -8.084 -2 8.6514 -8.0841 -.679 11.16 -8.583
4 19 -1.144 11.519 -8.654 -.679 11.16 -8.583 -2 8.6514 -8.0841 -2 12 -8.75
Status:
Needs 2 More Votes (N)
This part has the following warnings
- Ensure correct Minifig category
Current Votes:
None
Official parents and subparts
Part Events:
I tried to match this as far as possible with the existing Turtle legs. The Dark tan lines in particular seem to show a lot of variance on real parts.
