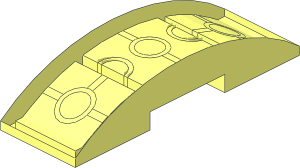

~Slope Brick Curved 6 x 2 Double without Patternable Surfaces

File Header:

0 ~Slope Brick Curved  6 x  2 Double without Patternable Surfaces
0 Name: s\8166s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\8166s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\8166s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\8166s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\8166s02.dat

0 // Bottom
1 16 0 20 -40 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 0 20 40 1 0 0 0 -1 0 0 0 1 stud4a.dat

1 16 0 9.4 -32 0 0 1.5 0 8.6 0 -1.5 0 0 boxjcyl4.dat
1 16 0 18 -28 0 0 -1.5 0 -1 0 -4 0 0 rect2p.dat
4 16 -1.5 9.4 -32 -1.5 7 -24 -1.5 18 -24 -1.5 18 -32
4 16 1.5 18 -24 1.5 7 -24 1.5 9.4 -32 1.5 18 -32
1 16 0 12.5 -24 1.5 0 0 0 0 5.5 0 1 0 recte3.dat
2 24 -1.5 9.527 -32.298 -1.5 9.4 -32
2 24 1.5 9.527 -32.298 1.5 9.4 -32
2 24 -1.5 9.4 -32 -1.5 7 -24
2 24 1.5 7 -24 1.5 9.4 -32

1 16 0 9.4 32 0 0 1.5 0 8.6 0 1.5 0 0 boxjcyl4.dat
1 16 0 18 28 0 0 -1.5 0 -1 0 4 0 0 rect2p.dat
4 16 -1.5 18 24 -1.5 7 24 -1.5 9.4 32 -1.5 18 32
4 16 1.5 9.4 32 1.5 7 24 1.5 18 24 1.5 18 32
1 16 0 12.5 24 1.5 0 0 0 0 5.5 0 -1 0 recte3.dat
2 24 -1.5 9.527 32.298 -1.5 9.4 32
2 24 1.5 9.527 32.298 1.5 9.4 32
2 24 -1.5 9.4 32 -1.5 7 24
2 24 1.5 7 24 1.5 9.4 32

1 16 0 22 -56 -16 0 0 0 0 -2 0 -1 0 rect.dat
4 16 -16 20 -52.296 16 20 -52.296 16 20 -56 -16 20 -56
1 16 0 24 -40 -16 0 0 0 1 0 0 0 16 recte3.dat
1 16 0 24 -40 -20 0 0 0 1 0 0 0 20 recte4.dat
4 16 -16 24 -24 -20 24 -20 20 24 -20 16 24 -24
4 16 -16 24 -56 16 24 -56 20 24 -60 -20 24 -60
1 16 0 22 -60 20 0 0 0 0 -2 0 1 0 rect3.dat
1 16 0 15.5 -24 -16 0 0 0 0 -8.5 0 1 0 rect3.dat
1 16 0 8.2 -28 0 0 16 -1.2 -1 0 4 0 0 rect2p.dat
1 16 0 11.1 -36 0 0 16 -1.7 -1 0 4 0 0 rect2p.dat
1 16 0 15.05 -44 0 0 16 -2.25 -1 0 4 0 0 rect2p.dat
1 16 0 18.65 -50.148 0 0 16 -1.35 -1 0 2.1481 0 0 rect2p.dat

4 16 -16 16 -20 16 16 -20 20 24 -20 -20 24 -20
1 16 0 11 -20 -16 0 0 0 0 -5 0 -1 0 rect3.dat
1 16 0 5.2 -15 0 0 16 .8 -1 0 -5 0 0 rect2p.dat
1 16 0 4.2 -5 0 0 16 .2 -1 0 -5 0 0 rect2p.dat
5 24 -16 17.3 -48 16 17.3 -48 16 12.8 -40 16 20 -52.296
5 24 16 12.8 -40 -16 12.8 -40 -16 17.3 -48 -16 9.4 -32
5 24 -16 9.4 -32 16 9.4 -32 16 12.8 -40 16 7 -24

1 16 0 22 56 -16 0 0 0 0 2 0 1 0 rect.dat
4 16 16 20 56 16 20 52.296 -16 20 52.296 -16 20 56
1 16 0 24 40 -16 0 0 0 1 0 0 0 -16 recte3.dat
1 16 0 24 40 -20 0 0 0 1 0 0 0 -20 recte4.dat
4 16 20 24 20 -20 24 20 -16 24 24 16 24 24
4 16 20 24 60 16 24 56 -16 24 56 -20 24 60
1 16 0 22 60 20 0 0 0 0 -2 0 -1 0 rect3.dat
1 16 0 15.5 24 -16 0 0 0 0 -8.5 0 -1 0 rect3.dat
1 16 0 8.2 28 0 0 16 -1.2 -1 0 -4 0 0 rect2p.dat
1 16 0 11.1 36 0 0 16 -1.7 -1 0 -4 0 0 rect2p.dat
1 16 0 15.05 44 0 0 16 -2.25 -1 0 -4 0 0 rect2p.dat
1 16 0 18.65 50.148 0 0 16 -1.35 -1 0 -2.1481 0 0 rect2p.dat

4 16 20 24 20 16 16 20 -16 16 20 -20 24 20
1 16 0 11 20 -16 0 0 0 0 -5 0 1 0 rect3.dat
1 16 0 5.2 15 0 0 16 .8 -1 0 5 0 0 rect2p.dat
1 16 0 4.2 5 0 0 16 .2 -1 0 5 0 0 rect2p.dat
5 24 -16 17.3 48 16 17.3 48 16 12.8 40 16 20 52.296
5 24 16 12.8 40 -16 12.8 40 -16 17.3 48 -16 9.4 32
5 24 -16 9.4 32 16 9.4 32 16 12.8 40 16 7 24

0 // Centre
3 16 20 0 0 20 16 -20 20 16 20
3 16 -20 0 0 -20 16 20 -20 16 -20
3 16 16 4 0 16 16 20 16 16 -20
3 16 -16 16 20 -16 4 0 -16 16 -20
1 16 -18 16 0 0 0 2 0 -1 0 20 0 0 rect.dat
1 16 18 16 0 0 0 2 0 -1 0 20 0 0 rect.dat
5 24 -16 4.4 -10 16 4.4 -10 16 6 -20 16 4 0
5 24 16 4 0 -16 4 0 -16 4.4 -10 -16 4.4 10
5 24 -16 4.4 10 16 4.4 10 16 4 0 16 6 20

1 16 0 4 0 1 0 0 0 -3 0 0 0 1 stud4a.dat
1 16 0 4.72 -20 1 0 0 0 -2.82 0 0 0 1 2-4stud4a.dat
1 16 0 4.72 20 1 0 0 0 -2.82 0 0 0 -1 2-4stud4a.dat

4 16 -16 10 -1.5 -16 10 1.5 -7.702 10 1.5 -7.702 10 -1.5
4 16 7.702 10 1.5 16 10 1.5 16 10 -1.5 7.702 10 -1.5
2 24 -16 10 -1.5 -16 10 1.5
2 24 16 10 -1.5 16 10 1.5
