Unofficial File parts/s/32803s01.dat
File Header:

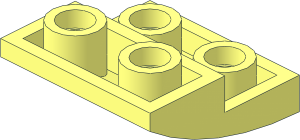

0 ~Slope Brick Curved 2 x 2 x 0.667 Inverted - Bottom Part
0 Name: s\32803s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Primitivesa
1 16 0 2 -10 0 0 20 2 0 0 0 1 0 rect.dat
1 16 0 12 30 0 0 20 -4 0 0 0 -1 0 rect.dat
1 16 0 10.5 27 17 0 0 0 0 -2.5 0 1 0 rect.dat
1 16 0 4.5 7 -17 0 0 0 0 4.5 0 1 0 rect.dat
1 16 0 1.5 -7 0 0 -17 1.5 0 0 0 -1 0 rect.dat
1 16 0 6 0 0 0 -17 3 1 0 7 0 0 rect2p.dat
1 16 0 11.5 18.5 -17 0 0 0 1 -1.5 0 0 -8.5 rect3.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 8 20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 0 0 1 0 0 0 3.4286 0 0 0 1 stud2s2e.dat
1 16 -10 8 20 1 0 0 0 2.7059 0 0 0 1 stud2s2e.dat
1 16 -10 3.4286 0 0 0 1 0 2.5714 0 -1 0 0 stud2s2.dat
1 16 -10 10.7059 20 0 0 1 0 1.0588 0 -1 0 0 stud2s2.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 10 8 20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 10 0 0 1 0 0 0 3.4286 0 0 0 1 stud2s2e.dat
1 16 10 8 20 1 0 0 0 2.7059 0 0 0 1 stud2s2e.dat
1 16 10 3.4286 0 0 0 1 0 2.5714 0 -1 0 0 stud2s2.dat
1 16 10 10.7059 20 0 0 1 0 1.0588 0 -1 0 0 stud2s2.dat
1 16 -20 -24.972 30 0 1 0 28.9719 0 28.9719 -40 0 40 48\1-8chrd.dat
1 16 20 -24.972 30 0 -1 0 28.9719 0 28.9719 -40 0 40 48\1-8chrd.dat
1 16 -20 -24.972 30 0 1 0 28.9719 0 28.9719 -40 0 40 48\1-8edge.dat
1 16 20 -24.972 30 0 1 0 28.9719 0 28.9719 -40 0 40 48\1-8edge.dat
0 // Faces
3 16 -20 8 10 -20 0 10 -17 8 10
4 16 17 8 10 -17 8 10 -20 0 10 20 0 10
4 16 -17 10 10 -17 8 10 17 8 10 17 10 10
3 16 17 8 10 20 0 10 20 8 10
4 16 17 10 10 17 8 10 17 8 27 17 13 27
4 16 -17 10 10 -17 13 27 -17 8 27 -17 8 10
4 16 -20 8 10 -17 8 10 -17 8 27 -20 8 30
4 16 17 8 27 20 8 30 -20 8 30 -17 8 27
4 16 20 8 10 20 8 30 17 8 27 17 8 10
4 16 -17 3 -7 -17 9 7 -17 0 7 -17 0 -7
4 16 17 0 7 17 9 7 17 3 -7 17 0 -7
4 16 -17 0 -7 -17 0 7 -20 0 10 -20 0 -10
4 16 17 0 7 20 0 10 -20 0 10 -17 0 7
4 16 17 0 -7 20 0 -10 20 0 10 17 0 7
4 16 -17 0 -7 -20 0 -10 20 0 -10 17 0 -7
4 16 20 0 10 20 0 -10 20 4 -10 20 8 10
3 16 20 8 30 20 8 10 20 16 30
3 16 20 16 30 20 8 10 20 4 -10
3 16 -20 8 30 -20 16 30 -20 8 10
3 16 -20 8 10 -20 16 30 -20 4 -10
4 16 -20 4 -10 -20 0 -10 -20 0 10 -20 8 10
0 // Edges
2 24 -17 8 10 -20 8 10
2 24 -17 10 10 -17 8 10
2 24 17 8 10 17 10 10
2 24 -20 0 10 20 0 10
2 24 20 8 10 17 8 10
2 24 17 8 10 17 8 27
2 24 -17 8 27 -17 8 10
2 24 -17 0 7 -17 0 -7
2 24 17 0 -7 17 0 7
2 24 -20 8 30 -20 8 10
2 24 -20 8 10 -20 0 10
2 24 -20 0 10 -20 0 -10
2 24 20 0 -10 20 0 10
2 24 20 0 10 20 8 10
2 24 20 8 10 20 8 30
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Subparted
