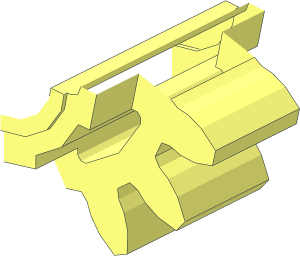

0 ~Technic Gear 14 Tooth 1/4
0 Name: s\7785s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 BFC INVERTNEXT
1 16 7.6 0 9.6 0 0 1.2 1.2 0 0 0 -19.2 0 8\1-4cylo.dat
1 16 0 0 10 0 0 1.5 1.5 0 0 0 -1 0 3-16ring4.dat
1 16 0 0 10 0 0 7.5 7.5 0 0 0 -.4 0 3-16cylo.dat
1 16 7.6 0 9.6 0 0 1.2 1.2 0 0 0 -1 0 8\1-4ndis.dat
2 24 5.7614 1.2 10 5.6023 2 10
2 24 7.2614 1.2 9.6 7.6 1.2 9.6
2 24 5.7614 1.2 10 7.2614 1.2 10
2 24 7.2614 1.2 9.6 7.2614 1.2 10
2 24 6.9293 2.8703 10 7.2614 1.2 10
2 24 6.9293 2.8703 9.6 7.2614 1.2 9.6
4 16 7.2614 1.2 9.6 6.9293 2.8703 9.6 6.9293 2.8703 10 7.2614 1.2 10
5 24 6.9293 2.8703 10 6.9293 2.8703 9.6 5.3033 5.3033 9.6 7.2614 1.2 9.6
3 16 5.5432 2.2961 10 5.6023 2 10 6.9293 2.8703 10
4 16 7.2614 1.2 10 6.9293 2.8703 10 5.6023 2 10 5.7614 1.2 10
1 16 0 0 -10 0 0 1.5 1.5 0 0 0 1 0 3-16ring4.dat
1 16 0 0 -10 0 0 7.5 7.5 0 0 0 .4 0 3-16cylo.dat
1 16 7.6 0 -9.6 0 0 1.2 1.2 0 0 0 1 0 8\1-4ndis.dat
2 24 5.6023 2 -10 5.7614 1.2 -10
2 24 7.6 1.2 -9.6 7.2614 1.2 -9.6
2 24 7.2614 1.2 -10 5.7614 1.2 -10
2 24 7.2614 1.2 -10 7.2614 1.2 -9.6
2 24 7.2614 1.2 -10 6.9293 2.8703 -10
2 24 7.2614 1.2 -9.6 6.9293 2.8703 -9.6
4 16 6.9293 2.8703 -10 6.9293 2.8703 -9.6 7.2614 1.2 -9.6 7.2614 1.2 -10
5 24 6.9293 2.8703 -9.6 6.9293 2.8703 -10 5.3033 5.3033 -9.6 7.2614 1.2 -9.6
3 16 5.6023 2 -10 5.5432 2.2961 -10 6.9293 2.8703 -10
4 16 5.6023 2 -10 6.9293 2.8703 -10 7.2614 1.2 -10 5.7614 1.2 -10
2 24 5.6023 2 10 5.6023 2 -10
2 24 5.7614 1.2 10 5.7614 1.2 -10
4 16 7.6 1.2 9.6 7.2614 1.2 9.6 7.2614 1.2 -9.6 7.6 1.2 -9.6
4 16 7.2614 1.2 9.6 5.7614 1.2 10 5.7614 1.2 -10 7.2614 1.2 -9.6
3 16 5.7614 1.2 10 7.2614 1.2 9.6 7.2614 1.2 10
3 16 5.7614 1.2 -10 7.2614 1.2 -10 7.2614 1.2 -9.6
4 16 5.6023 2 10 5.6023 2 -10 5.7614 1.2 -10 5.7614 1.2 10
1 16 .2 .2 -9.6 3.44415 0 8.31492 8.31492 0 -3.44415 0 19.2 0 1-8cylo.dat
1 16 .2 .2 -9.6 3.44415 0 8.31492 8.31492 0 -3.44415 0 1 0 1-8chrd.dat
1 16 .2 .2 9.6 3.44415 0 8.31492 8.31492 0 -3.44415 0 -1 0 1-8chrd.dat
0 BFC INVERTNEXT
1 16 .2 .2 -4.8 4.40086 0 10.62461 10.62461 0 -4.40086 0 9.6 0 1-8cylo.dat
1 16 .2 .2 -4.8 4.40086 0 10.62461 10.62461 0 -4.40086 0 1 0 1-8tang.dat
1 16 .2 .2 4.8 4.40086 0 10.62461 10.62461 0 -4.40086 0 -1 0 1-8tang.dat
1 16 0 0 -9.6 0 0 9.5 10.6 0 0 0 4.8 0 1-16cylo.dat
1 16 0 0 9.6 0 0 9.5 10.6 0 0 0 -4.8 0 1-16cylo.dat
2 24 3.6357 9.7933 -9.6 3.6442 8.5149 -9.6
2 24 3.6313 10.4541 -4.8 3.6357 9.7933 -4.8
2 24 4.0147 10.8387 -4.8 3.6313 10.4541 -4.8
2 24 4.6009 10.8246 -4.8 4.0147 10.8387 -4.8
2 24 3.6357 9.7933 -9.6 3.6357 9.7933 -4.8
1 16 0 0 -9.6 0 0 9.5 10.6 0 0 0 1 0 1-16chrd.dat
4 16 0 10.6 -9.6 3.6357 9.7933 -9.6 3.6442 8.5149 -9.6 0 7.5 -9.6
3 16 3.6442 8.5149 -9.6 2.8703 6.9293 -9.6 0 7.5 -9.6
2 24 3.6442 8.5149 9.6 3.6357 9.7933 9.6
2 24 3.6357 9.7933 4.8 3.6313 10.4541 4.8
2 24 3.6313 10.4541 4.8 4.0147 10.8387 4.8
2 24 4.0147 10.8387 4.8 4.6009 10.8246 4.8
2 24 3.6357 9.7933 4.8 3.6357 9.7933 9.6
1 16 0 0 9.6 0 0 9.5 10.6 0 0 0 -1 0 1-16chrd.dat
4 16 3.6442 8.5149 9.6 3.6357 9.7933 9.6 0 10.6 9.6 0 7.5 9.6
3 16 2.8703 6.9293 9.6 3.6442 8.5149 9.6 0 7.5 9.6
5 24 4.0147 10.8387 4.8 4.0147 10.8387 -4.8 4.6009 10.8246 -4.8 3.6313 10.4541 -4.8
5 24 3.6313 10.4541 4.8 3.6313 10.4541 -4.8 3.6357 9.7933 -4.8 4.0147 10.8387 -4.8
4 16 3.6357 9.7933 4.8 3.6357 9.7933 -4.8 3.6313 10.4541 -4.8 3.6313 10.4541 4.8
4 16 3.6313 10.4541 4.8 3.6313 10.4541 -4.8 4.0147 10.8387 -4.8 4.0147 10.8387 4.8
4 16 4.0147 10.8387 4.8 4.0147 10.8387 -4.8 4.6009 10.8246 -4.8 4.6009 10.8246 4.8
3 16 3.6357 9.7933 -9.6 3.6357 9.7933 -4.8 3.6442 8.5149 -9.6
3 16 3.6357 9.7933 4.8 3.6357 9.7933 9.6 3.6442 8.5149 9.6
4 16 3.6442 8.5149 -9.6 3.6357 9.7933 -4.8 3.6357 9.7933 4.8 3.6442 8.5149 9.6
1 16 0 0 -9.6 10.6 0 0 0 0 9.5 0 4.8 0 1-16cylo.dat
1 16 0 0 9.6 10.6 0 0 0 0 9.5 0 -4.8 0 1-16cylo.dat
2 24 8.5149 3.6442 -9.6 9.7933 3.6357 -9.6
2 24 9.7933 3.6357 -4.8 10.4541 3.6313 -4.8
2 24 10.4541 3.6313 -4.8 10.8387 4.0147 -4.8
2 24 10.8387 4.0147 -4.8 10.8246 4.6009 -4.8
2 24 9.7933 3.6357 -4.8 9.7933 3.6357 -9.6
1 16 0 0 -9.6 10.6 0 0 0 0 9.5 0 1 0 1-16chrd.dat
2 24 9.7933 3.6357 9.6 8.5149 3.6442 9.6
2 24 10.4541 3.6313 4.8 9.7933 3.6357 4.8
2 24 10.8387 4.0147 4.8 10.4541 3.6313 4.8
2 24 10.8246 4.6009 4.8 10.8387 4.0147 4.8
2 24 9.7933 3.6357 9.6 9.7933 3.6357 4.8
1 16 0 0 9.6 10.6 0 0 0 0 9.5 0 -1 0 1-16chrd.dat
5 24 10.8387 4.0147 -4.8 10.8387 4.0147 4.8 10.8246 4.6009 -4.8 10.4541 3.6313 -4.8
5 24 10.4541 3.6313 -4.8 10.4541 3.6313 4.8 9.7933 3.6357 -4.8 10.8387 4.0147 -4.8
4 16 10.4541 3.6313 -4.8 9.7933 3.6357 -4.8 9.7933 3.6357 4.8 10.4541 3.6313 4.8
4 16 10.8387 4.0147 -4.8 10.4541 3.6313 -4.8 10.4541 3.6313 4.8 10.8387 4.0147 4.8
4 16 10.8246 4.6009 -4.8 10.8387 4.0147 -4.8 10.8387 4.0147 4.8 10.8246 4.6009 4.8
3 16 9.7933 3.6357 -4.8 9.7933 3.6357 -9.6 8.5149 3.6442 -9.6
3 16 9.7933 3.6357 9.6 9.7933 3.6357 4.8 8.5149 3.6442 9.6
4 16 9.7933 3.6357 4.8 9.7933 3.6357 -4.8 8.5149 3.6442 -9.6 8.5149 3.6442 9.6
4 16 10.6 0 -9.6 8.8 0 -9.6 8.8 1.2 -9.6 9.7933 3.6357 -9.6
4 16 9.7933 3.6357 -9.6 8.8 1.2 -9.6 7.6 1.2 -9.6 8.5148 3.6441 -9.6
4 16 7.6 1.2 -9.6 7.2614 1.2 -9.6 6.9293 2.8703 -9.6 8.5148 3.6441 -9.6
4 16 8.5148 3.6441 -9.6 6.9293 2.8703 -9.6 2.8703 6.9293 -9.6 3.6442 8.5149 -9.6
4 16 2.3 14.1 -4.8 4.0455 13.7016 -4.8 3.6313 10.4541 -4.8 0 10.6 -4.8
3 16 3.6313 10.4541 -4.8 3.6357 9.7933 -4.8 0 10.6 -4.8
3 16 4.0147 10.8387 -4.8 3.6313 10.4541 -4.8 4.0455 13.7016 -4.8
3 16 4.0147 10.8387 -4.8 4.0455 13.7016 -4.8 4.6009 10.8246 -4.8
4 16 4.0455 13.7016 -4.8 8.1899 11.7058 -4.8 6.7141 9.9493 -4.8 4.6009 10.8246 -4.8
4 16 8.332 8.3319 -4.8 6.7141 9.9493 -4.8 8.1899 11.7058 -4.8 9.5898 10.5894 -4.8
4 16 9.9499 6.7145 -4.8 8.332 8.3319 -4.8 9.5898 10.5894 -4.8 12.4578 6.993 -4.8
4 16 10.8245 4.6008 -4.8 9.9499 6.7145 -4.8 12.4578 6.993 -4.8 13.2347 5.3799 -4.8
4 16 10.8245 4.6008 -4.8 13.2347 5.3799 -4.8 14.2583 .8952 -4.8 10.8387 4.0147 -4.8
4 16 10.8387 4.0147 -4.8 14.2583 .8952 -4.8 10.6 0 -4.8 10.4541 3.6313 -4.8
3 16 9.7933 3.6357 -4.8 10.4541 3.6313 -4.8 10.6 0 -4.8
4 16 3.6313 10.4541 4.8 4.0455 13.7016 4.8 2.3 14.1 4.8 0 10.6 4.8
3 16 3.6357 9.7933 4.8 3.6313 10.4541 4.8 0 10.6 4.8
3 16 3.6313 10.4541 4.8 4.0147 10.8387 4.8 4.0455 13.7016 4.8
3 16 4.0455 13.7016 4.8 4.0147 10.8387 4.8 4.6009 10.8246 4.8
4 16 6.7141 9.9493 4.8 8.1899 11.7058 4.8 4.0455 13.7016 4.8 4.6009 10.8246 4.8
4 16 8.1899 11.7058 4.8 6.7141 9.9493 4.8 8.332 8.3319 4.8 9.5898 10.5894 4.8
4 16 9.5898 10.5894 4.8 8.332 8.3319 4.8 9.9499 6.7145 4.8 12.4578 6.993 4.8
4 16 12.4578 6.993 4.8 9.9499 6.7145 4.8 10.8245 4.6008 4.8 13.2347 5.3799 4.8
4 16 14.2583 .8952 4.8 13.2347 5.3799 4.8 10.8245 4.6008 4.8 10.8387 4.0147 4.8
4 16 10.6 0 4.8 14.2583 .8952 4.8 10.8387 4.0147 4.8 10.4541 3.6313 4.8
3 16 10.4541 3.6313 4.8 9.7933 3.6357 4.8 10.6 0 4.8
4 16 8.8 1.2 9.6 8.8 0 9.6 10.6 0 9.6 9.7933 3.6357 9.6
4 16 7.6 1.2 9.6 8.8 1.2 9.6 9.7933 3.6357 9.6 8.5148 3.6441 9.6
4 16 6.9293 2.8703 9.6 7.2614 1.2 9.6 7.6 1.2 9.6 8.5148 3.6441 9.6
4 16 2.8703 6.9293 9.6 6.9293 2.8703 9.6 8.5148 3.6441 9.6 3.6442 8.5149 9.6
1 16 0 0 0 -.90097 .43388 0 .43388 .90097 0 0 0 1 s\7785s02.dat
1 16 0 0 0 -.62349 .78183 0 .78183 .62349 0 0 0 1 s\7785s02.dat
1 16 0 0 0 -.22252 .97493 0 .97493 .22252 0 0 0 1 s\7785s02.dat
2 24 2.3 14.1 -4.8 2.3 14.1 4.8
2 24 2.3 14.1 -4.8 4.0455 13.7016 -4.8
2 24 2.3 14.1 4.8 4.0455 13.7016 4.8
4 16 4.0455 13.7016 4.8 4.0455 13.7016 -4.8 2.3 14.1 -4.8 2.3 14.1 4.8
2 24 8.19 11.7057 -4.8 9.5898 10.5894 -4.8
2 24 8.19 11.7057 4.8 9.5898 10.5894 4.8
4 16 9.5898 10.5894 4.8 9.5898 10.5894 -4.8 8.19 11.7057 -4.8 8.19 11.7057 4.8
2 24 12.4579 6.993 -4.8 13.2347 5.3799 -4.8
2 24 12.4579 6.993 4.8 13.2347 5.3799 4.8
4 16 13.2347 5.3799 4.8 13.2347 5.3799 -4.8 12.4579 6.993 -4.8 12.4579 6.993 4.8
2 24 8.5148 3.6441 -9.6 8.5148 3.6441 9.6
2 24 3.6442 8.5149 -9.6 3.6442 8.5149 9.6
