File Detail parts/s/7786s03.dat

Unofficial File parts/s/7786s03.dat

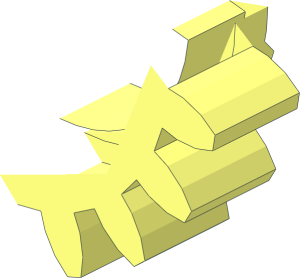

~Technic Gear 18 Tooth with Clutch on Both Sides Quarter

File Header:

0 ~Technic Gear 18 Tooth with Clutch on Both Sides Quarter
0 Name: s\7786s03.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 .93969 .34202 0 -.34202 .93969 0 0 0 1 s\7786s02.dat
1 16 0 0 0 .76604 .64279 0 -.64279 .76604 0 0 0 1 s\7786s02.dat
1 16 0 0 0 .5 .86603 0 -.86603 .5 0 0 0 1 s\7786s02.dat
1 16 0 0 0 .17365 .98481 0 -.98481 .17365 0 0 0 1 s\7786s02.dat
2 24 2 19.1 -4.8 4.6532 18.6321 -4.8
2 24 2 19.1 4.8 4.6532 18.6321 4.8
4 16 4.6532 18.6321 -4.8 2 19.1 -4.8 2 19.1 4.8 4.6532 18.6321 4.8
2 24 8.412 17.264 -4.8 10.7452 15.9169 -4.8
2 24 8.412 17.264 4.8 10.7452 15.9169 4.8
4 16 10.7452 15.9169 -4.8 8.412 17.264 -4.8 8.412 17.264 4.8 10.7452 15.9169 4.8
2 24 13.8094 13.3458 -4.8 15.5412 11.2821 -4.8
2 24 13.8094 13.3458 4.8 15.5412 11.2821 4.8
4 16 15.5412 11.2821 -4.8 13.8094 13.3458 -4.8 13.8094 13.3458 4.8 15.5412 11.2821 4.8
2 24 17.5412 7.8179 -4.8 18.4626 5.2863 -4.8
2 24 17.5412 7.8179 4.8 18.4626 5.2863 4.8
4 16 18.4626 5.2863 -4.8 17.5412 7.8179 -4.8 17.5412 7.8179 4.8 18.4626 5.2863 4.8
4 16 17.17 0 4.8 19.1572 1.3471 4.8 18.4626 5.2863 4.8 12.1409 12.1409 4.8
4 16 4.6532 18.6321 4.8 2 19.1 4.8 0 17.17 4.8 8.412 17.264 4.8
4 16 8.412 17.264 4.8 0 17.17 4.8 12.1409 12.1409 4.8 10.7452 15.9169 4.8
4 16 13.8094 13.3458 4.8 10.7452 15.9169 4.8 12.1409 12.1409 4.8 15.5412 11.2821 4.8
4 16 17.5412 7.8179 4.8 15.5412 11.2821 4.8 12.1409 12.1409 4.8 18.4626 5.2863 4.8
4 16 18.4626 5.2863 -4.8 19.1572 1.3471 -4.8 17.17 0 -4.8 12.1409 12.1409 -4.8
4 16 0 17.17 -4.8 2 19.1 -4.8 4.6532 18.6321 -4.8 8.412 17.264 -4.8
4 16 12.1409 12.1409 -4.8 0 17.17 -4.8 8.412 17.264 -4.8 10.7452 15.9169 -4.8
4 16 12.1409 12.1409 -4.8 10.7452 15.9169 -4.8 13.8094 13.3458 -4.8 15.5412 11.2821 -4.8
4 16 12.1409 12.1409 -4.8 15.5412 11.2821 -4.8 17.5412 7.8179 -4.8 18.4626 5.2863 -4.8
1 16 0 0 10 0 0 17.17 17.17 0 0 0 -5.2 0 48\3-16cylo.dat
1 16 0 0 10 0 0 2.45286 2.45286 0 0 0 -1 0 48\3-16ring6.dat
0 BFC INVERTNEXT
1 16 0 0 10 0 0 14.7171 14.7171 0 0 0 -8 0 48\3-16cylo.dat
2 24 15.145 5.199 10 16.3787 5.0507 10
2 24 13.8135 4.9942 10 15.145 5.199 10
2 24 15.594 3.734 8.5 14.2531 3.6183 8.5
2 24 16.7957 3.3812 8.5 15.594 3.734 8.5
2 24 14.2531 3.6183 8.5 13.8135 4.9942 10
2 24 16.3787 5.0507 10 16.7957 3.3812 8.5
3 16 15.145 5.199 10 13.8135 4.9942 10 14.2531 3.6183 8.5
3 16 15.145 5.199 10 14.2531 3.6183 8.5 15.594 3.734 8.5
3 16 16.3787 5.0507 10 15.594 3.734 8.5 16.7957 3.3812 8.5
3 16 16.3787 5.0507 10 15.145 5.199 10 15.594 3.734 8.5
2 24 15.8634 6.571 10 16.3787 5.0507 10
2 24 13.5971 5.6322 10 13.8135 4.9942 10
2 24 16.7957 3.3812 8.5 17.0223 2.2407 8.5
2 24 14.2531 3.6183 8.5 14.6183 1.5 8.5
2 24 13.8135 4.9942 2 14.2531 3.6183 2
2 24 16.7957 3.3812 4.8 16.3787 5.0507 4.8
2 24 15.8634 6.571 4.8 16.3787 5.0507 4.8
2 24 13.5971 5.6322 2 13.8135 4.9942 2
2 24 16.7957 3.3812 4.8 17.0223 2.2407 4.8
2 24 14.2531 3.6183 2 14.6183 1.5 2
2 24 12.818 1.2 2 14.6183 1.5 2
5 24 12.818 1.2 8.5 12.818 1.2 2 12.818 -1.2 8.5 14.6183 1.5 8.5
2 24 14.6183 1.5 8.5 14.6183 1.5 2
4 16 12.818 1.2 2 12.818 1.2 8.5 14.6183 1.5 8.5 14.6183 1.5 2
2 24 17.17 0 8.5 17.0223 2.2407 8.5
2 24 17.17 0 4.8 17.0223 2.2407 4.8
4 16 17.0223 2.2407 8.5 17.17 0 8.5 17.17 0 4.8 17.0223 2.2407 4.8
2 24 12.818 1.2 8.5 14.6183 1.5 8.5
3 16 14.6183 1.5 8.5 12.818 1.2 8.5 17.17 0 8.5
4 16 14.2531 3.6183 8.5 14.6183 1.5 8.5 17.17 0 8.5 17.0223 2.2407 8.5
4 16 15.594 3.734 8.5 14.2531 3.6183 8.5 17.0223 2.2407 8.5 16.7957 3.3812 8.5
4 16 13.5971 5.6322 10 13.8135 4.9942 10 15.145 5.199 10 15.8634 6.571 10
3 16 15.8634 6.571 10 15.145 5.199 10 16.3787 5.0507 10
4 16 15.8634 6.571 4.8 15.8634 6.571 10 16.3787 5.0507 10 16.3787 5.0507 4.8
4 16 16.3787 5.0507 4.8 16.3787 5.0507 10 16.7957 3.3812 8.5 16.7957 3.3812 4.8
4 16 16.7957 3.3812 4.8 16.7957 3.3812 8.5 17.0223 2.2407 8.5 17.0223 2.2407 4.8
4 16 13.5971 5.6322 10 13.5971 5.6322 2 13.8135 4.9942 2 13.8135 4.9942 10
4 16 13.8135 4.9942 10 13.8135 4.9942 2 14.2531 3.6183 2 14.2531 3.6183 8.5
4 16 14.6183 1.5 8.5 14.2531 3.6183 8.5 14.2531 3.6183 2 14.6183 1.5 2
5 24 15.145 5.199 10 15.594 3.734 8.5 14.2531 3.6183 8.5 16.3787 5.0507 10
5 24 15.594 3.734 8.5 16.3787 5.0507 10 16.7957 3.3812 8.5 15.145 5.199 10
5 24 16.7957 3.3812 4.8 16.7957 3.3812 8.5 16.3787 5.0507 4.8 17.0223 2.2407 8.5
5 24 15.145 5.199 10 14.2531 3.6183 8.5 15.594 3.734 8.5 13.8135 4.9942 10
5 24 16.3787 5.0507 10 16.3787 5.0507 4.8 15.8634 6.571 4.8 16.7957 3.3812 8.5
5 24 14.2531 3.6183 2 14.2531 3.6183 8.5 13.8135 4.9942 10 14.6183 1.5 2
5 24 13.8135 4.9942 10 13.8135 4.9942 2 13.5971 5.6322 10 14.2531 3.6183 2
5 24 17.0223 2.2407 4.8 17.0223 2.2407 8.5 16.7957 3.3812 4.8 17.17 0 8.5
5 24 15.8634 6.571 10 15.8634 6.571 4.8 16.3787 5.0507 10 14.8692 8.585 10

Status:

Needs 2 More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder
Has Uncertified Subfiles

parts/s/7786s02.dat (Needs 2 More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2026-07-05 17:12:02
