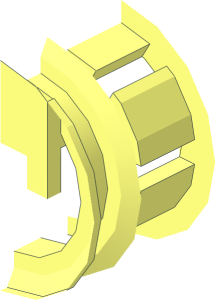

~Wheel Rim 11 x 11 with Stud and Pinhole - Half

File Header:

0 ~Wheel Rim 11 x 11 with Stud and Pinhole - Half
0 Name: s\5806s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // inside cutout
1 16 0 0 -4 0 0 14 -14 0 0 0 -1 0 1-8ering.dat
1 16 0 0 -4 0 0 14 14 0 0 0 1 0 3-8cyli.dat
1 16 0 0 -3 0 0 14 14 0 0 0 1 0 3-8edge.dat
1 16 0 0 -3 0 0 2 2 0 0 0 1 0 3-8con6.dat
1 16 0 0 -2 0 0 2 2 0 0 0 -1 0 3-8ring5.dat
1 16 0 0 2 0 0 10 10 0 0 0 -4 0 3-8cylo.dat
1 16 0 0 2 0 0 2 2 0 0 0 1 0 2-4ring5.dat
1 16 0 0 3 0 0 2 2 0 0 0 -1 0 2-4con6.dat
1 16 0 0 0 0 0 10 -10 0 0 0 2 0 1-8cylo.dat
1 16 0 0 0 0 0 1 -1 0 0 0 1 0 1-8ring9.dat
1 16 0 0 0 0 0 9 -9 0 0 0 -2 0 1-8cylo.dat
1 16 0 0 -2 0 0 3 -3 0 0 0 1 0 1-8ring2.dat
1 16 0 0 -2 6 0 0 0 0 -6 0 1 0 1-8tndis.dat

4 16 7 -11.837 -3 7 -11.837 -4 9.8994 -9.8994 -4 9.8994 -9.8994 -3
4 16 7 -9.478 -2 7 -11.837 -3 9.8994 -9.8994 -3 8.4852 -8.4852 -2
4 16 7 -7.1184 -2 7 -9.478 -2 8.4852 -8.4852 -2 7.071 -7.071 -2
4 16 7 -7.1184 0 7 -7.1184 -2 7.071 -7.071 -2 7.071 -7.071 0
4 16 7 -5.412 0 7 -5.412 -2 7 -7.1184 -2 7 -7.1184 0
3 16 6.3639 -6.3639 0 7 -5.412 0 7.071 -7.071 0
4 16 7 -5.412 0 6.3639 -6.3639 0 6.3639 -6.3639 -2 7 -5.412 -2
4 16 6 -4.2426 -2 7 -5.412 -2 6.3639 -6.3639 -2 4.2426 -4.2426 -2
4 16 6 -4.2426 -2 6 0 -2 7 0 -2 7 -5.412 -2
3 16 7 0 -4 7 -5.412 -2 7 0 -2
4 16 7 -5.412 -2 7 0 -4 7 -11.837 -4 7 -7.1184 -2
4 16 7 -7.1184 -2 7 -11.837 -4 7 -11.837 -3 7 -9.478 -2
4 16 4 -4 -4 0 -4 -4 0 -14 -4 5.3578 -12.9346 -4
4 16 4 -4 -4 5.3578 -12.9346 -4 6 0 -4 4 0 -4
4 16 6 0 -4 5.3578 -12.9346 -4 7 -11.837 -4 7 0 -4
2 24 9.8994 -9.8994 -3 7 -11.837 -3
2 24 7 -11.837 -3 7 -9.478 -2
2 24 7 -11.837 -3 7 -11.837 -4
2 24 7 -5.412 -2 7 0 -2
2 24 7 -5.412 -2 6.3639 -6.3639 -2
2 24 7 -7.1184 -2 7 -9.478 -2
2 24 7 -7.1184 -2 7.071 -7.071 -2
2 24 7 0 -4 7 -11.837 -4
2 24 7 -11.837 -4 5.3578 -12.9346 -4
2 24 5.3578 -12.9346 -4 0 -14 -4
2 24 6.3639 -6.3639 0 7 -5.412 0
2 24 7 -5.412 0 7 -7.1184 0
2 24 7 -7.1184 0 7 -7.1184 -2
2 24 7 -5.412 0 7 -5.412 -2
5 24 9.8994 -9.8994 -4 9.8994 -9.8994 -3 7 -11.837 -3 12.9346 -5.3578 -3
5 24 9.8994 -9.8994 -3 8.4852 -8.4852 -2 7 -9.478 -2 11.0868 -4.5924 -2
5 24 7 -9.478 -2 8.4852 -8.4852 -2 9.8994 -9.8994 -3 7.071 -7.071 -2
5 24 7.071 -7.071 0 7.071 -7.071 -2 7 -7.1184 -2 9.239 -3.827 -2
5 24 6.3639 -6.3639 -2 6.3639 -6.3639 0 7 -5.412 0 3.4443 -8.3151 0

0 // rear
1 16 0 0 14 0 0 14 14 0 0 0 -1 0 1-8chrd.dat
1 16 0 0 14 14 0 0 0 0 14 0 -1 0 1-8chrd.dat
1 16 0 0 14 14 0 0 0 0 -14 0 -1 0 1-8chrd.dat
1 16 0 0 14 0 0 14 -14 0 0 0 -1 0 1-8chrd.dat
1 16 2.1365 -10.825 10 2.1365 0 0 .425 -1 0 0 0 4 rect2p.dat
1 16 7.367 -8.348 10 -.588 0 0 -.393 -1 0 0 0 4 rect2p.dat
1 16 9.1745 -6.13 10 1.2195 1 0 1.825 0 0 0 0 4 rect2p.dat
1 16 10.673 -2.9025 10 -.279 1 0 -1.4025 0 0 0 0 4 rect2p.dat
1 16 10.673 2.9025 10 .279 1 0 -1.4025 0 0 0 0 4 rect2p.dat
1 16 9.1745 6.13 10 1.2195 1 0 -1.825 0 0 0 0 4 rect2p.dat
1 16 7.367 8.348 10 .588 0 0 -.393 1 0 0 0 4 rect2p.dat
1 16 2.1365 10.825 10 2.1365 0 0 -.425 1 0 0 0 4 rect2p.dat
1 16 3.69 -9.391 10 -.583 1 0 1.009 0 0 0 0 4 rect.dat
4 16 5.673 -6.826 14 3.107 -8.382 14 4.273 -10.4 14 6.779 -8.741 14
1 16 6.226 -7.7835 10 -.553 -1 0 .9575 0 0 0 0 4 rect.dat
1 16 6.226 7.7835 10 .553 -1 0 .9575 0 0 0 0 4 rect.dat
4 16 5.673 6.826 14 6.779 8.741 14 4.273 10.4 14 3.107 8.382 14
1 16 3.69 9.391 10 .583 1 0 1.009 0 0 0 0 4 rect.dat
1 16 9.827 0 6 1.125 0 0 0 0 1.5 0 8 0 box3u4p.dat
3 16 0 14 14 0 11.25 14 4.273 10.4 14
4 16 9.8994 9.8994 14 0 14 14 4.273 10.4 14 6.779 8.741 14
3 16 9.8994 9.8994 14 6.779 8.741 14 7.955 7.955 14
4 16 14 0 14 9.8994 9.8994 14 7.955 7.955 14 10.394 4.305 14
3 16 14 0 14 10.394 4.305 14 10.952 1.5 14
3 16 14 0 14 10.952 1.5 14 10.952 -1.5 14
3 16 14 0 14 10.952 -1.5 14 10.394 -4.305 14
4 16 7.955 -7.955 14 9.8994 -9.8994 14 14 0 14 10.394 -4.305 14
3 16 9.8994 -9.8994 14 7.955 -7.955 14 6.779 -8.741 14
4 16 0 -14 14 9.8994 -9.8994 14 6.779 -8.741 14 4.273 -10.4 14
3 16 0 -14 14 4.273 -10.4 14 0 -11.25 14
5 24 7.955 -7.955 6 7.955 -7.955 14 6.779 -8.741 14 10.394 -4.305 14
5 24 10.394 -4.305 6 10.394 -4.305 14 7.955 -7.955 14 10.952 -1.5 14
5 24 10.394 4.305 6 10.394 4.305 14 10.952 1.5 14 7.955 7.955 14
5 24 7.955 7.955 6 7.955 7.955 14 10.394 4.305 14 6.779 8.741 14
4 16 0 -9 6 0 -11.25 6 4.273 -10.4 6 3.107 -8.382 6
4 16 6.779 -8.741 6 7.955 -7.955 6 6.3639 -6.3639 6 5.673 -6.826 6
4 16 6.3639 -6.3639 6 7.955 -7.955 6 10.394 -4.305 6 8.3151 -3.4443 6
4 16 10.394 -4.305 6 10.952 -1.5 6 8.702 -1.5 6 8.3151 -3.4443 6
4 16 8.702 1.5 6 10.952 1.5 6 10.394 4.305 6 8.3151 3.4443 6
4 16 8.3151 3.4443 6 10.394 4.305 6 7.955 7.955 6 6.3639 6.3639 6
4 16 6.3639 6.3639 6 7.955 7.955 6 6.779 8.741 6 5.673 6.826 6
4 16 3.107 8.382 6 4.273 10.4 6 0 11.25 6 0 9 6
2 24 9 0 14 8.702 1.5 14
2 24 9 0 14 8.702 -1.5 14
2 24 3.107 8.382 14 3.4443 8.3151 14
2 24 5.673 6.826 14 3.4443 8.3151 14
2 24 3.107 -8.382 14 3.4443 -8.3151 14
2 24 3.4443 -8.3151 14 5.673 -6.826 14

0 // groove condlines
5 24 0 12 2 4.5924 11.0868 2 3.827 9.239 2 5.3578 12.9346 3
5 24 12 0 -2 11.0866 -4.5922 -2 12.9346 -5.3578 -3 9.239 -3.827 -2
5 24 8.4852 8.4852 -2 11.0866 4.5922 -2 12.9346 5.3578 -3 9.239 3.827 -2
5 24 4.5924 11.0868 2 8.4852 8.4852 2 7.071 7.071 2 9.8994 9.8994 3
5 24 8.4852 8.4852 2 11.0868 4.5924 2 9.239 3.827 2 12.9346 5.3578 3
5 24 11.0868 -4.5924 2 8.4852 -8.4852 2 9.8994 -9.8994 3 7.071 -7.071 2
5 24 11.0866 -4.5922 -2 8.4852 -8.4852 -2 9.8994 -9.8994 -3 7.071 -7.071 -2
5 24 12 0 2 11.0868 -4.5924 2 12.9346 -5.3578 3 9.239 -3.827 2
5 24 8.4852 -8.4852 2 4.5924 -11.0868 2 5.3578 -12.9346 3 3.827 -9.239 2
5 24 4.5922 11.0866 -2 8.4852 8.4852 -2 9.8994 9.8994 -3 7.071 7.071 -2
5 24 0 12 -2 4.5922 11.0866 -2 5.3578 12.9346 -3 3.827 9.239 -2
5 24 4.5924 -11.0868 2 0 -12 2 0 -14 3 0 -10 2
5 24 11.0868 4.5924 2 12 0 2 14 0 3 10 0 2
5 24 11.0866 4.5922 -2 12 0 -2 14 0 -3 10 0 -2
