Unofficial File parts/s/116165s02.dat
File Header:

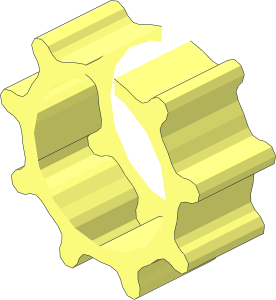

0 ~Technic Gear Stepper with 9 Teeth Outer Part
0 Name: s\116165s02.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2026-07-02 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-07-06 [jb70] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\116165s05.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\116165s05.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\116165s05.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\116165s05.dat
1 16 0 0 0 .76604 -.64279 0 .64279 .76604 0 0 0 1 s\116165s06.dat
1 16 0 0 0 .17365 -.98481 0 .98481 .17365 0 0 0 1 s\116165s06.dat
1 16 0 0 0 -.5 -.86603 0 .86603 -.5 0 0 0 1 s\116165s06.dat
1 16 0 0 0 -.93969 -.34202 0 .34202 -.93969 0 0 0 1 s\116165s06.dat
1 16 0 0 0 -.93969 .34202 0 -.34202 -.93969 0 0 0 1 s\116165s06.dat
1 16 0 0 0 -.5 .86603 0 -.86603 -.5 0 0 0 1 s\116165s06.dat
1 16 0 0 0 .17365 .98481 0 -.98481 .17365 0 0 0 1 s\116165s06.dat
1 16 0 0 0 .76604 .64279 0 -.64279 .76604 0 0 0 1 s\116165s06.dat
4 16 6.49731 -17.85094 9.25 3.5 -18.678 9.25 3.5 -18.678 -9.25 6.49731 -17.85094 -9.25
4 16 -3.5 -18.678 9.25 -6.49731 -17.85094 9.25 -6.49731 -17.85094 -9.25 -3.5 -18.678 -9.25
5 24 0 18.9966 -9.25 0 18.9966 9.25 -2.48235 18.83695 -9.25 2.48235 18.83695 9.25
5 24 6.49731 -17.85094 -9.25 6.49731 -17.85094 9.25 8.77533 -16.85191 -9.25 3.5 -18.678 9.25
5 24 -16.45161 -9.49836 9.25 -16.45161 -9.49836 -9.25 -17.55452 -7.26878 9.25 -15.07218 -11.56818 -9.25
5 24 12.21078 14.55223 -9.25 12.21078 14.55223 9.25 10.2066 16.02555 -9.25 14.00986 12.83438 9.25
5 24 -18.70813 3.29871 9.25 -18.70813 3.29871 -9.25 -18.11986 5.71562 9.25 -18.98193 .82636 -9.25
5 24 18.7081 3.29871 -9.25 18.7081 3.29871 9.25 18.98193 .82636 9.25 18.11986 5.71562 -9.25
5 24 -6.49731 -17.85094 -9.25 -6.49731 -17.85094 9.25 -3.5 -18.678 -9.25 -8.77533 -16.85191 9.25
5 24 16.45159 -9.49823 -9.25 16.45159 -9.49823 9.25 15.07218 -11.56818 9.25 17.55452 -7.26878 -9.25
5 24 -12.2109 14.5523 -9.25 -12.2109 14.5523 9.25 -14.00986 12.83438 -9.25 -10.2066 16.02555 9.25
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Jens Brühl [jb70]
initially submitted the part.
2026-07-05 18:39:22
WORK IN PROGRESS!
Rene Rechthaler [Blechtaler]
made the following comment.
2026-07-05 18:45:11
could be cut in half/quarter, connection to the center doesnt match (should be p16 prim)
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2026-07-05 22:22:22
Work in progress finished!
