Unofficial File parts/s/5811s01.dat
File Header:

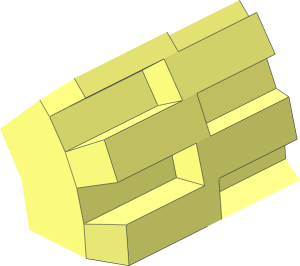

0 ~Tyre 11/ 40 x 11 with Centre Band - 1/8
0 Name: s\5811s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 21.1695 -5.6716 -7.5 .4961 -1 0 1.8524 0 0 0 0 6.5 rect.dat
1 16 17.952 -12.5708 -7.5 1.1 -1 0 1.5708 0 0 0 0 6.5 rect.dat
1 16 21.8328 -1.9096 7.5 .1672 -1 0 1.9096 0 0 0 0 6.5 rect.dat
1 16 19.8627 -9.262 7.5 .8107 -1 0 1.738 0 0 0 0 6.5 rect.dat
1 16 16.1744 -14.8192 7.5 0 -1 .6776 0 0 0.6776 6.5 0 0 rect3.dat
1 16 25.8024 -2.2568 -6.5 .1976 -1 0 2.2568 0 0 0 0 -5.5 rect3.dat
1 16 25.0185 -6.7028 6.5 .5863 -1 0 2.1892 0 0 0 0 5.5 rect3.dat
1 16 23.4741 -10.946 -6.5 .9581 -1 0 2.054 0 0 0 0 -5.5 rect3.dat
1 16 21.216 -14.8564 6.5 1.3 -1 0 1.8564 0 0 0 0 5.5 rect3.dat
1 16 19.1152 -17.5136 -6.5 0 -1 .8008 0 0 .8008 -5.5 0 0 rect2a.dat
1 16 25.8024 -2.2568 0 0 -1 .1976 0 0 2.2568 1 0 0 rect1.dat
1 16 25.0185 -6.7028 0 0 -1 .5863 0 0 2.1892 -1 0 0 rect1.dat
1 16 23.4741 -10.946 0 0 -1 .9581 0 0 2.054 1 0 0 rect1.dat
1 16 21.216 -14.8564 0 0 -1 1.3 0 0 1.8564 -1 0 0 rect1.dat
1 16 19.1152 -17.5136 0 0 -1 .8008 0 0 .8008 1 0 0 rect1.dat
5 24 25.6048 -4.5136 -1 25.6048 -4.5136 1 24.4322 -8.892 1 26 0 1
5 24 22.516 -13 -1 22.516 -13 1 19.916 -16.7128 1 24.4322 -8.892 1
5 24 24.4322 -8.892 1 24.4322 -8.892 -1 22.516 -13 -1 25.6048 -4.5136 -1
5 24 19.916 -16.7128 1 19.916 -16.7128 -1 18.3144 -18.3144 -1 22.516 -13 -1
5 24 26 0 1 26 0 -1 25.6048 -4.5136 1 26 1 1
4 16 19.916 -16.7128 -1 16.852 -14.1416 -1 19.052 -11 -1 22.516 -13 -1
4 16 19.052 -11 1 22.516 -13 1 24.4322 -8.892 1 20.6734 -7.524 1
4 16 24.4322 -8.892 -1 20.6734 -7.524 -1 21.6656 -3.8192 -1 25.6048 -4.5136 -1
4 16 22 0 1 21.6656 -3.8192 1 25.6048 -4.5136 1 26 0 1
4 16 16.852 -14.1416 1 15.4968 -15.4968 1 18.3144 -18.3144 1 19.916 -16.7128 1
4 16 21.6656 -3.8192 -1 21.6656 -3.8192 -14 25.6048 -4.5136 -12 25.6048 -4.5136 -1
4 16 22 0 14 22 0 1 26 0 1 26 0 12
4 16 25.6048 -4.5136 1 21.6656 -3.8192 1 21.6656 -3.8192 14 25.6048 -4.5136 12
4 16 20.6734 -7.524 14 20.6734 -7.524 1 24.4322 -8.892 1 24.4322 -8.892 12
4 16 24.4322 -8.892 -12 20.6734 -7.524 -14 20.6734 -7.524 -1 24.4322 -8.892 -1
4 16 19.052 -11 -1 19.052 -11 -14 22.516 -13 -12 22.516 -13 -1
4 16 22.516 -13 1 19.052 -11 1 19.052 -11 14 22.516 -13 12
4 16 16.852 -14.1416 14 16.852 -14.1416 1 19.916 -16.7128 1 19.916 -16.7128 12
4 16 19.916 -16.7128 -12 16.852 -14.1416 -14 16.852 -14.1416 -1 19.916 -16.7128 -1
4 16 25.6048 -4.5136 -12 21.6656 -3.8192 -14 22 0 -14 26 0 -12
4 16 22.516 -13 -12 19.052 -11 -14 20.6734 -7.524 -14 24.4322 -8.892 -12
4 16 19.052 -11 14 16.852 -14.1416 14 19.916 -16.7128 12 22.516 -13 12
4 16 21.6656 -3.8192 14 20.6734 -7.524 14 24.4322 -8.892 12 25.6048 -4.5136 12
4 16 18.3144 -18.3144 -12 15.4968 -15.4968 -14 16.852 -14.1416 -14 19.916 -16.7128 -12
2 24 20.6734 -7.524 1 24.4322 -8.892 1
2 24 25.6048 -4.5136 1 21.6656 -3.8192 1
2 24 21.6656 -3.8192 14 25.6048 -4.5136 12
2 24 19.916 -16.7128 12 16.852 -14.1416 14
2 24 22.516 -13 1 19.052 -11 1
2 24 16.852 -14.1416 1 19.916 -16.7128 1
2 24 24.4322 -8.892 12 20.6734 -7.524 14
2 24 19.052 -11 -14 22.516 -13 -12
2 24 21.6656 -3.8192 -14 25.6048 -4.5136 -12
2 24 24.4322 -8.892 -12 20.6734 -7.524 -14
2 24 19.052 -11 14 22.516 -13 12
2 24 22 0 1 26 0 1
2 24 16.852 -14.1416 -14 19.916 -16.7128 -12
2 24 22 0 -14 26 0 -12
2 24 19.052 -11 -14 20.6734 -7.524 -14
2 24 21.6656 -3.8192 -14 22 0 -14
2 24 21.6656 -3.8192 14 20.6734 -7.524 14
2 24 19.052 -11 14 16.852 -14.1416 14
2 24 15.4968 -15.4968 -14 16.852 -14.1416 -14
2 24 16.852 -14.1416 -1 19.916 -16.7128 -1
2 24 22.516 -13 -1 19.052 -11 -1
2 24 20.6734 -7.524 -1 24.4322 -8.892 -1
2 24 25.6048 -4.5136 -1 21.6656 -3.8192 -1
0 // sidewall
1 16 0 0 14 14 0 0 0 0 -14 0 -1 0 1-8ndis.dat
1 16 0 0 -14 14 0 0 0 0 -14 0 1 0 1-8ndis.dat
4 16 22 0 -14 21.6656 -3.8192 -14 20.6734 -7.524 -14 14 0 -14
4 16 20.6734 -7.524 -14 19.052 -11 -14 16.852 -14.1416 -14 14 0 -14
4 16 15.4968 -15.4968 -14 14 -14 -14 14 0 -14 16.852 -14.1416 -14
4 16 14 0 14 14 -14 14 15.4968 -15.4968 14 16.852 -14.1416 14
4 16 14 0 14 16.852 -14.1416 14 19.052 -11 14 20.6734 -7.524 14
4 16 14 0 14 20.6734 -7.524 14 21.6656 -3.8192 14 22 0 14
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2026-07-07 12:33:56
used new mesh from the meshes thread as base, but recreated 87697 instead (not sure if that one is correct)
