File Detail parts/s/57515s01.dat

Unofficial File parts/s/57515s01.dat

File Header:

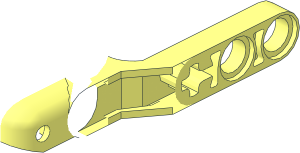

0 ~Technic Suspension Arm  2 x  6 - Half
0 Name: s\57515s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2018-03-26 [cwdee] Replace t04ounit with identical r04o1000
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2022-10-14 [Cheenzo] Removed unnecessary surfaces and added missing edges
0 !HISTORY 2023-10-08 [MagFors] Closed thin gaps
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2024-10-26 [jb70] Using mirrored subfile s\57515s02.dat
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
0 !HISTORY 2026-07-15 [Holly-Wood] Moved geometry

Show contents

0 // Adapted from Don Sutter 32195

0 // Front
2 24 8 7 0 10 7 0
3 16 7.3912 7 3.0616 8 7 0 8 3.8 0
4 16 8 3.8 0 8 3 0 7.4035 3 3 7.3912 7 3.0616
1 16 8 0 0 0 1 -.59655 -3 0 0 0 0 3 2-4ndis.dat
1 16 8 0 0 0 1 -.59655 -3 0 0 0 0 3 2-4edge.dat
4 16 7.3912 3.8 -3.0616 7.4035 3 -3 8 3 0 8 3.8 0
1 16 8 0 0 0 1 -.59655 3 0 0 0 0 -3 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 3.8 0 0 0 8 0 3.2 0 -8 0 0 1-4cyls.dat
1 16 0 3 0 0 0 10 0 4 0 -10 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 -3 0 0 0 4 0 -5 0 4 0 0 r04o1000.dat
0 BFC INVERTNEXT
1 16 0 -3 0 4 0 0 0 -5 0 0 0 -4 r04o1000.dat
1 16 10 0 0 0 -1 -.59655 3 0 0 0 0 -3 2-4ndis.dat
0 BFC INVERTNEXT
1 16 8 0 0 0 2 -.59655 -3 0 0 0 0 -3 2-4cylo.dat
4 16 9.239 3 -3.827 9.4035 0 -3 9.4035 -3 -3 9.239 -3 -3.827
3 16 9.239 3 -3.827 9.4035 3 -3 9.4035 0 -3
5 24 9.239 3 -3.827 9.239 -3 -3.827 9.4035 0 -3 7.071 0 -7.071
3 16 10 7 0 10 3 3 10 3 0
1 16 10 0 0 0 -1 0 3 0 0 0 0 3 2-4ndis.dat
1 16 10 0 0 0 1 0 -3 0 0 0 0 3 2-4edge.dat
0 BFC INVERTNEXT
1 16 8 0 0 0 2 0 -3 0 0 0 0 3 2-4cyli.dat
0 BFC INVERTNEXT
1 16 8 0 0 0 -.59655 0 0 0 -3 -3 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 8 0 0 0 -.59655 0 0 0 3 -3 0 0 1-4cyls2.dat
4 16 7.4035 0 -3 7.4035 3 -3 7.3912 3.8 -3.0616 7.3912 -3 -3.0616
3 16 7.3912 -3 -3.0616 7.4035 -3 -3 7.4035 0 -3
3 16 7.4035 0 3 7.4035 -3 3 7.3912 -3 3.0616
4 16 7.4035 3 3 7.4035 0 3 7.3912 -3 3.0616 7.3912 7 3.0616
1 16 0 7 0 2 0 0 0 -1 -.8 0 0 -2 1-4ring4.dat

1 16 0 7 0 10 0 0 0 1 -4 0 0 -10 1-4edge.dat
1 16 0 7 0 8 0 0 0 1 -3.2 0 0 -8 1-4edge.dat
1 16 0 7 0 8 0 0 0 -1 0 0 0 8 1-4edge.dat
1 16 0 7 0 8 0 0 0 -1 0 0 0 8 3-16tndis.dat
1 16 0 -8 0 0 0 4 0 -1 0 4 0 0 2-4disc.dat
0 BFC INVERTNEXT
1 16 0 -3 0 0 0 8 0 10 0 8 0 0 3-16cyli.dat
1 16 0 -3 0 10 0 0 0 0 -6 0 -10 0 1-8sphe.dat

0 BFC INVERTNEXT
1 16 0 -3 0 0 0 8 0 6.8 0 -8 0 0 3-16cyli.dat
1 16 0 -3 0 0 0 10 0 6 0 -10 0 0 3-16cyli.dat

5 24 8 3 0 8 3.8 0 7.4035 3 3 7.4035 3 -3

1 16 0 -3 12 10 0 0 0 0 -6 0 12.9593 0 3-16cyls.dat
1 16 0 -6 0 0 0 10 0 13 0 10 0 0 1-16cylo.dat
1 16 0 -3 0 10 0 0 0 0 -6 0 12 0 1-4cyli.dat

1 16 0 -3 12 0 0 10 -6 0 0 0 8 0 1-16cyli.dat
2 24 9.8528 -3.4443 11.6849 10 -3 11.5969
2 24 9.239 -5.2962 12.9225 9.8528 -3.4443 11.6849
2 24 8.0497 -6.3639 13.6361 7.071 -7.2426 14.9509
2 24 8.0497 -6.3639 13.6361 9.239 -5.2962 12.9225
2 24 4.3964 -8.3151 16.5557 3.827 -8.5434 17.7038
2 24 4.3964 -8.3151 16.5557 7.071 -7.2426 14.9509
2 24 0 -9 20 3.827 -8.5434 17.7038
2 24 10 -3 11.5969 10 -3.4443 11.6849
3 16 9.8528 -3.4443 11.6849 10 -3 11.5969 10 -3.4443 11.6849
5 24 3.827 -6 9.239 3.827 7 9.239 .0024 7 10.0026 6 -6 7.76

0 BFC INVERTNEXT
1 16 5 .5 10.38 0 1 0 -6.5 0 0 0 -1 1.62 box2-7.dat
2 24 6 -6 7.76 6 7 7.76
2 24 6 -6 7.76 3.827 -6 9.239
2 24 6 7 7.76 3.827 7 9.239
4 16 3.827 -6 9.239 6 -6 7.76 6 7 7.76 3.827 7 9.239
1 16 0 7 0 0 0 2 0 -1 0 2 0 0 1-16ring4.dat

3 16 6 -6 13 6 -6 7.76 0 -6 10
3 16 4 7 13 10 7 14.588 6 7 11
4 16 10 7 14.588 8 7 7.3912 6 7 7.76 6 7 11
4 16 8 7 0 8 7 7.3912 10 7 14.588 10 7 0
4 16 10 0 3 10 0 11 10 -3 11.5969 10 -3 3
4 16 10 0 3 10 3 3 10 3.4443 11.6849 10 0 11
4 16 10 6.3639 13.6361 10 3.4443 11.6849 10 3 3 10 7 0
3 16 6 7 7.76 8 7 7.3912 3.0616 7 7.3912
3 16 6 7 7.76 3.0616 7 7.3912 3.827 7 9.239
4 16 9.8528 -3.4443 11.6849 10 -3.4443 11.6849 10 -6.3639 13.6361 9.239 -5.2962 12.9225
3 16 9.239 -5.2962 12.9225 10 -6.3639 13.6361 8.0497 -6.3639 13.6361

2 24 10 7 0 10 7 14.588
3 16 10 7 0 10 7 14.588 10 6.3639 13.6361
2 24 10 8.3151 16.5557 10 7 14.588
5 24 10 -3.4443 11.6849 9.8528 -3.4443 11.6849 10 -3 11.5969 9.239 -5.2962 12.9225
5 24 8.0497 -6.3639 13.6361 10 -6.3639 13.6361 10 -8.3151 16.5557 10 -3.4443 11.6849

1 16 10 0 20 0 -1 0 -9 0 0 0 0 -9 3-16edge.dat

0 // Back
2 24 14 -3.44 108.31 17 -3.44 108.31
2 24 14 -3.44 108.31 14 0 108.31
2 24 17 -3.44 108.31 17 0 108.31
2 24 10 9 92 10 9 88
2 24 6 -4 40.198 6 9 40.198
2 24 6 -4 29 6 -4 40.198
2 24 12 9 92 10 9 92
2 24 12 9 92 12 0 92
2 24 10 9 92 10 0 92
2 24 14 9 100 14 9 92
2 24 10 0 71 10 5.36 71
2 24 20 5.36 71 20 0 71
2 24 20 9 50 20 6.36 50
2 24 20 6.36 50 10 6.36 36
2 24 10 6.36 36 10 9 36
2 24 10 9 36 20 9 50
2 24 20 -9 50 20 -6.36 50
2 24 20 -6.36 50 10 -6.36 36
2 24 10 -6.36 36 10 -9 36
2 24 10 -9 36 20 -9 50
2 24 10 -4 46 10 9 46
2 24 10 -4 46 6 -4 40.198
2 24 10 9 46 6 9 40.198
2 24 8 6.36 30 8 6.36 36
2 24 8 -6.36 36 8 -6.36 30
2 24 10 6.36 30 10 6.36 36
2 24 10 -6.36 36 10 -6.36 30
2 24 14 6.36 46 8 6.36 36
2 24 8 -6.36 36 14 -6.36 46
2 24 14 -6.36 46 14 -6.36 50
2 24 14 6.36 50 14 6.36 46
2 24 10 0 109 10 0 108
2 24 10 0 108 12 3.44 108.31
2 24 12 0 108 12 3.44 108.31
2 24 20 9 50 20 9 100
2 24 10 9 20 10 9 36
2 24 6 9 20 6 9 40.198
2 24 10 9 46 10 9 72
2 24 20 -9 50 20 -9 100
2 24 10 -9 46 10 -9 100
2 24 10 -9 46 10 -4 46
2 24 10 -9 20 10 -9 36
2 24 6 0 29 6 -4 29

1 16 20 0 60 0 -10 0 1 0 0 0 0 1 axlehol4.dat
1 16 20 0 60 0 -1 0 3 0 0 0 0 -3 2-4ring2.dat
1 16 10 0 60 0 1 0 3 0 0 0 0 -3 2-4ring2.dat
1 16 20 0 70 0 -10 0 1 0 0 0 0 1 npeghol5.dat
1 16 10 0 80 0 1 0 0 0 -1 -1 0 0 peghole4.dat
0 BFC INVERTNEXT
1 16 12 0 80 0 6 0 0 0 -6 -6 0 0 4-4cyli.dat
1 16 20 0 80 0 -1 0 0 0 -1 1 0 0 peghole.dat
1 16 20 0 80 0 -1 0 0 0 -1 1 0 0 4-4ring8.dat
1 16 10 0 80 0 1 0 -1 0 0 0 0 -1 1-4ring8.dat
1 16 10 0 80 0 1 0 0 0 -8 8 0 0 1-4ndis.dat
1 16 20 0 80 0 -1 0 0 0 9 -9 0 0 1-4ndis.dat
1 16 10 0 100 0 1 0 0 0 -8 -8 0 0 1-4ndis.dat
1 16 10 0 60 0 1 0 9 0 0 0 0 -9 2-4ndis.dat
1 16 20 0 100 0 -1 0 0 0 -1 1 0 0 peghole.dat
0 BFC INVERTNEXT
1 16 18 0 100 0 -6 0 0 0 -6 6 0 0 4-4cyli.dat
1 16 20 0 100 0 -1 0 0 0 -1 1 0 0 4-4ring8.dat
0 BFC INVERTNEXT
1 16 10 0 100 0 2 0 0 0 -8 -8 0 0 2-4cyli.dat
1 16 12 0 100 0 1 0 0 0 -2 -2 0 0 4-4ring3.dat
1 16 12 0 100 0 1 0 1 0 0 0 0 1 3-16ring8.dat
1 16 12 0 100 0 1 0 8 0 0 0 0 -8 1-4ndis.dat
1 16 12 8.5 96 0 1 0 .5 0 0 0 0 -4 rect1.dat
1 16 10 0 100 0 1 0 0 0 -1 1 0 0 1-4ring8.dat
1 16 17 0 100 0 1 0 0 0 .69231 .69231 0 0 1-4ring12.dat
1 16 14 0 100 0 -1 0 0 0 .69231 .69231 0 0 1-4ring12.dat
1 16 17 0 100 0 3 0 -9 0 0 0 0 9 2-4cyli.dat
1 16 17 0 100 0 1 0 9 0 0 0 0 9 1-4edge.dat
1 16 14 0 100 0 1 0 9 0 0 0 0 9 1-4edge.dat
1 16 14 0 100 0 3 0 -9 0 0 0 0 9 3-16cyli.dat
1 16 14 0 100 0 3 0 8.31 0 0 0 0 8.31 1-4cyli.dat
1 16 10 0 100 0 4 0 -9 0 0 0 0 9 1-4cyli.dat
1 16 12 0 100 0 2 0 0 0 9 9 0 0 1-4cyli.dat
1 16 17 0 100 0 1 0 0 0 -9 9 0 0 1-16edge.dat
1 16 14 0 100 0 1 0 0 0 -9 9 0 0 1-16edge.dat
1 16 17 0 100 0 1 0 0 0 -9 9 0 0 1-16chrd.dat
1 16 14 0 100 0 -1 0 0 0 -9 9 0 0 1-16chrd.dat
1 16 12 0 100 0 -5.226 0 8.31492 0 3.44415 -3.44415 0 8.31492 1-16cyls2.dat
1 16 10 0 100 0 1 5.226 0 0 9 9 0 0 1-16edge.dat
1 16 10 0 100 0 1 5.226 0 0 9 9 0 0 1-16chrd.dat
4 16 14 0 108.31 14 -3.44 108.31 17 -3.44 108.31 17 0 108.31

3 16 17 0 109 17 0 108.31 17 -3.44 108.31
3 16 14 -3.44 108.31 14 0 108.31 14 0 109
3 16 12 3.44 108.31 10 0 108 10 0 109
3 16 12 3.0615 107.391 12 0 108 12 3.44 108.31
3 16 12 0 108 10 0 108 12 3.44 108.31
4 16 10 -8 88 10 -8 92 10 9 92 10 9 88
4 16 10 9 51 10 9 46 10 -9 46 10 -9 51
4 16 6 9 40.198 6 9 29 6 -4 29 6 -4 40.198
4 16 10 9 92 10 0 92 12 0 92 12 9 92
4 16 12 9 92 12 9 100 14 9 100 14 9 92
4 16 14 9 72 12 9 72 12 9 88 14 9 88
4 16 20 9 72 17 9 72 17 9 88 20 9 88
4 16 20 9 88 10 9 88 10 9 92 20 9 92
4 16 20 9 50 10 9 46 10 9 72 20 9 72
4 16 10 9 20 6 9 20 6 9 40.198 10 9 46
4 16 20 6.36 50 14 6.36 46 8 6.36 36 10 6.36 36
3 16 14 6.36 50 14 6.36 46 20 6.36 50
3 16 20 9 50 10 9 36 10 9 46
4 16 10 -9 36 20 -9 50 10 -9 46 2.929 -9 35.7512
4 16 10 -6.36 36 8 -6.36 36 14 -6.36 46 20 -6.36 50
3 16 14 -6.36 46 14 -6.36 50 20 -6.36 50
4 16 20 9 92 17 9 92 17 9 100 20 9 100
4 16 20 -9 100 10 -9 100 10 -9 46 20 -9 50
1 16 20 0 90 0 -3 0 1 0 0 0 0 1 npeghol2.dat
0 BFC INVERTNEXT
1 16 15.5 9 96 1.5 0 0 0 -.69 0 0 0 -4 box4-4a.dat
0 BFC INVERTNEXT
1 16 15.5 9 80 1.5 0 0 0 -.685 0 0 0 -8 box5.dat
0 BFC INVERTNEXT
1 16 20 5.36 70 0 -10 0 1 0 0 0 0 1 8\1-4cylo.dat
1 16 20 5.36 70 0 -1 0 1 0 0 0 0 1 8\1-4ndis.dat
1 16 10 5.36 70 0 1 0 1 0 0 0 0 1 8\1-4ndis.dat
4 16 20 0 71 10 0 71 10 5.36 71 20 5.36 71

4 16 10 0 71 10 0 72 10 9 72 10 6.36 71
4 16 10 6.36 71 10 9 72 10 9 70 10 6.36 70
1 16 20 0 80 0 -10 0 0 0 -1 -1 0 0 npeghol18.dat
1 16 20 0 80 0 -1 0 -9 0 0 0 0 -9 1-8ndis.dat
1 16 10 0 80 0 1 0 -9 0 0 0 0 -9 1-8ndis.dat
4 16 10 -6.36 36 10 -9 36 10 -9 30 10 -6.36 30
4 16 10 6.3639 30 10 9 30 10 9 36 10 6.36 36
4 16 20 6.36 50 10 6.36 36 10 9 36 20 9 50
4 16 20 -6.36 50 20 -9 50 10 -9 36 10 -6.36 36
4 16 20 6.36 70 20 9 70 20 9 71 20 6.36 71
4 16 10 -9 80 10 -9 100 10 -8 100 10 -8 80
4 16 10 9 46 6 9 40.198 6 -4 40.198 10 -4 46

3 16 0 -4 31.51 6 -4 40.198 6 -4 29
0 BFC INVERTNEXT
1 16 0 -9 60.47 10 0 -10 0 5 0 -14.48 0 -14.48 48\1-8cylo.dat
1 16 0 -9 60.47 10 0 -10 0 1 0 -14.48 0 -14.48 48\1-8tndis.dat
3 16 10 -9 36 2.929 -9 35.7512 10 -9 20
1 16 0 -4 60.47 10 0 -10 0 -1 0 -14.48 0 -14.48 48\1-8ndis.dat
1 16 6 0 20 0 1 0 9 0 0 0 0 9 1-4ndis.dat
1 16 6 0 20 0 -1 0 9 0 0 0 0 9 1-4edge.dat

1 16 12 0 100 0 1 0 0 0 -8 -8 0 0 2-4edge.dat
1 16 10 0 100 0 1 0 0 0 -8 -8 0 0 2-4edge.dat
1 16 12 0 100 0 1 0 0 0 -6 -6 0 0 4-4edge.dat
1 16 20 0 100 0 1 0 9 0 0 0 0 9 2-4edge.dat
1 16 12 0 100 0 1 0 9 0 0 0 0 9 3-16edge.dat
1 16 10 0 100 0 1 0 0 0 -9 9 0 0 1-4edge.dat
1 16 14 0 100 0 1 0 8.31 0 0 0 0 8.31 1-4edge.dat
1 16 17 0 100 0 1 0 8.31 0 0 0 0 8.31 1-4edge.dat

4 16 10 6.36 30 10 6.36 36 8 6.36 36 8 6.36 30
4 16 10 -6.36 36 10 -6.36 30 8 -6.36 30 8 -6.36 36

5 24 12 0 109 10 0 109 12 3.44 108.31 12 -4 109

Status:

Needs 2 More Votes (F)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

Willy Tschager [Holly-Wood]

initially submitted the part.

2026-07-15 16:47:36

* Further subbed for reinforcement
