File Detail parts/s/7169s01.dat

Unofficial File parts/s/7169s01.dat

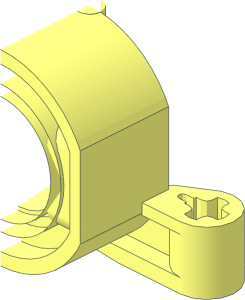

~Technic Steering Wheel Bearing with 2 Towballs and 2 Axleholes Half

File Header:

0 ~Technic Steering Wheel Bearing with 2 Towballs and 2 Axleholes Half
0 Name: s\7169s01.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2026-07-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-07-22 [jb70] File preparation for LDraw Parts Tracker
