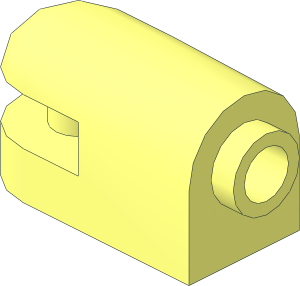

Brick 1 x 2 Round Curved with Side Stud and Bar

File Header:

0 Brick  1 x  2 Round Curved with Side Stud and Bar
0 Name: 7534.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Brick

Show contents

1 16 0 4 0 0 0 1 0 -1 0 -1 0 0 stud3.dat
1 16 -3 -1 0 0 0 7 0 5 0 6 0 0 box2-7.dat
4 16 -10 8 -10 20 8 -10 0 0 -10 -10 0 -10
4 16 -10 8 -10 -10 8 -8 16 8 -6 20 8 -10
0 BFC INVERTNEXT
1 16 -10 -4 0 0 10 0 0 0 4 10 0 0 box3u4a.dat
2 24 20 8 -10 -10 8 -10
2 24 -10 8 -6 16 8 -6
4 16 -10 8 -6 -10 4 -6 4 4 -6 16 8 -6
3 16 -10 8 -6 16 8 -6 -10 8 -8

1 16 -10 8 0 0 0 -2 0 -1 0 2 0 0 2-4ring3.dat
1 16 -10 8 0 0 0 -2 0 -1 0 2 0 0 2-4ring4.dat
0 BFC INVERTNEXT
1 16 -10 4 0 0 0 -6 0 4 0 6 0 0 2-4cylo.dat
1 16 -10 4 0 0 0 -6 0 -1 0 6 0 0 2-4chrd.dat
1 16 -10 0 0 0 0 -10 0 8 0 10 0 0 2-4cylo.dat
4 16 20 8 10 -10 8 10 -10 0 10 0 0 10
4 16 20 8 10 16 8 6 -10 8 8 -10 8 10
2 24 -10 8 10 20 8 10
2 24 16 8 6 -10 8 6
4 16 16 8 6 4 4 6 -10 4 6 -10 8 6
3 16 16 8 6 -10 8 6 -10 8 8
1 16 20 -6 0 0 -1 0 0 0 -6 -6 0 0 4-4ndis.dat

1 16 20 -6 0 0 -1 0 0 0 -10 -10 0 0 1-8chrd.dat
1 16 20 -6 0 0 -1 0 -10 0 0 0 0 -10 1-8chrd.dat
1 16 20 -6 0 0 -1 0 0 0 -10 10 0 0 1-8chrd.dat
1 16 20 -6 0 0 -1 0 -10 0 0 0 0 10 1-8chrd.dat

4 16 20 -6 -10 20 -6 -6 20 -12 -6 20 -13.071 -7.071
4 16 20 -16 0 20 -13.071 -7.071 20 -12 -6 20 -12 0
4 16 20 -16 0 20 -12 0 20 -12 6 20 -13.071 7.071
4 16 20 -13.071 7.071 20 -12 6 20 -6 6 20 -6 10
4 16 20 -6 -6 20 -6 -10 20 8 -10 20 0 -6
4 16 20 0 -6 20 8 -10 20 8 10 20 0 6
4 16 20 0 6 20 8 10 20 -6 10 20 -6 6
2 24 16 -6 -6 16 8 -6
4 16 4 -8 -6 16 -6 -6 16 8 -6 4 4 -6
2 24 16 8 6 16 -6 6
4 16 4 4 6 16 8 6 16 -6 6 4 -8 6
1 16 4 -6 0 0 -1 0 0 0 -6 6 0 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 4 -6 0 0 12 0 0 0 -6 6 0 0 2-4cylo.dat
1 16 16 -6 0 0 1 0 0 0 -2 2 0 0 2-4ring2.dat
1 16 16 -6 0 0 1 0 0 0 4 4 0 0 2-4ndis.dat
4 16 16 -6 -6 16 -6 -4 16 -2 -4 16 8 -6
4 16 16 8 6 16 8 -6 16 -2 -4 16 -2 4
4 16 16 -6 6 16 8 6 16 -2 4 16 -6 4
2 24 16 8 -6 16 8 6
0 BFC INVERTNEXT
1 16 16 -6 0 0 4 0 4 0 0 0 0 4 4-4cyli.dat
1 16 20 -6 0 0 -1 0 6 0 0 0 0 6 4-4edge.dat
1 16 16 -6 0 0 -1 0 4 0 0 0 0 4 4-4edge.dat
1 16 20 -6 0 0 -1 0 1 0 0 0 0 1 stud2a.dat
4 16 20 8 10 20 8 -10 16 8 -6 16 8 6
1 16 20 -6 0 0 -1 0 0 0 -10 10 0 0 2-4edge.dat
2 24 20 -6 -10 20 8 -10
4 16 0 0 -10 20 8 -10 20 -6 -10 0 -8 -10
2 24 20 8 10 20 -6 10
4 16 0 -8 10 20 -6 10 20 8 10 0 0 10
2 24 20 8 10 20 8 -10

1 16 -10 -8 0 0 0 -10 0 1 0 -10 0 0 2-4edge.dat
1 16 -10 -8 0 0 0 -10 0 -1 0 -10 0 0 2-4chrd.dat
1 16 -10 0 0 0 0 -10 0 1 0 -10 0 0 2-4chrd.dat
1 16 0 -8 0 0 -10 0 0 0 -8 -10 0 0 2-4cyli.dat

1 16 -10 -8 0 0 -10 0 0 0 -8 -10 0 0 2-8sphe.dat
1 16 -10 0 0 4 0 0 0 -8 0 0 0 4 4-4cylo.dat

0 // transition 8x10 to 10x10 cyli
3 16 0 -8 -10 20 -6 -10 20 -9.827 -9.239
3 16 20 -9.827 -9.239 0 -11.0616 -9.239 0 -8 -10
5 24 0 -8 -10 20 -9.827 -9.239 20 -6 -10 0 -11.0616 -9.239
3 16 20 -13.071 -7.071 0 -13.6568 -7.071 0 -11.0616 -9.239
3 16 0 -11.0616 -9.239 20 -9.827 -9.239 20 -13.071 -7.071
5 24 0 -11.0616 -9.239 20 -13.071 -7.071 0 -13.6568 -7.071 20 -9.827 -9.239
3 16 20 -15.239 -3.827 0 -15.3912 -3.827 0 -13.6568 -7.071
3 16 0 -13.6568 -7.071 20 -13.071 -7.071 20 -15.239 -3.827
5 24 0 -13.6568 -7.071 20 -15.239 -3.827 0 -15.3912 -3.827 20 -13.071 -7.071
3 16 0 -15.3912 -3.827 20 -15.239 -3.827 20 -16 0
3 16 20 -16 0 0 -16 0 0 -15.3912 -3.827
5 24 20 -16 0 0 -15.3912 -3.827 0 -16 0 20 -15.239 -3.827
3 16 0 -15.3912 3.827 0 -16 0 20 -16 0
3 16 20 -16 0 20 -15.239 3.827 0 -15.3912 3.827
5 24 20 -16 0 0 -15.3912 3.827 20 -15.239 3.827 0 -16 0
3 16 0 -13.6568 7.071 0 -15.3912 3.827 20 -15.239 3.827
3 16 20 -15.239 3.827 20 -13.071 7.071 0 -13.6568 7.071
5 24 0 -13.6568 7.071 20 -15.239 3.827 0 -15.3912 3.827 20 -13.071 7.071
3 16 0 -11.0616 9.239 0 -13.6568 7.071 20 -13.071 7.071
3 16 20 -13.071 7.071 20 -9.827 9.239 0 -11.0616 9.239
5 24 20 -13.071 7.071 0 -11.0616 9.239 20 -9.827 9.239 0 -13.6568 7.071
3 16 20 -9.827 9.239 20 -6 10 0 -8 10
3 16 0 -8 10 0 -11.0616 9.239 20 -9.827 9.239
5 24 20 -9.827 9.239 0 -8 10 20 -6 10 0 -11.0616 9.239
5 24 20 -6 -10 0 -8 -10 20 -4.6864 -10 0 -11.0616 -9.239
5 24 20 -9.827 -9.239 0 -11.0616 -9.239 20 -13.071 -7.071 0 -8 -10
5 24 20 -13.071 -7.071 0 -13.6568 -7.071 20 -9.827 -9.239 20 -15.239 -3.827
5 24 20 -15.239 -3.827 0 -15.3912 -3.827 20 -13.071 -7.071 20 -16 0
5 24 20 -16 0 0 -16 0 20 -15.239 3.827 0 -15.3912 -3.827
5 24 20 -15.239 3.827 0 -15.3912 3.827 20 -16 0 0 -13.6568 7.071
5 24 20 -13.071 7.071 0 -13.6568 7.071 0 -15.3912 3.827 0 -11.0616 9.239
5 24 20 -9.827 9.239 0 -11.0616 9.239 0 -8 10 0 -13.6568 7.071
5 24 20 -6 10 0 -8 10 20 -4.6864 10 20 -9.827 9.239

5 24 0 -11.0616 9.239 0 -13.6568 7.071 -10 -13.6568 7.071 20 -13.071 7.071
5 24 0 -15.3912 -3.827 0 -13.6568 -7.071 20 -15.239 -3.827 -10 -13.6568 -7.071
5 24 0 -13.6568 -7.071 0 -11.0616 -9.239 20 -13.071 -7.071 -10 -11.0616 -9.239
5 24 0 -8 10 0 -11.0616 9.239 20 -9.827 9.239 -10 -11.0616 9.239
5 24 0 -13.6568 7.071 0 -15.3912 3.827 20 -15.239 3.827 -10 -15.3912 3.827
5 24 0 -11.0616 -9.239 0 -8 -10 20 -9.827 -9.239 -10 -8 -10

Status:

Needs 2 More Votes (N)

Current Votes:

None

Official parents and subparts

Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2026-08-02 06:04:24

Origin and orientation?
Description?

Magnus Forsberg [MagFors]

submitted a new version of the part (all votes reset).

2026-08-02 06:27:13

Jeff Jones [notmaster]

made the following comment.

2026-08-02 11:42:57

origin in the bar

maybe arm limb in the keywords

Magnus Forsberg [MagFors]

posted a vote of Hold

2026-08-02 12:04:24

This is wrong. I need to figure out where. It is 2 ldu too tall.

Magnus Forsberg [MagFors]

submitted a new version of the part (all votes reset).

2026-08-02 13:06:12

I see no other solution than a transition from a circle to an oval.

Rene Rechthaler [Blechtaler]

made the following comment.

2026-08-02 20:01:09

would some partial prims help?
like slanted cyls
1 16 0 -8 0 0 20 0 -8 2 0 0 0 10 1-4cyls.dat
1 16 20 -6 0 0 -20 0 10 0 0 0 0 10 1-4cyls2.dat
or
1 16 0 -8 0 0 20 0 8 0 0 0 0 10 1-4cyls2.dat
1 16 20 -6 0 0 -20 0 -10 -2 0 0 0 10 1-4cyls.dat
alternatively you could replace the transition triangles with 1-16cone
would a small hidden inside cone help with prim subst?
