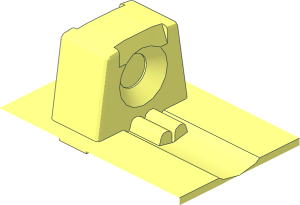

0 ~Click Lock Hinge Single Finger with Double Lock for Hinge Tile 1 x 4
0 Name: s\95120s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP To use place 1 LDu below top surface centered on stud location.
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
0 !HISTORY 2026-07-22 [MagFors] used subfile, adapted to lo-res
Show contents
0 // Common part with 44822s01
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44822s02.dat
0 // Specific part
3 16 10 -1 10 16 -1 7.588 15.5 -1 10
3 16 10 -1 10 16 -1 7.068 16 -1 7.588
4 16 10 -1 10 15.5 -1 4.909 16 -1 4.909 16 -1 7.068
4 16 10 -1 -10 16 -1 -7.068 16 -1 -4.909 15.5 -1 -4.909
3 16 10 -1 -10 16 -1 -7.588 16 -1 -7.068
3 16 10 -1 -10 15.5 -1 -10 16 -1 -7.588
0 // Primitives
0 BFC INVERTNEXT
1 16 15.5 -7.7613 0 0 -4 0 7 0 0 0 0 7 48\1-24cylo.dat
0 BFC INVERTNEXT
1 16 15.5 -7.7613 0 0 -4 0 7 0 0 0 0 -7 48\1-24cylo.dat
1 16 14.25 -1.359 1.133 0 -1 0 -.176 0 -.589 .883 0 -.117 8\2-4chrd.dat
1 16 14.25 -1.359 -1.133 0 -1 0 -.176 0 -.589 -.883 0 .117 8\2-4chrd.dat
1 16 13 -1.2675 2.1004 1.25 0 0 0 0 .2675 0 -1 .0844 rect3.dat
1 16 14.25 -1.359 1.133 0 -2.5 0 -.176 0 -.589 .883 0 -.117 8\2-4cylo.dat
1 16 13 -.9804 .25 1.25 0 0 0 0 .2026 0 1 0 rect3.dat
1 16 13 -.9804 -.25 1.25 0 0 0 0 .2026 0 -1 0 rect3.dat
1 16 14.25 -1.359 -1.133 0 -2.5 0 -.176 0 -.589 -.883 0 .117 8\2-4cylo.dat
1 16 13 -1.2675 -2.1004 1.25 0 0 0 0 .2675 0 1 -.0844 rect3.dat
1 16 11.75 -1.359 1.133 0 1 0 -.176 0 -.589 .883 0 -.117 8\2-4chrd.dat
1 16 11.75 -1.359 -1.133 0 1 0 -.176 0 -.589 -.883 0 .117 8\2-4chrd.dat
1 16 11.625 -1 0 0 0 -.125 0 1 0 1.8116 0 0 recte3.dat
0 // Faces
3 16 15.5 -.7613 0 15.5 3 5.515 15.5 -.8215 .9135
3 16 15.5 -.7613 0 15.5 3 -5.515 15.5 3 5.515
3 16 15.5 -.7613 0 15.5 -.8215 -.9135 15.5 3 -5.515
4 16 15.5 -1 1.8116 15.5 -.8215 .9135 15.5 3 5.515 15.5 -1 4.909
4 16 15.5 -1 1.8116 15.5 -1 4.909 10 -1 10 11.5 -1 1.8116
4 16 15.5 -1 -1.8116 15.5 -1 -4.909 15.5 3 -5.515 15.5 -.8215 -.9135
4 16 15.5 -1 -1.8116 11.5 -1 -1.8116 10 -1 -10 15.5 -1 -4.909
4 16 14.25 -1.183 .25 14.25 -1 1.8116 14.25 -1 2.1848 14.25 -1.535 2.016
4 16 14.25 -1.183 .25 14.25 -.7778 .25 14.25 -.8215 .9135 14.25 -1 1.8116
4 16 14.25 -1.183 -.25 14.25 -1 -1.8116 14.25 -.8215 -.9135 14.25 -.7778 -.25
4 16 14.25 -1.183 -.25 14.25 -1.535 -2.016 14.25 -1 -2.1848 14.25 -1 -1.8116
4 16 11.75 -1.183 .25 11.75 -1.535 2.016 11.75 -1 2.1848 11.75 -1 1.8116
4 16 11.75 -1.183 .25 11.75 -1 1.8116 11.75 -.8215 .9135 11.75 -.7778 .25
4 16 11.75 -1.183 -.25 11.75 -.7778 -.25 11.75 -.8215 -.9135 11.75 -1 -1.8116
4 16 11.75 -1.183 -.25 11.75 -1 -1.8116 11.75 -1 -2.1848 11.75 -1.535 -2.016
3 16 11.5 -.7613 0 11.5 -.8215 .9135 11.5 -.8215 -.9135
4 16 11.5 -.8215 -.9135 11.5 -.8215 .9135 11.5 -1 1.8116 11.5 -1 -1.8116
4 16 10 -1 10 10 -1 -10 11.5 -1 -1.8116 11.5 -1 1.8116
0 // Edges
2 24 15.5 -1 1.8116 15.5 -1 4.909
2 24 15.5 -1 1.8116 14.25 -1 1.8116
2 24 15.5 -1 -1.8116 15.5 -1 -4.909
2 24 15.5 -1 -1.8116 14.25 -1 -1.8116
2 24 14.25 -1 2.1848 14.25 -1 1.8116
2 24 14.25 -1 1.8116 14.25 -.8215 .9135
2 24 14.25 -.8215 .9135 14.25 -.7778 .25
2 24 14.25 -.7778 -.25 14.25 -.8215 -.9135
2 24 14.25 -.8215 -.9135 14.25 -1 -1.8116
2 24 14.25 -1 -1.8116 14.25 -1 -2.1848
2 24 11.75 -1 1.8116 11.75 -1 2.1848
2 24 11.75 -1 1.8116 11.75 -.8215 .9135
2 24 11.75 -.8215 .9135 11.75 -.7778 .25
2 24 11.75 -.7778 -.25 11.75 -.8215 -.9135
2 24 11.75 -.8215 -.9135 11.75 -1 -1.8116
2 24 11.75 -1 -1.8116 11.75 -1 -2.1848
