Official File parts/3109.dat
Part Attributes:
File Header:

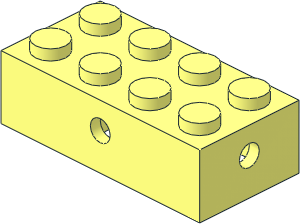

0 ~Brick 2 x 4 with 4 Axle Bushes Case
0 Name: 3109.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2018-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CW
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [mkennedy] Completed header, BFC'ed, Optimized
0 !HISTORY 2008-08-23 [PTadmin] Renamed from 34a
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2018-11-24 [cwdee] Update description
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
