Unofficial File parts/30536.dat
Part Attributes:
File Header:

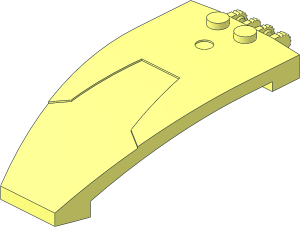

0 Windscreen 8 x 4 x 2 with Hinge Locking
0 Name: 30536.dat
0 Author: Paul Easter [pneaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Windscreen
0 !KEYWORDS Brickowl 238656, canopy, curved, hinge locking double, Life on Mars
0 !KEYWORDS Window
0 !HISTORY 2001-11-23 [pneaster] corrected BFC use of primitive files.
0 !HISTORY 2002-11-30 [PTadmin] Official Update 2002-05
0 !HISTORY 2007-06-10 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2026-07-14 [MagFors] subfiled, removed T-junctions, inlined click hinges
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30536s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30536s01.dat
0 // upper sticker surface
4 16 20 -9 -10 -20 -9 -10 -5 -9 -35 5 -9 -35
4 16 -20 -9 -50 20 -9 -50 5 -9 -45 -5 -9 -45
4 16 -20 -8.756 -60 20 -8.756 -60 20 -9 -50 -20 -9 -50
4 16 -20 -8.023 -70 20 -8.023 -70 20 -8.756 -60 -20 -8.756 -60
4 16 -14 -7.777 -72 14 -7.777 -72 20 -8.023 -70 -20 -8.023 -70
0 // lower sticker surface
4 16 -15.455 -5.794 -80 15.455 -5.794 -80 14 -6.777 -72 -14 -6.777 -72
4 16 -17.273 -4.06 -90 17.273 -4.06 -90 15.455 -5.794 -80 -15.455 -5.794 -80
4 16 -19.091 -1.808 -100 19.091 -1.808 -100 17.273 -4.06 -90 -17.273 -4.06 -90
4 16 -19.091 -1.808 -100 -20 .982 -110 20 .982 -110 19.091 -1.808 -100
4 16 -20 4.334 -120 20 4.334 -120 20 .982 -110 -20 .982 -110
4 16 -20 8.28 -130 20 8.28 -130 20 4.334 -120 -20 4.334 -120
4 16 -20 12.859 -140 20 12.859 -140 20 8.28 -130 -20 8.28 -130
4 16 -20 18.125 -150 20 18.125 -150 20 12.859 -140 -20 12.859 -140
4 16 -20 24.143 -160 20 24.143 -160 20 18.125 -150 -20 18.125 -150
4 16 -20 31 -170 20 31 -170 20 24.143 -160 -20 24.143 -160
0 // outside
1 16 0 -9 -40 5 0 0 0 1 0 0 0 5 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -9 -40 5 0 0 0 1 0 0 0 -5 4-4cyli.dat
1 16 0 -9 -40 5 0 0 0 1 0 0 0 -5 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -8 -40 5 0 0 0 -2 0 0 0 5 bump5000.dat
2 24 14 -7.777 -72 -14 -7.777 -72
4 16 -14 -6.777 -72 14 -6.777 -72 14 -7.777 -72 -14 -7.777 -72
2 24 14 -6.777 -72 -14 -6.777 -72
4 16 -20 39 -170 20 39 -170 20 31 -170 -20 31 -170
2 24 -20 31 -170 20 31 -170
2 24 -20 39 -170 20 39 -170
0 // inside
4 16 7 -6 -33 -7 -6 -33 -20 -6 -30 20 -6 -30
4 16 20 -6 -50 -20 -6 -50 -7 -6 -47 7 -6 -47
1 16 0 -6 -40 7 0 0 0 -1 0 0 0 -7 4-4ndis.dat
1 16 0 -6 -40 7 0 0 0 1 0 0 0 7 4-4edge.dat
1 16 0 -6 -40 7 0 0 0 -2 0 0 0 -7 bump5000.dat
4 16 20 -6 -50 20 -5.827 -60 -20 -5.827 -60 -20 -6 -50
4 16 -20 -5.827 -60 20 -5.827 -60 17.339 -5.232 -68 -17.339 -5.232 -68
2 24 17.339 -5.232 -68 -17.339 -5.232 -68
4 16 17.339 -5.232 -68 14 -3.836 -72 -14 -3.836 -72 -17.339 -5.232 -68
2 24 -14 -3.836 -72 14 -3.836 -72
4 16 14 -3.836 -72 15.455 -2.835 -80 -15.455 -2.835 -80 -14 -3.836 -72
4 16 -15.455 -2.835 -80 15.455 -2.835 -80 17.273 -1.074 -90 -17.273 -1.074 -90
4 16 17.273 -1.074 -90 19.091 1.215 -100 -19.091 1.215 -100 -17.273 -1.074 -90
4 16 -19.091 1.215 -100 19.091 1.215 -100 20 2.563 -105 -20 2.563 -105
4 16 20 2.563 -105 20 4.05 -110 -20 4.05 -110 -20 2.563 -105
4 16 -20 4.05 -110 20 4.05 -110 20 7.46 -120 -20 7.46 -120
4 16 20 7.46 -120 20 11.476 -130 -20 11.476 -130 -20 7.46 -120
4 16 -20 11.476 -130 20 11.476 -130 20 16.141 -140 -20 16.141 -140
4 16 20 16.141 -140 20 21.511 -150 -20 21.511 -150 -20 16.141 -140
4 16 -20 21.511 -150 20 21.511 -150 20 25.833 -157.033 -20 25.833 -157.033
4 16 16 27.042 -159 -16 27.042 -159 -20 25.833 -157.033 20 25.833 -157.033
4 16 -16 27.042 -159 16 27.042 -159 16 28.359 -161 -16 28.359 -161
4 16 17 31.866 -166 -17 31.866 -166 -16 28.359 -161 16 28.359 -161
2 24 -17 31.866 -166 17 31.866 -166
4 16 -17 31.866 -166 17 31.866 -166 17 39 -166 -17 39 -166
2 24 -17 39 -166 17 39 -166
4 16 17 39 -166 20 39 -170 -20 39 -170 -17 39 -166
0 // brick surfaces that cross center
4 16 -16 -6 -26 -16 -6 -14 16 -6 -14 16 -6 -26
4 16 16 15 -26 -16 15 -26 -16 -6 -26 16 -6 -26
4 16 -16 -6 -14 -16 13 -14 16 13 -14 16 -6 -14
4 16 20 15 -30 20 7 -30 -20 7 -30 -20 15 -30
4 16 20 7 -30 20 -6 -30 -20 -6 -30 -20 7 -30
4 16 -20 15 -30 -16 15 -26 16 15 -26 20 15 -30
4 16 -20 11 -10 -2 6 -10 2 6 -10 20 11 -10
4 16 -20 -9 -10 20 -9 -10 2 -6 -10 -2 -6 -10
4 16 -2 6 -10 -2 -6 -10 2 -6 -10 2 6 -10
2 24 20 -9 -10 -20 -9 -10
2 24 20 11 -10 -20 11 -10
2 24 20 -6 -30 -20 -6 -30
2 24 20 15 -30 -20 15 -30
2 24 16 -6 -26 -16 -6 -26
2 24 16 15 -26 -16 15 -26
2 24 16 -6 -14 -16 -6 -14
2 24 16 13 -14 -16 13 -14
2 24 16 13 -12.5 -16 13 -12.5
4 16 -16 13 -14 -16 13 -12.5 16 13 -12.5 16 13 -14
4 16 16 13 -12.5 -16 13 -12.5 -20 11 -10 20 11 -10
1 16 0 -9 -20 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 0 -6 -20 0 0 1 0 -5 0 1 0 0 stud3.dat
0 // re-created condlines
5 24 -20 -8.756 -60 20 -8.756 -60 20 -9 -50 -20 -8.023 -70
5 24 16 27.042 -159 -16 27.042 -159 -20 25.833 -157.033 16 28.359 -161
5 24 -17.273 -1.074 -90 17.273 -1.074 -90 -15.455 -2.835 -80 19.091 1.215 -100
5 24 -19.091 1.215 -100 19.091 1.215 -100 20 2.563 -105 -17.273 -1.074 -90
5 24 20 24.143 -160 -20 24.143 -160 20 18.125 -150 -20 31 -170
5 24 15.455 -5.794 -80 -15.455 -5.794 -80 14 -6.777 -72 -17.273 -4.06 -90
5 24 -20 -9 -50 20 -9 -50 -20 -8.756 -60 5 -9 -45
5 24 20 -6 -50 -20 -6 -50 -7 -6 -47 20 -5.827 -60
5 24 19.091 -1.808 -100 -19.091 -1.808 -100 17.273 -4.06 -90 -20 .982 -110
5 24 -20 -8.023 -70 20 -8.023 -70 20 -8.756 -60 -14 -7.777 -72
5 24 -20 16.141 -140 20 16.141 -140 -20 11.476 -130 20 21.511 -150
5 24 20 4.05 -110 -20 4.05 -110 -20 2.563 -105 20 7.46 -120
5 24 20 8.28 -130 -20 8.28 -130 20 4.334 -120 -20 12.859 -140
5 24 -20 2.563 -105 20 2.563 -105 20 4.05 -110 -19.091 1.215 -100
5 24 -16 28.359 -161 16 28.359 -161 17 31.866 -166 -16 27.042 -159
5 24 20 7.46 -120 -20 7.46 -120 20 11.476 -130 -20 4.05 -110
5 24 20 -5.827 -60 -20 -5.827 -60 -20 -6 -50 17.339 -5.232 -68
5 24 -20 18.125 -150 20 18.125 -150 20 12.859 -140 -20 24.143 -160
5 24 -20 11.476 -130 20 11.476 -130 -20 7.46 -120 20 16.141 -140
5 24 -17.273 -4.06 -90 17.273 -4.06 -90 15.455 -5.794 -80 -19.091 -1.808 -100
5 24 -20 21.511 -150 20 21.511 -150 20 25.833 -157.033 -20 16.141 -140
5 24 20 .982 -110 -20 .982 -110 -20 4.334 -120 19.091 -1.808 -100
5 24 15.455 -2.835 -80 -15.455 -2.835 -80 -14 -3.836 -72 17.273 -1.074 -90
5 24 -20 4.334 -120 20 4.334 -120 -20 8.28 -130 20 .982 -110
5 24 20 12.859 -140 -20 12.859 -140 20 8.28 -130 -20 18.125 -150
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Magnus Forsberg [MagFors]
initially submitted the part.
2026-08-08 08:58:06
Magnus Forsberg [MagFors]
made the following comment.
2026-08-08 09:06:26
Creative Commons Attribution License information
This part is copyright ©
Paul Easter
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky, Magnus Forsberg
There is no suitable primitive to use, instead they use 2 odd subfiles that will be obsoleted later.
Reworked due to standardization of the click hinges.
