Unofficial File parts/7661.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

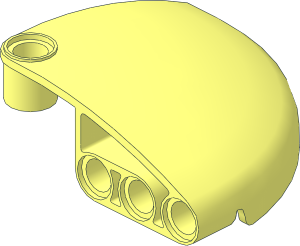

0 Technic Panel 5 x 5 x 2 Quarter Ellipse Round Corner
0 Name: 7661.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Technic
0 !KEYWORDS Brickowl 933541
0 !HISTORY 2026-07-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-08-15 [jb70] File preparation for LDraw Parts TrackerShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7661s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\7661s01.dat
1 16 0 -20 0 1 0 0 0 -1 0 0 0 1 connhole.dat
1 16 0 -10 0 9 0 0 0 -15.5 0 0 0 9 4-4cylo.dat
1 16 0 -26 0 -10 0 0 0 -3 0 0 0 -10 1-4cylo.dat
1 16 0 -26 0 -10 0 0 0 -1 0 0 0 -10 1-4ering.dat
1 16 0 -26 0 -1 0 0 0 .5 0 0 0 -1 1-4con9.dat
1 16 0 -30 0 9 0 0 0 1 0 0 0 9 4-4cylo.dat
1 16 0 -29 0 -1 0 0 0 1 0 0 0 -1 1-4ring9.dat
5 24 59.099 -8.54 59.099 51.446 -13.795 51.446 45.046 -13.78 57.166 57.166 -13.78 45.046
5 24 43.563 -18.312 43.563 35.484 -22.069 35.484 31.071 -22.062 39.432 39.432 -22.062 31.071
5 24 36.208 7.283 81.709 46.329 7.284 76.428 36.25 9 81.728 46.236 -.165 76.332
5 24 46.329 7.284 76.428 55.365 7.281 70.157 46.346 9 76.456 55.279 -.164 70.061
5 24 63.227 9 63.227 63.204 7.281 63.204 55.365 7.281 70.157 70.157 7.281 55.365
5 24 43.378 -14.935 43.378 51.322 -10.301 51.322 44.627 -10.292 57.266 57.266 -10.292 44.627
5 24 51.446 -13.795 51.446 43.563 -18.312 43.563 38.144 -18.301 48.408 48.408 -18.301 38.144
5 24 63.112 -.15 63.112 62.01 -5.138 62.01 54.291 -5.13 68.861 68.861 -5.13 54.291
5 24 35.484 -22.069 35.484 27.245 -25.051 27.245 23.851 -25.049 30.271 30.271 -25.049 23.851
5 24 27.245 -25.051 27.245 18.886 -27.256 18.886 20.989 -27.256 16.537 16.537 -27.256 20.989
5 24 81.709 7.283 36.208 76.428 7.284 46.329 76.332 -.165 46.236 81.728 9 36.25
5 24 24.945 7.282 85.824 36.208 7.283 81.709 24.947 9 85.859 36.104 -.168 81.614
5 24 60.831 1.387 60.831 60.928 9 60.928 67.61 9 53.4 53.4 9 67.61
5 24 62.01 -5.138 62.01 59.099 -8.54 59.099 65.667 -8.521 51.745 51.745 -8.521 65.667
5 24 18.886 -27.256 18.886 10.427 -28.64 10.427 20.989 -27.256 16.537 16.537 -27.256 20.989
5 24 63.204 7.281 63.204 63.112 -.15 63.112 70.061 -.164 55.279 55.279 -.164 70.061
5 24 19.924 -23.724 19.924 27.847 -21.523 27.847 31.292 -21.494 24.127 24.127 -21.494 31.292
5 24 55.365 7.281 70.157 63.204 7.281 63.204 55.392 9 70.179 63.112 -.15 63.112
5 24 27.847 -21.523 27.847 35.596 -18.626 35.596 39.844 -18.603 30.89 30.89 -18.603 39.844
5 24 60.619 -1.794 60.619 60.831 1.387 60.831 67.51 1.388 53.305 53.305 1.388 67.51
5 24 11.935 -25.181 11.935 19.924 -23.724 19.924 14.169 -23.551 25.518 25.518 -23.551 14.169
5 24 7.486 -25.681 7.486 11.935 -25.181 11.935 14.871 -25.236 6.759 6.759 -25.236 14.871
5 24 85.824 7.282 24.945 81.709 7.283 36.208 81.614 -.168 36.104 85.859 9 24.947
5 24 35.596 -18.626 35.596 43.378 -14.935 43.378 48.558 -14.896 37.658 37.658 -14.896 48.558
5 24 51.322 -10.301 51.322 59.2 -4.708 59.2 51.883 -4.685 65.732 65.732 -4.685 51.883
5 24 76.428 7.284 46.329 70.157 7.281 55.365 70.061 -.164 55.279 76.456 9 46.346
5 24 6.3639 -25.5 6.3639 7.486 -25.681 7.486 3.4443 -25.5 8.3151 8.3151 -25.5 3.4443
5 24 59.2 -4.708 59.2 60.619 -1.794 60.619 67.289 -1.78 53.109 53.109 -1.78 67.289
5 24 70.157 7.281 55.365 63.204 7.281 63.204 63.112 -.15 63.112 70.179 9 55.392Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Jens Brühl [jb70]
initially submitted the part.
2026-08-15 21:11:17
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2026-08-16 12:59:02
Aligned raw meshes to outer borders of the part
