Official File parts/31215.dat
Part Attributes:
File Header:

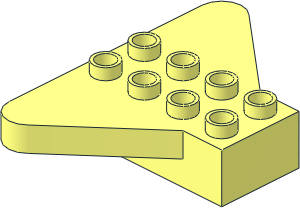

0 Duplo Brick 2 x 4 with Wings
0 Name: 31215.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
1 16 0 4 0 1 0 0 0 -10 0 0 0 1 stug8-1x3.dat
0 BFC INVERTNEXT
1 16 0 48 0 76 0 0 0 -44 0 0 0 36 box5.dat
4 16 80 48 40 76 48 36 -76 48 36 -80 48 40
4 16 -80 48 40 -76 48 36 -76 48 -36 -80 48 -40
4 16 -80 48 -40 -76 48 -36 76 48 -36 80 48 -40
4 16 80 48 -40 76 48 -36 76 48 36 80 48 40
1 16 60 24 0 0 0 20 0 -24 0 40 0 0 box2-7.dat
1 16 0 0 20 1 0 0 0 2.75 0 0 0 1 stug7-1x4.dat
1 16 0 0 -20 1 0 0 0 2.75 0 0 0 1 stug7-1x4.dat
1 16 60 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 -20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 -60 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 60 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 20 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -20 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -60 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -74 4 -20 0 0 2 0 43 0 -1.5 0 0 box4-1.dat
1 16 74 4 -20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
1 16 -74 4 20 0 0 2 0 43 0 -1.5 0 0 box4-1.dat
1 16 74 4 20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
2 24 80 48 -40 80 48 40
1 16 -60 0 -100 -20 0 0 0 24 0 0 0 -20 3-8cylo.dat
1 16 -60 0 -100 -20 0 0 0 1 0 0 0 -20 3-8chrd.dat
1 16 -2.929 12 -77.071 0 0 42.929 12 0 0 0 1 37.071 rect3.dat
4 16 -48.6864 24 -111.3136 33.87985 24 -40 40 24 -40 -45.858 24 -114.142
2 24 33.87985 24 -40 40 24 -40
1 16 -60 24 -100 -4 0 0 0 -1 0 0 0 -4 3-8ring4.dat
0 BFC INVERTNEXT
1 16 -60 4 -100 -16 0 0 0 20 0 0 0 -16 3-8cylo.dat
1 16 -60 4 -100 -16 0 0 0 -1 0 0 0 -16 3-8chrd.dat
1 16 -7.403275 14 -75.6568 0 0 41.28312 -10 0 0 0 -1 35.6568 rect3.dat
1 16 -78 24 -70 -2 0 0 0 -1 0 0 0 30 rect3.dat
1 16 -76 14 -70 0 -1 0 0 0 -10 30 0 0 rect2a.dat
4 16 -76 4 -100 -76 4 -40 33.87985 4 -40 -48.6864 4 -111.3136
4 16 80 0 -40 40 0 -40 40 24 -40 80 48 -40
4 16 -80 48 -40 80 48 -40 40 24 -40 -80 24 -40
1 16 -21.06008 14 -40 0 0 -54.93993 -10 0 0 0 1 0 rect1.dat
2 24 80 48 -40 -80 48 -40
1 16 -60 0 100 -20 0 0 0 24 0 0 0 20 3-8cylo.dat
1 16 -60 0 100 -20 0 0 0 1 0 0 0 20 3-8chrd.dat
1 16 -2.929 12 77.071 0 0 42.929 -12 0 0 0 -1 -37.071 rect3.dat
4 16 40 24 40 33.87985 24 40 -48.6864 24 111.3136 -45.858 24 114.142
2 24 33.87985 24 40 40 24 40
1 16 -60 24 100 -4 0 0 0 -1 0 0 0 4 3-8ring4.dat
0 BFC INVERTNEXT
1 16 -60 4 100 -16 0 0 0 20 0 0 0 16 3-8cylo.dat
1 16 -60 4 100 -16 0 0 0 -1 0 0 0 16 3-8chrd.dat
1 16 -7.403275 14 75.6568 0 0 41.28312 10 0 0 0 1 -35.6568 rect3.dat
1 16 -78 24 70 2 0 0 0 -1 0 0 0 -30 rect3.dat
1 16 -76 14 70 0 -1 0 -10 0 0 0 0 -30 rect2a.dat
4 16 33.87985 4 40 -76 4 40 -76 4 100 -48.6864 4 111.3136
4 16 40 24 40 40 0 40 80 0 40 80 48 40
4 16 40 24 40 80 48 40 -80 48 40 -80 24 40
1 16 -21.06008 14 40 0 0 54.93993 -10 0 0 0 -1 0 rect1.dat
2 24 80 48 40 -80 48 40
4 16 40 0 -40 40 0 40 -45.858 0 114.142 -45.858 0 -114.142
4 16 -45.858 0 -114.142 -45.858 0 114.142 -80 0 100 -80 0 -100
1 16 -80 12 0 0 1 0 -12 0 0 0 0 100 rect1.dat
1 16 -80 36 0 0 1 0 0 0 12 40 0 0 rect3.dat
1 16 -40 4 80 1 0 0 0 -4 0 0 0 1 stud8.dat
1 16 -74 4 60 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -60 4 44 1.5 0 0 0 19 0 0 0 4 box4-1.dat
1 16 -20 4 44 1.5 0 0 0 19 0 0 0 4 box4-1.dat
1 16 -74 4 100 0 0 2 0 19 0 -1.5 0 0 box4-4a.dat
2 24 -76 4 98.5 -76 23 98.5
2 24 -75.70173 23 101.5 -76 23 100
2 24 -75.70173 23 101.5 -75.70173 4 101.5
2 24 -76 23 98.5 -76 23 100
1 16 -60 4 114 -1.5 0 0 0 19 0 0 0 -2 box4-4a.dat
2 24 -58.5 23 115.7017 -60 23 116
2 24 -58.5 23 115.7017 -58.5 4 115.7017
2 24 -61.5 23 115.7017 -60 23 116
2 24 -61.5 4 115.7017 -61.5 23 115.7017
1 16 -6 4 60 0 0 -2 0 19 0 -1.5 0 0 box4-3p.dat
2 24 -8 4 58.5 -8 4 61.5
1 16 -4 13.5 67.10868 0 1 0 -9.5 0 0 0 0 5.608675 rect3.dat
1 16 -2 13.5 55.49496 0 -1 0 0 0 9.5 -15.49496 0 0 rect.dat
1 16 -4 13.5 49.25 0 1 0 9.5 0 0 0 0 -9.25 rect3.dat
4 16 -2 23 40 -4 23 40 -4 23 72.71735 -2 23 70.98992
2 24 -2 23 70.98992 -4 23 72.71735
2 24 -2 23 40 -4 23 40
1 16 -40 4 -80 1 0 0 0 -4 0 0 0 -1 stud8.dat
1 16 -74 4 -60 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 -60 4 -44 1.5 0 0 0 19 0 0 0 -4 box4-1.dat
1 16 -20 4 -44 1.5 0 0 0 19 0 0 0 -4 box4-1.dat
1 16 -74 4 -100 0 0 2 0 19 0 1.5 0 0 box4-4a.dat
2 24 -76 4 -98.5 -76 23 -98.5
2 24 -75.70173 23 -101.5 -76 23 -100
2 24 -75.70173 23 -101.5 -75.70173 4 -101.5
2 24 -76 23 -98.5 -76 23 -100
1 16 -60 4 -114 -1.5 0 0 0 19 0 0 0 2 box4-4a.dat
2 24 -58.5 23 -115.7017 -60 23 -116
2 24 -58.5 23 -115.7017 -58.5 4 -115.7017
2 24 -61.5 23 -115.7017 -60 23 -116
2 24 -61.5 4 -115.7017 -61.5 23 -115.7017
1 16 -6 4 -60 0 0 -2 0 19 0 1.5 0 0 box4-3p.dat
2 24 -8 4 -58.5 -8 4 -61.5
1 16 -4 13.5 -67.10868 0 1 0 9.5 0 0 0 0 -5.608675 rect3.dat
1 16 -2 13.5 -55.49496 0 -1 0 -9.5 0 0 0 0 -15.49496 rect.dat
1 16 -4 13.5 -49.25 0 1 0 -9.5 0 0 0 0 9.25 rect3.dat
4 16 -4 23 -72.71735 -4 23 -40 -2 23 -40 -2 23 -70.98992
2 24 -2 23 -70.98992 -4 23 -72.71735
2 24 -2 23 -40 -4 23 -40
