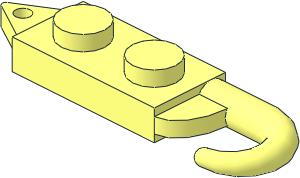

0 Plate  1 x  2 with Crane Hook Left
0 Name: 3127a.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 3127, Claw, Construction, grab, Rebrickable 3127, town

0 !HISTORY 1999-02-01 [PTadmin] Official Update 1999-01
0 !HISTORY 2007-06-24 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-04-06 [tchang] Add BFC, more conditional lines, suppress gap, change stud orientation
0 !HISTORY 2010-11-11 [PTadmin] Renamed from 3127
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
