File Detail parts/3134.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3134.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

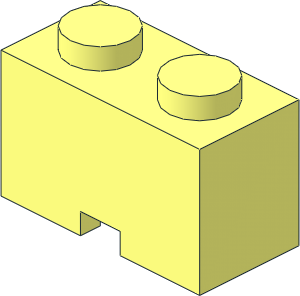

0 Brick  1 x  2 with Cable Cutout
0 Name: 3134.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 1998-02-12 [PTadmin] Official Update 1998-02
0 !HISTORY 2007-06-24 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2011-07-30 [Steffen] BFCed, better use of primitives, adjusted title
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2024-05-23 [RainbowDolphin] Total rewrite with BFC CCW, original by Lutz Uhlmann [El-Lutzo]
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
