Unofficial File parts/973pfg.dat
Part Attributes:
Base Part: 973.dat
External Sites:
View on BrickLink
File Header:

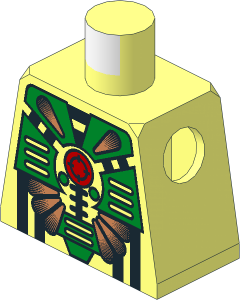

0 Minifig Torso with Stingrays Green Armour and Red Crosshair on Center Pattern
0 Name: 973pfg.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Torso
0 !KEYWORDS Aquazone, Armor, Bricklink 973pb0046, Commander Manta Ray, diver
0 !KEYWORDS Hydronauts, Set 6107, Set 6160, Set 6198, Set 6199, Underwater
0 !KEYWORDS Wetsuit
Show contents
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\973s01.dat
4 16 19 29 10 19 32 10 -19 32 10 -19 29 10
4 16 -14.345 2 10 14.345 2 10 19 29 10 -19 29 10
4 16 -14.345 2 10 -12 0 10 12 0 10 14.345 2 10
1 15 0 -4 0 4.243 0 -4.243 0 -8 0 -4.243 0 -4.243 1-4cyli.dat
0 // Pattern
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\973pfgs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\973pfgs01.dat
0 // Colour 0 Black
3 0 1.185 6.2 -10 -1.185 6.2 -10 0 9.8 -10
3 0 -.3 16.03 -10 -.3 16.5 -10 .3 16.5 -10
3 0 0 16.9 -10 -.85 17.5 -10 .85 17.5 -10
3 0 .3 15.422 -10 -.3 15.422 -10 .3 16.03 -10
4 0 5.013 28.5 -10 -5.013 28.5 -10 -3.165 29.1 -10 3.165 29.1 -10
4 0 -2.25 32 -10 2.25 32 -10 1.896 31.4 -10 -1.896 31.4 -10
4 0 2.567 2 -10 -2.567 2 -10 -1.711 4.6 -10 1.711 4.6 -10
4 0 -.85 23.6 -10 -3.518 24.2 -10 3.518 24.2 -10 .85 23.6 -10
4 0 -.85 22.9 -10 -.85 23.6 -10 .85 23.6 -10 .85 22.9 -10
4 0 -.85 21.7 -10 -.85 22.9 -10 .85 22.9 -10 .85 21.7 -10
4 0 -.85 20.8 -10 -.85 21.7 -10 .85 21.7 -10 .85 20.8 -10
4 0 -.85 19.6 -10 -.85 20.8 -10 .85 20.8 -10 .85 19.6 -10
4 0 -.85 17.5 -10 -.85 18.7 -10 .85 18.7 -10 .85 17.5 -10
4 0 -.85 18.7 -10 -.85 19.6 -10 .85 19.6 -10 .85 18.7 -10
4 0 .3 16.03 -10 -.3 15.422 -10 -.3 16.03 -10 .3 16.5 -10
4 0 .3 15 -10 -.3 15 -10 -.3 15.422 -10 .3 15.422 -10
4 0 -.3 12.178 -10 -.3 12.6 -10 .3 12.6 -10 .3 12.178 -10
4 0 -.3 11.57 -10 -.3 12.178 -10 .3 12.178 -10 .3 11.57 -10
4 0 -.3 11.57 -10 .3 11.57 -10 .3 11.1 -10 -.3 11.1 -10
4 0 2.8 28.25 -10 2.8 27.65 -10 -2.8 27.65 -10 -2.8 28.25 -10
4 0 2.8 27.15 -10 2.8 26.55 -10 -2.8 26.55 -10 -2.8 27.15 -10
4 0 2.8 26.25 -10 2.8 25.65 -10 -2.8 25.65 -10 -2.8 26.25 -10
4 0 2.8 25.15 -10 2.8 24.55 -10 -2.8 24.55 -10 -2.8 25.15 -10
0 // Colour 2 Green
4 2 -3.165 29.1 -10 -1.896 31.4 -10 1.896 31.4 -10 3.165 29.1 -10
4 2 3.518 24.2 -10 -3.518 24.2 -10 -2.8 24.55 -10 2.8 24.55 -10
4 2 2.8 26.55 -10 2.8 26.25 -10 -2.8 26.25 -10 -2.8 26.55 -10
4 2 -5.013 28.5 -10 5.013 28.5 -10 2.8 28.25 -10 -2.8 28.25 -10
0 // Colour 4 Red
3 4 .3 16.5 -10 -.3 16.5 -10 0 16.9 -10
3 4 0 10.7 -10 -.3 11.1 -10 .3 11.1 -10
4 4 .3 12.6 -10 -.3 12.6 -10 -.3 15 -10 .3 15 -10
0 // Colour 16 Main Colour
4 16 -1.711 4.6 -10 -1.185 6.2 -10 1.185 6.2 -10 1.711 4.6 -10
4 16 -2.7 1.596 -10 2.7 1.596 -10 12 0 -10 -12 0 -10
4 16 -2.7 1.596 -10 -2.567 2 -10 2.567 2 -10 2.7 1.596 -10
4 16 -2.8 25.15 -10 -2.8 25.65 -10 2.8 25.65 -10 2.8 25.15 -10
4 16 2.8 27.65 -10 2.8 27.15 -10 -2.8 27.15 -10 -2.8 27.65 -10
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-09-10 01:31:12
Chris Böhnke [KnightOfTarenta]
submitted a new version of the part (all votes reset).
2026-09-10 02:58:18
Some fixes to line thickness in the lower area.
Chris Böhnke [KnightOfTarenta]
submitted a new version of the part (all votes reset).
2026-09-10 02:58:59
Chris Böhnke [KnightOfTarenta]
edited the part header.
2026-09-10 03:00:44
Header Edits
keywords:
Aquazone, Bricklink 973pb0046, Commander Manta Ray, diver, Hydronauts, Set 6107, Set 6160, Set 6198, Set 6199, Underwater, Wetsuit
to
Aquazone, Bricklink 973pb0046, Commander Manta Ray, Hydronauts, Set 6107, Set 6160, Set 6198, Set 6199, Underwater, Wetsuit, diver, Armor
