Unofficial File parts/s/6177954ns01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

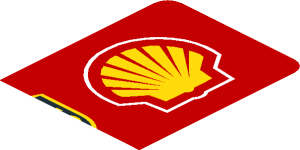

0 ~Sticker 0.8 x 4.0 with Logos on Red Background Right - First Face
0 Name: s\6177954ns01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2026-05-31 [OrionP] Official Update 2026-05
0 !HISTORY 2026-09-14 [Sirio] Adapted length after introduction of stickerbackShow file code:
0 // Logo primitive
1 4 0 -.25 9.7477 0 0 -.5 0 1 0 .5 0 0 logo-shell-1971.dat
1 4 0 -.25 9.7477 0 0 -.5 0 1 0 .5 0 0 logo-shell-1971-outerbox-with-border.dat
0 // Primitives
1 4 -6.5 -.25 17.7477 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 6.5 -.25 17.7477 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
0 // Black faces
3 0 .4764 -.25 .2141 .688 -.25 .2357 .868 -.25 .5317
3 0 .868 -.25 .5317 .688 -.25 .2357 .8924 -.25 .2155
4 0 1.2702 -.25 .0591 1.403 -.25 .4819 .868 -.25 .5317 1.089 -.25 .1559
3 0 .868 -.25 .5317 .8924 -.25 .2155 1.089 -.25 .1559
3 0 .0877 -.25 .0467 .2735 -.25 .1503 -.872 -.25 .1317
4 0 .4764 -.25 .2141 .868 -.25 .5317 -.872 -.25 .1317 .2735 -.25 .1503
4 0 -3.92 -.25 .5317 -1.536 -.25 .1317 -.872 -.25 .1317 .868 -.25 .5317
4 0 1.9196 -.25 .3345 1.3609 -.25 -.0153 2.5449 -.25 -.0153 2.4002 -.25 .0943
3 0 -4.0041 -.25 -.0153 -1.6218 -.25 -.0153 -3.9992 -.25 .0326
3 0 -1.0077 -.25 -.0153 .0157 -.25 -.0153 -.9825 -.25 .0209
4 0 -1.536 -.25 .1317 -3.92 -.25 .5317 -3.9992 -.25 .0326 -1.6218 -.25 -.0153
4 0 -.9825 -.25 .0209 .0157 -.25 -.0153 .0877 -.25 .0467 -.872 -.25 .1317
4 0 1.9196 -.25 .3345 1.403 -.25 .4819 1.2702 -.25 .0591 1.3609 -.25 -.0153
0 // Red faces
4 4 -6.5 -.25 19.2477 -8 -.25 17.7477 -5.6 -.25 9.7477 -5.6 -.25 15.7727
4 4 -6.5 -.25 19.2477 -5.6 -.25 15.7727 5.6 -.25 15.7727 6.5 -.25 19.2477
4 4 6.5 -.25 19.2477 5.6 -.25 15.7727 5.6 -.25 9.7477 8 -.25 17.7477
4 4 -5.6 -.25 3.7227 -5.6 -.25 9.7477 -8 -.25 17.7477 -8 -.25 -.0153
4 4 5.6 -.25 3.7227 8 -.25 -.0153 8 -.25 17.7477 5.6 -.25 9.7477
3 4 1.4723 -.25 .8515 2.0558 -.25 .685 5.6 -.25 3.7227
3 4 5.6 -.25 3.7227 2.0558 -.25 .685 2.5987 -.25 .4137
3 4 3.0823 -.25 .0471 3.1389 -.25 -.0153 8 -.25 -.0153
4 4 2.5987 -.25 .4137 3.0823 -.25 .0471 8 -.25 -.0153 5.6 -.25 3.7227
3 4 -8 -.25 -.0153 -4.4073 -.25 -.0153 -4.2468 -.25 .4155
4 4 -4.032 -.25 .9077 -5.6 -.25 3.7227 -8 -.25 -.0153 -4.2468 -.25 .4155
4 4 .77 -.25 3.7227 -.165 -.25 3.7227 -4.032 -.25 .9077 .868 -.25 .9077
3 4 -.165 -.25 3.7227 -5.6 -.25 3.7227 -4.032 -.25 .9077
4 4 1.4723 -.25 .8515 5.6 -.25 3.7227 .77 -.25 3.7227 .868 -.25 .9077
0 // Yellow faces
4 14 -.872 -.25 .1317 -1.536 -.25 .1317 -1.6218 -.25 -.0153 -.9825 -.25 .0209
4 14 -4.2468 -.25 .4155 -3.9992 -.25 .0326 -3.92 -.25 .5317 -4.032 -.25 .9077
4 14 -4.032 -.25 .9077 -3.92 -.25 .5317 .868 -.25 .5317 .868 -.25 .9077
4 14 .868 -.25 .9077 .868 -.25 .5317 1.403 -.25 .4819 1.4723 -.25 .8515
4 14 1.4723 -.25 .8515 1.403 -.25 .4819 1.9197 -.25 .3345 2.0558 -.25 .685
4 14 2.0558 -.25 .685 1.9197 -.25 .3345 2.4003 -.25 .0943 2.5987 -.25 .4137
3 14 2.5449 -.25 -.0153 3.1389 -.25 -.0153 3.0823 -.25 .0471
4 14 -4.2468 -.25 .4155 -4.4073 -.25 -.0153 -4.0041 -.25 -.0153 -3.9992 -.25 .0326
3 14 -1.6218 -.25 -.0153 -1.0077 -.25 -.0153 -.9825 -.25 .0209
4 14 3.0823 -.25 .0471 2.5987 -.25 .4137 2.4003 -.25 .0943 2.5449 -.25 -.0153
4 14 .2735 -.25 .1503 1.089 -.25 .1559 .8924 -.25 .2155 .4764 -.25 .2141
3 14 .8924 -.25 .2155 .688 -.25 .2357 .4764 -.25 .2141
4 14 1.089 -.25 .1559 .2735 -.25 .1503 .0877 -.25 .0467 1.2702 -.25 .0591
4 14 .0157 -.25 -.0153 1.3609 -.25 -.0153 1.2702 -.25 .0591 .0877 -.25 .0467Status
Needs 1 More Vote (CF)
Current Votes:
Willy Tschager [Holly-Wood]
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Massimo Maso [Sirio]
initially submitted the part.
2026-09-18 21:47:33
Willy Tschager [Holly-Wood]
posted a vote of Hold
2026-09-24 13:52:08
* You cannot simply change the lenght of an official sticker back and put it back on the PT. Since there are only two stickers using this back in the wild (very recently) I suggest submitting the official stickers and recycle them (with their subs) without creating an a/b/c/d/... version.
Willy Tschager [Holly-Wood]
cancelled their vote.
2026-09-28 13:13:58
Willy Tschager [Holly-Wood]
posted a vote of Hold
2026-09-28 13:14:09
* Check this: -1.6208 -.25 -.0131
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-10-05 17:45:06
Willy Tschager [Holly-Wood]
posted a vote of Certify
2026-10-05 19:52:54
