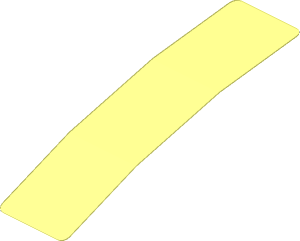

0 ~Sticker Back 0.8 x 3.0 (Formed)
0 Name: s\61678b04.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCWShow file code:
0 // Primitives
1 16 -6.5 1.6886 16.9355 -1.5 0 0 0 -1 -.2734 0 0 1.4749 1-4chrd.dat
1 16 6.5 1.6886 16.9355 1.5 0 0 0 -1 -.2734 0 0 1.4749 1-4chrd.dat
1 16 -6.5 1.6886 16.9355 -1.5 0 0 0 -.2458 -.2734 0 -.0456 1.4749 1-4cyli.dat
1 16 6.5 1.6886 16.9355 1.5 0 0 0 -.2458 -.2734 0 -.0456 1.4749 1-4cyli.dat
1 16 -6.5 18.6734 -37.119 -1.5 0 0 0 -1 .6274 0 0 -1.3625 1-4chrd.dat
1 16 6.5 18.6734 -37.119 1.5 0 0 0 -1 .6274 0 0 -1.3625 1-4chrd.dat
1 16 -6.5 18.6734 -37.119 -1.5 0 0 0 -.2271 .6274 0 -.1046 -1.3625 1-4cyli.dat
1 16 6.5 18.6734 -37.119 1.5 0 0 0 -.2271 .6274 0 -.1046 -1.3625 1-4cyli.dat
0 // Bottom faces
4 16 -6.5 1.4152 18.4104 6.5 1.4152 18.4104 8 1.6886 16.9355 -8 1.6886 16.9355
4 16 -8 1.6886 16.9355 8 1.6886 16.9355 8 5.0895 -1.408 -8 5.0895 -1.408
4 16 -8 5.0895 -1.408 8 5.0895 -1.408 8 11.3582 -21.232 -8 11.3582 -21.232
4 16 -8 11.3582 -21.232 8 11.3582 -21.232 8 18.6734 -37.119 -8 18.6734 -37.119
4 16 -8 18.6734 -37.119 8 18.6734 -37.119 6.5 19.3008 -38.4815 -6.5 19.3008 -38.4815
0 // Conditional lines
5 24 -8 5.0895 -1.408 8 5.0895 -1.408 -6.5 1.4152 18.4104 -8 11.3582 -21.232
5 24 -8 11.3582 -21.232 8 11.3582 -21.232 -8 5.0895 -1.408 -6.5 19.3008 -38.4815
0 // Lateral faces
4 16 -6.5 1.4152 18.4104 -6.5 1.1694 18.3648 6.5 1.1694 18.3648 6.5 1.4152 18.4104
4 16 -8 1.6886 16.9355 -8 5.0895 -1.408 -8 4.8465 -1.4687 -8 1.4428 16.8899
4 16 8 1.6886 16.9355 8 1.4428 16.8899 8 4.8465 -1.4687 8 5.0895 -1.408
4 16 -8 5.0895 -1.408 -8 11.3582 -21.232 -8 11.1246 -21.3223 -8 4.8465 -1.4687
4 16 8 5.0895 -1.408 8 4.8465 -1.4687 8 11.1246 -21.3223 8 11.3582 -21.232
4 16 -8 11.3582 -21.232 -8 18.6734 -37.119 -8 18.4463 -37.2236 -8 11.1246 -21.3223
4 16 8 11.3582 -21.232 8 11.1246 -21.3223 8 18.4463 -37.2236 8 18.6734 -37.119
4 16 -6.5 19.3008 -38.4815 6.5 19.3008 -38.4815 6.5 19.0737 -38.5861 -6.5 19.0737 -38.5861
0 // Conditional lines
5 24 -8 4.8465 -1.4687 8 4.8465 -1.4687 -6.5 1.1694 18.3648 -8 11.1246 -21.3223
5 24 -8 11.1246 -21.3223 8 11.1246 -21.3223 -8 4.8465 -1.4687 -6.5 19.0737 -38.5861Status
