Unofficial File parts/s/93606b01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

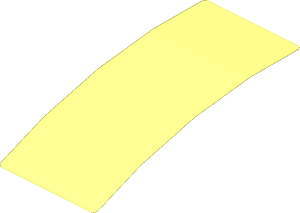

0 ~Sticker Back 1.8 x 4.0 (Formed)
0 Name: s\93606b01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
0 !HISTORY 2026-09-30 [Sirio] Adapted to new length; rounded decimals
Show file code
0 // Primitives
1 16 -16.5 .1946 36.8343 -1.5 0 0 0 -1 -.092 0 0 1.4972 1-4chrd.dat
1 16 16.5 .1946 36.8343 1.5 0 0 0 -1 -.092 0 0 1.4972 1-4chrd.dat
1 16 -16.5 .1946 36.8343 -1.5 0 0 0 -.2495 -.092 0 -.0153 1.4972 1-4cyli.dat
1 16 16.5 .1946 36.8343 1.5 0 0 0 -.2495 -.092 0 -.0153 1.4972 1-4cyli.dat
1 16 -16.5 18.6734 -37.119 -1.5 0 0 0 -1 .6274 0 0 -1.3625 1-4chrd.dat
1 16 16.5 18.6734 -37.119 1.5 0 0 0 -1 .6274 0 0 -1.3625 1-4chrd.dat
1 16 -16.5 18.6734 -37.119 -1.5 0 0 0 -.2271 .6274 0 -.1046 -1.3625 1-4cyli.dat
1 16 16.5 18.6734 -37.119 1.5 0 0 0 -.2271 .6274 0 -.1046 -1.3625 1-4cyli.dat
0 // Bottom face
4 16 -16.5 .1026 38.3315 16.5 .1026 38.3315 18 .1946 36.8343 -18 .1946 36.8343
4 16 -18 .1946 36.8343 18 .1946 36.8343 18 1.2836 19.12 -18 1.2836 19.12
4 16 -18 1.2836 19.12 18 1.2836 19.12 18 5.0895 -1.408 -18 5.0895 -1.408
4 16 -18 5.0895 -1.408 18 5.0895 -1.408 18 11.3582 -21.232 -18 11.3582 -21.232
4 16 -18 11.3582 -21.232 18 11.3582 -21.232 18 18.6734 -37.119 -18 18.6734 -37.119
4 16 -18 18.6734 -37.119 18 18.6734 -37.119 16.5 19.3008 -38.4815 -16.5 19.3008 -38.4815
0 // Conditional lines
5 24 -18 1.2836 19.12 18 1.2836 19.12 -16.5 .1026 38.3315 -18 5.0895 -1.408
5 24 -18 5.0895 -1.408 18 5.0895 -1.408 -18 1.2836 19.12 -18 11.3582 -21.232
5 24 -18 11.3582 -21.232 18 11.3582 -21.232 -18 5.0895 -1.408 -16.5 19.3008 -38.4815
0 // Lateral faces
4 16 -16.5 .1026 38.3315 -16.5 -.1469 38.3162 16.5 -.1469 38.3162 16.5 .1026 38.3315
4 16 -18 .1946 36.8343 -18 1.2836 19.12 -18 1.035 19.0894 -18 -.0549 36.819
4 16 18 .1946 36.8343 18 -.0549 36.819 18 1.035 19.0894 18 1.2836 19.12
4 16 -18 1.2836 19.12 -18 5.0895 -1.408 -18 4.8465 -1.4687 -18 1.035 19.0894
4 16 18 1.2836 19.12 18 1.035 19.0894 18 4.8465 -1.4687 18 5.0895 -1.408
4 16 -18 5.0895 -1.408 -18 11.3582 -21.232 -18 11.1246 -21.3223 -18 4.8465 -1.4687
4 16 18 5.0895 -1.408 18 4.8465 -1.4687 18 11.1246 -21.3223 18 11.3582 -21.232
4 16 -18 11.3582 -21.232 -18 18.6734 -37.119 -18 18.4463 -37.2236 -18 11.1246 -21.3223
4 16 18 11.3582 -21.232 18 11.1246 -21.3223 18 18.4463 -37.2236 18 18.6734 -37.119
4 16 -16.5 19.3008 -38.4815 16.5 19.3008 -38.4815 16.5 19.0737 -38.5861 -16.5 19.0737 -38.5861
0 // Conditional lines
5 24 -18 1.035 19.0894 18 1.035 19.0894 -16.5 -.1469 38.3162 -18 4.8465 -1.4687
5 24 -18 4.8465 -1.4687 18 4.8465 -1.4687 -18 1.035 19.0894 -18 11.1246 -21.3223
5 24 -18 11.1246 -21.3223 18 11.1246 -21.3223 -18 4.8465 -1.4687 -16.5 19.0737 -38.5861Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following warnings
- Number in description may need a leading space
Part Dependencies
Official parents and subparts
Part Events
Massimo Maso [Sirio]
initially submitted the part.
2026-10-01 18:03:29
Archived Part Events:
