Official File parts/314d.dat
Part Attributes:
File Header:

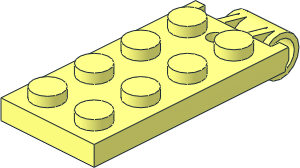

0 Hinge Plate 2 x 5 Top
0 Name: 314d.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 314, Rebrickable 314
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2007-06-24 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] BFC'd (2004-11-16)
0 !HISTORY 2008-07-08 [guyvivan] Fixed bad orientation of studs and quads size near hinge (2005-11-01)
0 !HISTORY 2008-07-09 [guyvivan] Fixed bad position and size hole near hinge (2005-11-01)
0 !HISTORY 2008-07-10 [PTadmin] Renamed 314 to 314d (2005-12-22)
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives: removed ringr.dat or ringrr.dat, introduced 4-4cylo.dat, merged some triangles to quads
0 !HISTORY 2020-07-21 [MagFors] Removed hidden surface
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
0 // Primitives
1 16 0 -6 -50 0 0 1 0 -1 0 -1 0 0 stug4-1x3.dat
1 16 0 -10 -70 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 0 -10 -30 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 10 0 0 0 -1 0 0 0 2 -2 0 0 7-8ring3.dat
1 16 -10 0 0 0 1 0 0 0 2 -2 0 0 7-8ring3.dat
1 16 0 -2.5 -18 3 0 0 0 -1 0 0 0 3 4-4ndis.dat
1 16 0 -10 -18 3 0 0 0 1 0 0 0 3 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -10 -18 3 0 0 0 7.5 0 0 0 3 4-4cylo.dat
1 16 7.5 0 0 0 -1 0 -8 0 0 0 0 -8 1-8ndis.dat
1 16 4.5 0 0 0 1 0 -8 0 0 0 0 -8 1-8ndis.dat
1 16 -4.5 0 0 0 -1 0 -8 0 0 0 0 -8 1-8ndis.dat
1 16 -7.5 0 0 0 1 0 -8 0 0 0 0 -8 1-8ndis.dat
0 BFC INVERTNEXT
1 16 10 0 0 0 -20 0 6 0 0 0 0 6 4-4cylo.dat
1 16 10 0 0 0 -1 0 0 0 -6 -6 0 0 1-8tang.dat
1 16 -10 0 0 0 1 0 0 0 -6 -6 0 0 1-8tang.dat
1 16 10 0 0 0 -20 0 0 0 8 -8 0 0 7-8cylo.dat
1 16 4.5 0 0 0 -1 0 -8 0 0 0 0 -8 1-8edge.dat
1 16 -4.5 0 0 0 -1 0 -8 0 0 0 0 -8 1-8edge.dat
1 16 7.5 0 0 0 -1 0 -8 0 0 0 0 -8 1-8edge.dat
1 16 -7.5 0 0 0 1 0 -8 0 0 0 0 -8 1-8edge.dat
1 16 18 -7.75 -6.4 0 0 2 -2.25 0 0 0 -1 0 rect.dat
1 16 -18 -7.75 -6.4 0 0 2 -2.25 0 0 0 -1 0 rect.dat
1 16 0 -4.8284 -6.2034 -10 0 0 0 1 .8284 0 0 -.5466 rect3.dat
1 16 0 -1 -8 0 0 -10 -1 0 0 0 1 0 rect2p.dat
1 16 0 -4 -8.375 -4.5 0 0 0 1 0 0 0 -1.625 rect3.dat
0 BFC INVERTNEXT
1 16 0 -4 -14 0 0 -16 2 0 0 0 -72 0 box3u2p.dat
1 16 11.75 -7 -10 4.25 0 0 0 0 3 0 -1 0 rect3.dat
1 16 0 -7 -10 0 0 -4.5 3 0 0 0 -1 0 rect2p.dat
1 16 -11.75 -7 -10 4.25 0 0 0 0 3 0 -1 0 rect3.dat
1 16 0 -6 -90 20 0 0 0 0 -4 0 1 0 rect.dat
1 16 6 -9 -5 0 0 1.5 -1 1 0 -5 0 0 rect2p.dat
1 16 -6 -9 -5 0 0 1.5 -1 1 0 -5 0 0 rect2p.dat
1 16 4 -4.25 -18.6175 0 -1 0 1.75 0 0 0 0 4.6175 rect.dat
1 16 -4 -4.25 -18.6175 0 1 0 1.75 0 0 0 0 -4.6175 rect.dat
1 16 0 -2.5 -30 3.06147 0 -7.39104 0 -1 0 7.39104 0 3.06147 1-8edge.dat
0 // Faces
4 16 10 -4 -6.75 10 -4 -7.5 10 -2 -8 10 0 -8
4 16 -10 0 -8 -10 -2 -8 -10 -4 -7.5 -10 -4 -6.75
4 16 10 -2 -8 16 -4 -7.5 20 -4 -7.5 20 -2 -8
4 16 -20 -2 -8 -20 -4 -7.5 -16 -4 -7.5 -10 -2 -8
4 16 -20 -4 -7.5 -20 -5.5 -6.4 -16 -5.5 -6.4 -16 -4 -7.5
4 16 16 -4 -7.5 16 -5.5 -6.4 20 -5.5 -6.4 20 -4 -7.5
4 16 20 -4 -7.5 20 -5.5 -6.4 20 -10 -6.4 20 -10 -90
4 16 20 -2 -90 20 -2 -8 20 -4 -7.5 20 -10 -90
4 16 -16 -10 -6.4 -16 -10 -10 -16 -4 -7.5 -16 -5.5 -6.4
4 16 16 -5.5 -6.4 16 -4 -7.5 16 -10 -10 16 -10 -6.4
3 16 -16 -4 -10 -16 -4 -7.5 -16 -10 -10
3 16 16 -10 -10 16 -4 -7.5 16 -4 -10
4 16 -20 -10 -90 -20 -10 -6.4 -20 -5.5 -6.4 -20 -4 -7.5
4 16 7.5 -4 -10 7.5 -4 -6.75 7.5 -8 -8 7.5 -10 -10
3 16 7.5 -10 -10 7.5 -8 -8 7.5 -8 0
4 16 4.5 -10 -10 4.5 -8 -8 4.5 -4 -6.75 4.5 -4 -10
3 16 4.5 -10 -10 4.5 -8 0 4.5 -8 -8
4 16 -4.5 -4 -10 -4.5 -4 -6.75 -4.5 -8 -8 -4.5 -10 -10
3 16 -4.5 -10 -10 -4.5 -8 -8 -4.5 -8 0
4 16 -7.5 -10 -10 -7.5 -8 -8 -7.5 -4 -6.75 -7.5 -4 -10
3 16 -7.5 -10 -10 -7.5 -8 0 -7.5 -8 -8
4 16 -7.5 -4 -10 -7.5 -4 -6.75 -10 -4 -6.75 -10 -4 -7.5
4 16 10 -4 -7.5 10 -4 -6.75 7.5 -4 -6.75 7.5 -4 -10
4 16 10 -4 -7.5 7.5 -4 -10 16 -4 -10 16 -4 -7.5
4 16 -16 -4 -7.5 -16 -4 -10 -7.5 -4 -10 -10 -4 -7.5
4 16 20 -2 -8 16 -2 -14 -16 -2 -14 -20 -2 -8
4 16 -20 -2 -90 -16 -2 -86 16 -2 -86 20 -2 -90
4 16 20 -2 -90 16 -2 -86 16 -2 -14 20 -2 -8
4 16 -20 -2 -8 -16 -2 -14 -16 -2 -86 -20 -2 -90
4 16 -4 -2.5 -14 -4 -6 -14 -16 -6 -14 -16 -2 -14
4 16 16 -2 -14 16 -6 -14 4 -6 -14 4 -2.5 -14
4 16 16 -2 -14 4 -2.5 -14 -4 -2.5 -14 -16 -2 -14
4 16 -16 -6 -86 -4 -6 -23.235 4 -6 -23.235 16 -6 -86
4 16 16 -6 -86 4 -6 -23.235 4 -6 -14 16 -6 -14
4 16 -16 -6 -14 -4 -6 -14 -4 -6 -23.235 -16 -6 -86
4 16 -3 -10 -15 3 -10 -15 16 -10 -10 -16 -10 -10
4 16 3 -10 -21 20 -10 -90 16 -10 -10 3 -10 -15
4 16 20 -10 -90 3 -10 -21 -3 -10 -21 -20 -10 -90
4 16 -3 -10 -21 -3 -10 -15 -16 -10 -10 -20 -10 -90
4 16 3 -2.5 -21 3 -2.5 -15 4 -2.5 -14 4 -2.5 -23.235
4 16 -4 -2.5 -23.235 -4 -2.5 -14 -3 -2.5 -15 -3 -2.5 -21
4 16 -4 -2.5 -14 4 -2.5 -14 3 -2.5 -15 -3 -2.5 -15
4 16 4 -2.5 -23.235 -4 -2.5 -23.235 -3 -2.5 -21 3 -2.5 -21
4 16 10 -4 -6.75 10 0 -8 10 0 -6 10 -1.1934 -6
3 16 10 -4 -6.75 10 -1.1934 -6 10 -2.2962 -5.5434
3 16 10 -4 -6.75 10 -2.2962 -5.5434 10 -3.399 -5.0868
4 16 10 -5.6568 -5.6568 10 -4 -6.75 10 -3.399 -5.0868 10 -4.2426 -4.2426
3 16 7.5 -4 -6.75 7.5 -5.6568 -5.6568 7.5 -8 -8
3 16 4.5 -4 -6.75 4.5 -8 -8 4.5 -5.6568 -5.6568
3 16 -4.5 -4 -6.75 -4.5 -5.6568 -5.6568 -4.5 -8 -8
3 16 -7.5 -4 -6.75 -7.5 -8 -8 -7.5 -5.6568 -5.6568
4 16 -10 -3.399 -5.0868 -10 -4 -6.75 -10 -5.6568 -5.6568 -10 -4.2426 -4.2426
3 16 -10 -4 -6.75 -10 -3.399 -5.0868 -10 -2.2962 -5.5434
4 16 -10 -2.2962 -5.5434 -10 -1.1934 -6 -10 0 -8 -10 -4 -6.75
3 16 -10 0 -8 -10 -1.1934 -6 -10 0 -6
4 16 -20 -4 -7.5 -20 -2 -8 -20 -2 -90 -20 -10 -90
3 16 16 -4 -7.5 10 -2 -8 10 -4 -7.5
3 16 -10 -4 -7.5 -10 -2 -8 -16 -4 -7.5
4 16 16 -10 -10 20 -10 -90 20 -10 -6.4 16 -10 -6.4
4 16 -20 -10 -90 -16 -10 -10 -16 -10 -6.4 -20 -10 -6.4
0 // Edges
2 24 16 -2 -14 -16 -2 -14
2 24 -20 -2 -8 -20 -2 -90
2 24 20 -2 -90 20 -2 -8
2 24 -4 -6 -14 -16 -6 -14
2 24 16 -6 -14 4 -6 -14
2 24 4 -2.5 -14 -4 -2.5 -14
2 24 16 -10 -10 -16 -10 -10
2 24 20 -2 -8 -20 -2 -8
2 24 7.5 -4 -6.75 7.5 -4 -10
2 24 10 -4 -6.75 10 -4 -7.5
2 24 -7.5 -4 -6.75 -7.5 -4 -10
2 24 -10 -4 -6.75 -10 -4 -7.5
2 24 20 -2 -8 20 -4 -7.5
2 24 20 -4 -7.5 20 -5.5 -6.4
2 24 16 -4 -7.5 16 -5.5 -6.4
2 24 -16 -4 -7.5 -16 -5.5 -6.4
2 24 -20 -2 -8 -20 -4 -7.5
2 24 -20 -4 -7.5 -20 -5.5 -6.4
2 24 -16 -4 -10 -16 -4 -7.5
2 24 16 -4 -10 16 -4 -7.5
2 24 4 -2.5 -23.235 3.064 -2.5 -22.608
2 24 -4 -2.5 -23.235 -3.064 -2.5 -22.608
2 24 10 -4 -7.5 16 -4 -7.5
2 24 10 -2 -8 10 -4 -7.5
2 24 20 -10 -90 20 -10 -6.4
2 24 16 -10 -6.4 16 -10 -10
2 24 -10 -4 -7.5 -10 -2 -8
2 24 -16 -4 -7.5 -10 -4 -7.5
2 24 -16 -10 -10 -16 -10 -6.4
2 24 -20 -10 -6.4 -20 -10 -90
2 24 -4.5 -4 -6.75 -4.5 -5.6568 -5.6568
2 24 4.5 -4 -6.75 4.5 -5.6568 -5.6568
2 24 7.5 -4 -6.75 7.5 -5.6568 -5.6568
2 24 -7.5 -4 -6.75 -7.5 -5.6568 -5.6568
0 // Conditional lines
5 24 -16 -4 -7.5 -20 -4 -7.5 -10 -2 -8 -16 -5.5 -6.4
5 24 16 -4 -7.5 20 -4 -7.5 10 -2 -8 16 -5.5 -6.4
5 24 10 -5.6568 -5.6568 7.5 -5.6568 -5.6568 10 -4 -6.75 10 -7.3912 -3.0616
5 24 4.5 -5.6568 -5.6568 -4.5 -5.6568 -5.6568 4.5 -7.3912 -3.0616 4.5 -4 -6.75
5 24 -10 -5.6568 -5.6568 -7.5 -5.6568 -5.6568 -10 -7.3912 -3.0616 -10 -4 -6.75
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
