Unofficial File parts/3817cp10.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

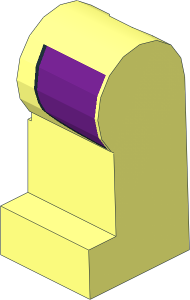

Minifig Leg Left with Long Dark Purple Vest Pattern
0 Minifig Leg Left with Long Dark Purple Vest Pattern
0 Name: 3817cp10.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Move down 12 units to align with hips
0 !HELP Move at z=1.25 relative to stud grid
0 !HELP 1 16 0 0 1.25 1 0 0 0 1 0 0 0 1 3817c.dat
0 !HELP 1 16 0 28 0 1 0 0 0 1 0 0 0 1 stug-1x2.dat

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Leg
0 !KEYWORDS Paul McCartney, set 21306, The Beatles, yellow submarine
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3817cs01.dat

4 0 7.422 4.2071 -7.5104 8.7478 4.7989 -7.1148 9.2942 4.282 -7.4604 8.11 3.8733 -7.7335
4 0 8.11 3.8733 -7.7335 7.2312 3.349 -8.084 6.4367 3.349 -8.084 7.422 4.2071 -7.5104
4 0 11.6795 4.8346 -7.091 9.2942 4.282 -7.4604 8.7478 4.7989 -7.1148 10.2942 5.2153 -6.8365
4 0 13.7298 5.1359 -6.8896 11.6795 4.8346 -7.091 10.2942 5.2153 -6.8365 12.1712 5.5698 -6.5996
4 0 13.7298 5.1359 -6.8896 14.0748 5.7365 -6.4881 15.9777 5.9375 -6.3538 15.7862 5.3654 -6.7362
4 0 17.8855 5.9348 -6.3556 17.853 5.4274 -6.6947 15.7862 5.3654 -6.7362 15.9777 5.9375 -6.3538
3 0 12.1712 5.5698 -6.5996 14.0748 5.7365 -6.4881 13.7298 5.1359 -6.8896
4 0 5.8255 -3.349 -8.084 5.6137 -6.0548 -6.2754 4.9446 -6.0548 -6.2754 5.1862 -3.349 -8.084
4 0 5.1862 -3.349 -8.084 5.4984 0 -8.75 6.101 0 -8.75 5.8255 -3.349 -8.084
4 0 6.147 .9573 -8.5596 6.101 0 -8.75 5.4984 0 -8.75 5.5359 .634 -8.6239
4 0 7.2312 3.349 -8.084 6.3906 2.1813 -8.3162 5.8396 2.3795 -8.2768 6.4367 3.349 -8.084
4 0 5.5359 .634 -8.6239 5.8396 2.3795 -8.2768 6.3906 2.1813 -8.3162 6.147 .9573 -8.5596
3 16 2 6.187 -6.187 10.2942 5.2153 -6.8365 8.7478 4.7989 -7.1148
4 16 18.978 20 -5.75 18.518 6.479 -5.75 2 6.479 -5.75 2 8 -5.75
4 16 18.298 0 -8.75 18.184 -3.349 -8.084 17.5453 -3.349 -8.084 17.6627 0 -8.75
4 16 18.412 3.349 -8.084 18.298 0 -8.75 17.6627 0 -8.75 17.7801 3.349 -8.084
4 16 2 6.187 -6.187 2 6.479 -5.75 18.518 6.479 -5.75 18.508 6.187 -6.187
4 16 5.1862 -3.349 -8.084 4.9446 -6.0548 -6.2754 2 -6.187 -6.187 2 -3.349 -8.084
4 16 17.5453 -3.349 -8.084 18.184 -3.349 -8.084 18.087 -6.187 -6.187 17.4504 -6.0548 -6.2754
4 16 17.4504 -6.0548 -6.2754 18.087 -6.187 -6.187 2 -6.187 -6.187 5.6137 -6.0548 -6.2754
3 16 2 -6.187 -6.187 4.9446 -6.0548 -6.2754 5.6137 -6.0548 -6.2754
4 16 2 -3.349 -8.084 2 0 -8.75 5.4984 0 -8.75 5.1862 -3.349 -8.084
4 16 5.4984 0 -8.75 2 0 -8.75 2 3.349 -8.084 5.5359 .634 -8.6239
3 16 2 3.349 -8.084 6.4367 3.349 -8.084 5.8396 2.3795 -8.2768
3 16 2 3.349 -8.084 5.8396 2.3795 -8.2768 5.5359 .634 -8.6239
3 16 18.412 3.349 -8.084 17.7801 3.349 -8.084 17.853 5.4274 -6.6947
4 16 18.412 3.349 -8.084 17.853 5.4274 -6.6947 17.8855 5.9348 -6.3556 18.508 6.187 -6.187
4 16 15.9777 5.9375 -6.3538 14.0748 5.7365 -6.4881 12.1712 5.5698 -6.5996 2 6.187 -6.187
4 16 2 6.187 -6.187 18.508 6.187 -6.187 17.8855 5.9348 -6.3556 15.9777 5.9375 -6.3538
4 16 7.422 4.2071 -7.5104 6.4367 3.349 -8.084 2 3.349 -8.084 2 6.187 -6.187
3 16 8.7478 4.7989 -7.1148 7.422 4.2071 -7.5104 2 6.187 -6.187
3 16 2 6.187 -6.187 12.1712 5.5698 -6.5996 10.2942 5.2153 -6.8365
4 16 19.25 28 -11.25 18.978 20 -11.25 1.25 20 -11.25 1.25 28 -11.25
4 16 1.25 20 -11.25 18.978 20 -11.25 18.978 20 -5.75 1.25 20 -5.75
4 16 18.978 20 -5.75 2 8 -5.75 1.25 8 -5.75 1.25 20 -5.75
4 22 13.7298 5.1359 -6.8896 15.7862 5.3654 -6.7362 17.853 5.4274 -6.6947 17.7801 3.349 -8.084
4 22 5.6137 -6.0548 -6.2754 5.8255 -3.349 -8.084 17.5453 -3.349 -8.084 17.4504 -6.0548 -6.2754
4 22 17.6627 0 -8.75 17.5453 -3.349 -8.084 5.8255 -3.349 -8.084 6.101 0 -8.75
4 22 6.101 0 -8.75 7.2312 3.349 -8.084 17.7801 3.349 -8.084 17.6627 0 -8.75
3 22 7.2312 3.349 -8.084 8.11 3.8733 -7.7335 9.2942 4.282 -7.4604
4 22 7.2312 3.349 -8.084 9.2942 4.282 -7.4604 11.6795 4.8346 -7.091 17.7801 3.349 -8.084
3 22 11.6795 4.8346 -7.091 13.7298 5.1359 -6.8896 17.7801 3.349 -8.084
4 22 6.3906 2.1813 -8.3162 7.2312 3.349 -8.084 6.101 0 -8.75 6.147 .9573 -8.5596

Status

Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)

Current Votes:

No recorded votes

Part Dependencies

Official parents and subparts

Part Events

Philippe Hurbain [Philo]
Senior Part Reviewer
initially submitted the part.
2026-10-04 07:55:27
