Unofficial File parts/s/7139s02.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

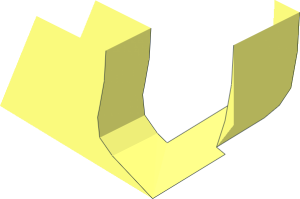

0 ~Technic Gear 20 Tooth One Way Case Clip Recess Half
0 Name: s\7139s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCWShow file code:
2 24 15.3878 5.608 -1.45 15.5284 5.1935 -.5
2 24 15.5284 5.1935 -.5 15.8495 4.2467 0
2 24 17.3651 7.3375 -9.75 17.5925 6.6756 -4.75
3 16 15.16 6.2795 0 15.5284 5.1935 -.5 15.8495 4.2467 0
3 16 15.5284 5.1935 -.5 15.16 6.2795 0 15.3878 5.608 -1.45
3 16 15.3878 5.608 -1.45 15.16 6.2795 0 15.16 6.2795 -6.5
0 BFC INVERTNEXT
1 16 0 0 0 18.2 0 0 0 0 18.2 0 -4.75 0 48\1-24cylo.dat
1 16 0 0 0 1.82323 0 0 0 0 1.82323 0 1 0 48\1-24ring9.dat
2 24 17.1168 6.0712 -1.45 17.2574 5.6568 -.5
2 24 17.2574 5.6568 -.5 17.5794 4.7102 0
2 24 16.968 6.51 -4.75 17.1168 6.0712 -1.45
4 16 15.8495 4.2467 0 15.5284 5.1935 -.5 17.2574 5.6568 -.5 17.6106 4.7185 0
4 16 15.5284 5.1935 -.5 15.3878 5.608 -1.45 17.1168 6.0712 -1.45 17.2574 5.6568 -.5
2 24 16.968 6.51 -4.75 17.5794 4.7102 -4.75
4 16 16.968 6.51 -4.75 17.5794 4.7102 -4.75 17.5794 4.7102 0 17.2574 5.6568 -.5
3 16 17.1168 6.0712 -1.45 16.968 6.51 -4.75 17.2574 5.6568 -.5
1 16 0 0 -4.75 18.2 0 0 0 0 18.2 0 1 0 48\1-24tndis.dat
3 16 18.2 4.7102 -4.75 17.5794 4.7102 -4.75 16.968 6.51 -4.75
1 16 0 0 -6.5 14 0 0 0 0 14 0 -3.25 0 48\1-24cylo.dat
1 16 0 0 -6.5 14 0 0 0 0 14 0 -1 0 48\1-24chrd.dat
1 16 0 0 -9.75 14 0 0 0 0 14 0 1 0 48\1-24chrd.dat
4 16 9 0 -9.75 6.3639 6.3639 -9.75 13.5226 3.6232 -9.75 14 0 -9.75
4 16 10 0 -6.5 14 0 -6.5 13.5226 3.6232 -6.5 7.071 7.071 -6.5
0 BFC INVERTNEXT
1 16 14.8486 4.5513 -6.5 -1.44889 0 -.38823 -.38823 0 1.44889 0 -3.25 0 8\1-4cylo.dat
1 16 14.8486 4.5513 -6.5 -1.44889 0 -.38823 -.38823 0 1.44889 0 -1 0 8\1-4ndis.dat
1 16 14.8486 4.5513 -9.75 -1.44889 0 -.38823 -.38823 0 1.44889 0 1 0 8\1-4ndis.dat
2 24 15.16 6.2795 -6.5 15.3878 5.608 -1.45
2 24 17.5925 6.6756 -4.75 16.9685 6.5084 -4.75
4 16 17.1168 6.0712 -1.45 15.3878 5.608 -1.45 15.16 6.2795 -6.5 16.968 6.51 -4.75
4 16 17.3651 7.3375 -9.75 17.5925 6.6756 -4.75 16.968 6.51 -4.75 15.16 6.2795 -6.5
2 24 17.3651 7.3375 -9.75 14.4603 6 -9.75
2 24 14.4603 6 -6.5 15.16 6.2795 -6.5
3 16 14.4603 6 -6.5 14.4603 6 -9.75 17.3651 7.3375 -9.75
3 16 17.3651 7.3375 -9.75 15.16 6.2795 -6.5 14.4603 6 -6.5
5 24 17.3651 7.3375 -9.75 14.4603 6 -6.5 15.16 6.2795 -6.5 14.4603 6 -9.75
2 24 13.3997 4.1631 -6.5 13.5226 3.6232 -6.5
2 24 13.3997 4.1631 -9.75 13.5226 3.6232 -9.75
4 16 13.5226 3.6232 -9.75 13.3997 4.1631 -9.75 13.3997 4.1631 -6.5 13.5226 3.6232 -6.5
4 16 13.0114 5.612 -9.75 13.3997 4.1631 -9.75 13.5226 3.6232 -9.75 6.3639 6.3639 -9.75
4 16 14.4603 6 -9.75 13.0114 5.612 -9.75 6.3639 6.3639 -9.75 17.3651 7.3375 -9.75
4 16 13.5226 3.6232 -6.5 13.3997 4.1631 -6.5 13.0114 5.612 -6.5 7.071 7.071 -6.5
4 16 7.071 7.071 -6.5 13.0114 5.612 -6.5 14.4603 6 -6.5 15.16 6.2795 -6.5
5 24 17.3651 7.3375 -9.75 15.16 6.2795 -6.5 17.5925 6.6756 -4.75 14.4603 6 -6.5
5 24 17.6106 4.7185 0 15.8495 4.2467 0 16.268 2.1414 0 15.5284 5.1935 -.5
5 24 17.2574 5.6568 -.5 15.5284 5.1935 -.5 17.6106 4.7185 0 15.3878 5.608 -1.45
5 24 17.1168 6.0712 -1.45 15.3878 5.608 -1.45 17.2574 5.6568 -.5 15.16 6.2795 -6.5Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Philippe Hurbain [Philo]
initially submitted the part.
2026-10-23 10:20:58
