Unofficial File parts/41748.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release
External site data provided by Rebrickable.com

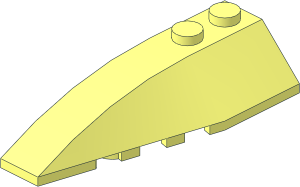

Wedge 2 x 6 Double Left
0 Wedge  2 x  6 Double Left
0 Name: 41748.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Wedge
0 !KEYWORDS Alpha Team, Brickowl 231599, curved, rounded, slope, Star Wars

0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-01 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2012-02-20 [Wesley] added BFC, moved studs from subpart
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2026-10-24 [KnightOfTarenta] Adapted Curve to match 61678.dat
Show file code:
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\41748s01.dat

0 // Studs
1 16 0 0 -10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 0 10 0 0 1 0 1 0 -1 0 0 stud.dat

0 // Patternable Top
1 16 10 149.254 -20 0 -20 0 -149.254 0 0 0 0 -159.993 48\1-12cyli.dat

0 // Patternable Side
4 16 10 0 -20 30 20 -20 30 20 20 10 0 20
3 16 25 20 -40 30 20 -20 10 0 -20
3 16 20 20 -60 25 20 -40 10 1.2836 -40.8791
3 16 15 20 -80 20 20 -60 10 5.0896 -61.4062
3 16 10 20 -99.9965 15 20 -80 10 11.3582 -81.2293
3 16 10 0 -20 10 1.2836 -40.8791 25 20 -40
3 16 10 1.2836 -40.8791 10 5.0896 -61.4062 20 20 -60
3 16 10 5.0896 -61.4062 10 11.3582 -81.2293 15 20 -80
5 24 10 0 -20 30 20 -20 30 20 20 25 20 -40
5 24 10 0 -20 25 20 -40 30 20 -20 10 1.2836 -40.8791
5 24 25 20 -40 10 1.2836 -40.8791 20 20 -60 10 0 -20
5 24 10 1.2836 -40.8791 20 20 -60 25 20 -40 10 5.0896 -61.4062
5 24 20 20 -60 10 5.0896 -61.4062 15 20 -80 10 1.2836 -40.8791
5 24 10 5.0896 -61.4062 15 20 -80 20 20 -60 10 11.3582 -81.2293
5 24 15 20 -80 10 11.3582 -81.2293 10 20 -99.9965 10 5.0896 -61.4062
5 24 10 0 -20 -10 0 -20 -10 2 -40 10 0 20

Status

Not releaseable Needs 2 More Votes (F) Needs 2 More Votes (F)

Current Votes:

No recorded votes
This part has the following automated holds from the Parts Tracker

Part Dependencies

Official parents and subparts

Part Events

Archived Part Events:
Chris Böhnke [KnightOfTarenta]
Part Header Editor
initially submitted the part.
2026-10-24 00:09:40
*part of the curved slope rework
*mirrored version, patterns and shortcuts will come once this is finalized
*bottom looked better than the other ones at first glance, so left unchanged for now
