Unofficial File parts/41747.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

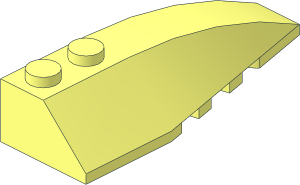

0 Wedge 2 x 6 Double Right
0 Name: 41747.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Wedge
0 !KEYWORDS Alpha Team, Brickowl 117198, curved, rounded, slope, Star Wars
0 !PREVIEW 16 0 0 0 -1 0 0 0 1 0 0 0 -1
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-01 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2012-02-20 [Wesley] added BFC, moved studs from subpart
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2026-10-25 [KnightOfTarenta] Adapted Curve to match 61678.datShow file code:
0 // Base Part
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\41748s01.dat
0 // Studs
1 16 0 0 -10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 0 10 0 0 1 0 1 0 -1 0 0 stud.dat
0 // Patternable Top
1 16 10 149.254 -20 0 -20 0 -149.254 0 0 0 0 -159.993 48\1-12cyli.dat
0 // Patternable Side
3 16 -10 0 -20 -30 20 -20 -25 20 -40
3 16 -10 1.2836 -40.8791 -25 20 -40 -20 20 -60
3 16 -10 5.0896 -61.4062 -20 20 -60 -15 20 -80
3 16 -10 11.3582 -81.2293 -15 20 -80 -10 20 -100
3 16 -25 20 -40 -10 1.2836 -40.8791 -10 0 -20
3 16 -20 20 -60 -10 5.0896 -61.4062 -10 1.2836 -40.8791
3 16 -15 20 -80 -10 11.3582 -81.2293 -10 5.0896 -61.4062
4 16 -10 0 20 -30 20 20 -30 20 -20 -10 0 -20
5 24 -10 0 -20 -30 20 -20 -30 20 20 -25 20 -40
5 24 -10 0 -20 -25 20 -40 -30 20 -20 -10 1.2836 -40.8791
5 24 -25 20 -40 -10 1.2836 -40.8791 -20 20 -60 -10 0 -20
5 24 -10 1.2836 -40.8791 -20 20 -60 -25 20 -40 -10 5.0896 -61.4062
5 24 -20 20 -60 -10 5.0896 -61.4062 -15 20 -80 -10 1.2836 -40.8791
5 24 -10 5.0896 -61.4062 -15 20 -80 -20 20 -60 -10 11.3582 -81.2293
5 24 -15 20 -80 -10 11.3582 -81.2293 -10 20 -100 -10 5.0896 -61.4062Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-10-25 20:30:38
Part of the curve rework.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-10-25 20:31:23
Should this get a preview? Looks identical to the 1x6 from that angle...
Willy Tschager [Holly-Wood]
edited the part header.
2026-10-25 20:50:14
Header Edits
preview:
to
0 !PREVIEW 16 0 0 0 1 0 0 0 -1 0 0 0 -1
Agree
Willy Tschager [Holly-Wood]
edited the part header.
2026-10-25 20:50:40
Header Edits
preview:
0 !PREVIEW 16 0 0 0 1 0 0 0 -1 0 0 0 -1
to
0 !PREVIEW 16 0 0 0 -1 0 0 0 1 0 0 0 -1
Magnus Forsberg [MagFors]
made the following comment.
2026-10-25 21:59:27
IMO, it is wrong to have a preview rotation on the base part.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-10-25 22:07:19
I agree that it feels off.
But there are cases where the part family forces a sub-optimal orientation. Is this a question for the forum?
But there are cases where the part family forces a sub-optimal orientation. Is this a question for the forum?
