Official File parts/32064a.dat
Part Attributes:
File Header:

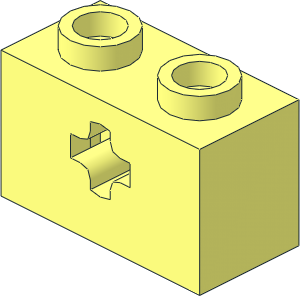

0 Technic Brick 1 x 2 with Axlehole with Open Sides and Stud Blocker
0 Name: 32064a.dat
0 Author: Lutz Uhlmann [El-Lutzo]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 32064
0 !HISTORY 1998-02-12 [PTadmin] Official Update 1998-02
0 !HISTORY 2002-08-31 [izanette] Modified with WINDZ for BFC compliance
0 !HISTORY 2003-11-25 [sbliss] Cleaned up axlehole
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-07-22 [PTadmin] renamed from 32064
0 !HISTORY 2009-08-31 [arezey] Eliminated bottom overlaps, added missing edges
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
0 !HISTORY 2022-01-29 [MagFors] Reworked axlehole
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32064s01.dat
1 16 0 10 10 0 0 1 -1 0 0 0 -20 0 axlehol5.dat
2 24 2 15.6023 10 0 16 10
2 24 -2 15.6023 10 0 16 10
2 24 2 4.3977 10 0 4 10
2 24 -2 4.3977 10 0 4 10
2 24 2 15.6023 -10 0 16 -10
2 24 -2 15.6023 -10 0 16 -10
2 24 2 4.3977 -10 0 4 -10
2 24 -2 4.3977 -10 0 4 -10
1 16 5.80115 8 0 .19885 0 0 0 -1 0 0 0 -10 rect2p.dat
1 16 -5.80115 8 0 .19885 0 0 0 -1 0 0 0 -10 rect2p.dat
1 16 -5.80115 12 0 -.19885 0 0 0 1 0 0 0 -10 rect2p.dat
1 16 5.80115 12 0 -.19885 0 0 0 1 0 0 0 -10 rect2p.dat
1 16 6 10 -8 0 1 0 0 0 2 2 0 0 rect.dat
1 16 6 10 8 0 1 0 -2 0 0 0 0 2 rect.dat
1 16 -6 10 -8 0 -1 0 -2 0 0 0 0 -2 rect.dat
1 16 -6 10 8 0 -1 0 0 0 -2 2 0 0 rect.dat
4 16 5.5432 12.2961 -10 6 16 -10 6 12 -10 5.6023 12 -10
4 16 5.54328 7.7039 -10 5.6023 8 -10 6 8 -10 6 4 -10
4 16 -5.6023 8 -10 -5.5434 7.7038 -10 -6 4 -10 -6 8 -10
4 16 -6 16 -10 -5.5434 12.2962 -10 -5.6023 12 -10 -6 12 -10
4 16 5.6023 8 10 5.5432 7.7039 10 6 4 10 6 8 10
4 16 -6 4 10 -5.5434 7.7038 10 -5.6023 8 10 -6 8 10
4 16 -6 16 10 -6 12 10 -5.6023 12 10 -5.5434 12.2962 10
4 16 6 16 10 5.54328 12.2961 10 5.6023 12 10 6 12 10
0 BFC INVERTNEXT
1 16 -11 6 0 0 5 0 0 0 -2 -6 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 11 6 0 0 -5 0 0 0 -2 -6 0 0 box2-7.dat
2 24 6 8 -6 6 8 6
2 24 -6 8 6 -6 8 -6
2 24 16 24 6 6 24 6
2 24 3.5 24 6 -3.5 24 6
2 24 -6 24 6 -16 24 6
2 24 16 24 -6 6 24 -6
2 24 3.5 24 -6 -3.5 24 -6
2 24 -6 24 -6 -16 24 -6
1 16 0 10 6 0 0 -8 8 0 0 0 -12 0 1-8cylo.dat
1 16 0 10 6 0 0 8 8 0 0 0 -12 0 1-8cylo.dat
4 16 6 15.1433 -4.55 5.6568 15.6568 -6 5.6568 15.6568 6 6 15.1433 4.55
2 24 6 12 -6 6 12 6
2 24 6 15.1433 4.55 6 15.1433 -4.55
4 16 6 12 6 6 12 -6 6 15.1433 -4.55 6 15.1433 4.55
5 24 5.6568 15.6568 6 5.6568 15.6568 -6 6 15.1433 4.55 3.0616 17.3912 6
4 16 -5.6568 15.6568 6 -5.6568 15.6568 -6 -6 15.1433 -4.55 -6 15.1433 4.55
2 24 -6 12 -6 -6 12 6
2 24 -6 15.1433 4.55 -6 15.1433 -4.55
4 16 -6 15.1433 -4.55 -6 12 -6 -6 12 6 -6 15.1433 4.55
5 24 -5.6568 15.6568 6 -5.6568 15.6568 -6 -6 15.1433 4.55 -3.0616 17.3912 6
4 16 6 12 -6 6 8 -6 16 4 -6 16 24 -6
3 16 6 12 -6 16 24 -6 6 24 -6
4 16 16 4 6 6 8 6 6 12 6 16 24 6
3 16 6 24 6 16 24 6 6 12 6
4 16 -16 4 -6 -6 8 -6 -6 12 -6 -16 24 -6
3 16 -6 24 -6 -16 24 -6 -6 12 -6
4 16 -6 12 6 -6 8 6 -16 4 6 -16 24 6
3 16 -6 12 6 -16 24 6 -6 24 6
3 16 -16 4 -6 -6 4 -6 -6 8 -6
3 16 -6 8 6 -6 4 6 -16 4 6
3 16 6 4 6 6 8 6 16 4 6
3 16 6 4 -6 16 4 -6 6 8 -6
4 16 3.5 17.0982 6 -3.5 17.0982 6 -3.5 24 6 3.5 24 6
4 16 -3.5 17.0982 -6 3.5 17.0982 -6 3.5 24 -6 -3.5 24 -6
0 // stud blockers
2 24 4.95 24 -3.5 3.5 24 -3.5
2 24 6 24 -4.55 4.95 24 -3.5
2 24 6 24 -4.55 6 24 -6
4 16 6 24 -6 3.5 24 -6 3.5 24 -3.5 6 24 -4.55
3 16 3.5 24 -3.5 4.95 24 -3.5 6 24 -4.55
4 16 4.95 24 -3.5 4.95 16.1292 -3.5 6 15.1433 -4.55 6 24 -4.55
4 16 3.5 24 -3.5 3.5 17.0982 -3.5 4.95 16.1292 -3.5 4.95 24 -3.5
1 16 3.5 20.5491 -4.75 0 1 0 0 0 3.4509 1.25 0 0 rect.dat
2 24 6 12 -6 6 24 -6
2 24 6 15.1433 -4.55 6 24 -4.55
4 16 6 12 -6 6 24 -6 6 24 -4.55 6 15.1433 -4.55
2 24 4.95 16.1292 -3.5 3.5 17.0982 -3.5
2 24 5.6568 15.6568 -4.2068 6 15.1433 -4.55
2 24 4.95 16.1292 -3.5 5.6568 15.6568 -4.2068
2 24 4.95 24 -3.5 4.95 16.1292 -3.5
2 24 -4.95 24 -3.5 -3.5 24 -3.5
2 24 -6 24 -4.55 -4.95 24 -3.5
2 24 -6 24 -4.55 -6 24 -6
4 16 -3.5 24 -3.5 -3.5 24 -6 -6 24 -6 -6 24 -4.55
3 16 -4.95 24 -3.5 -3.5 24 -3.5 -6 24 -4.55
4 16 -6 15.1433 -4.55 -4.95 16.1292 -3.5 -4.95 24 -3.5 -6 24 -4.55
4 16 -4.95 16.1292 -3.5 -3.5 17.0982 -3.5 -3.5 24 -3.5 -4.95 24 -3.5
1 16 -3.5 20.5491 -4.75 0 -1 0 -3.4509 0 0 0 0 -1.25 rect.dat
2 24 -6 12 -6 -6 24 -6
2 24 -6 15.1433 -4.55 -6 24 -4.55
4 16 -6 24 -4.55 -6 24 -6 -6 12 -6 -6 15.1433 -4.55
2 24 -4.95 16.1292 -3.5 -3.5 17.0982 -3.5
2 24 -5.6568 15.6568 -4.2068 -6 15.1433 -4.55
2 24 -4.95 16.1292 -3.5 -5.6568 15.6568 -4.2068
2 24 -4.95 24 -3.5 -4.95 16.1292 -3.5
2 24 4.95 24 3.5 3.5 24 3.5
2 24 6 24 4.55 4.95 24 3.5
2 24 6 24 4.55 6 24 6
4 16 3.5 24 3.5 3.5 24 6 6 24 6 6 24 4.55
3 16 4.95 24 3.5 3.5 24 3.5 6 24 4.55
4 16 6 15.1433 4.55 4.95 16.1292 3.5 4.95 24 3.5 6 24 4.55
4 16 4.95 16.1292 3.5 3.5 17.0982 3.5 3.5 24 3.5 4.95 24 3.5
1 16 3.5 20.5491 4.75 0 1 0 -3.4509 0 0 0 0 1.25 rect.dat
2 24 6 12 6 6 24 6
2 24 6 15.1433 4.55 6 24 4.55
4 16 6 24 4.55 6 24 6 6 12 6 6 15.1433 4.55
2 24 4.95 16.1292 3.5 3.5 17.0982 3.5
2 24 5.6568 15.6568 4.2068 6 15.1433 4.55
2 24 4.95 16.1292 3.5 5.6568 15.6568 4.2068
2 24 4.95 16.1292 3.5 4.95 24 3.5
2 24 -4.95 24 3.5 -3.5 24 3.5
2 24 -6 24 4.55 -4.95 24 3.5
2 24 -6 24 4.55 -6 24 6
4 16 -6 24 6 -3.5 24 6 -3.5 24 3.5 -6 24 4.55
3 16 -3.5 24 3.5 -4.95 24 3.5 -6 24 4.55
4 16 -4.95 24 3.5 -4.95 16.1292 3.5 -6 15.1433 4.55 -6 24 4.55
4 16 -3.5 24 3.5 -3.5 17.0982 3.5 -4.95 16.1292 3.5 -4.95 24 3.5
1 16 -3.5 20.5491 4.75 0 -1 0 0 0 3.4509 -1.25 0 0 rect.dat
2 24 -6 12 6 -6 24 6
2 24 -6 15.1433 4.55 -6 24 4.55
4 16 -6 12 6 -6 24 6 -6 24 4.55 -6 15.1433 4.55
2 24 -4.95 16.1292 3.5 -3.5 17.0982 3.5
2 24 -5.6568 15.6568 4.2068 -6 15.1433 4.55
2 24 -4.95 16.1292 3.5 -5.6568 15.6568 4.2068
2 24 -4.95 16.1292 3.5 -4.95 24 3.5
