Official File parts/32109.dat
Part Attributes:
File Header:

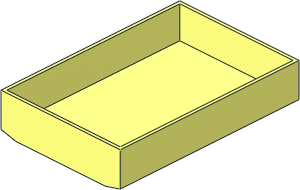

0 ~Electric Mindstorms RCX 8 x 12 Bottom Cover
0 Name: 32109.dat
0 Author: John Van Zwieten [jvan]
0 !LDRAW_ORG Part UPDATE 2022-06
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1999-03-26 [PTadmin] Official Update 1999-02
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2017-08-13 [MagFors] bfc'd, made inside
0 !HISTORY 2022-09-12 [MagFors] made corner half studs
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
1 16 0 44 0 1 0 0 0 -1 0 0 0 1 stug4-1x5.dat
1 16 0 44 60 1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
1 16 0 44 -60 1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
0 BFC INVERTNEXT
1 16 0 48 0 0 0 56 0 -4 0 -116 0 0 box5.dat
4 16 60 48 -120 56 48 -116 56 48 116 60 48 120
4 16 -56 48 116 -56 48 -116 -60 48 -120 -60 48 120
4 16 -56 48 -116 56 48 -116 60 48 -120 -60 48 -120
4 16 60 48 120 56 48 116 -56 48 116 -60 48 120
1 16 0 0 0 80 0 0 0 43 0 0 0 120 box4o4a.dat
2 24 80 43 120 80 43 -120
2 24 -80 43 120 -80 43 -120
1 16 -60 45.955 0 0 1 0 2.045 0 0 0 0 -117 rect.dat
1 16 60 45.955 0 0 -1 0 0 0 2.045 -117 0 0 rect.dat
4 16 -76.3637 43.9091 110 -60 43.91 117 -60 43.91 -117 -76.3639 43.91 -110
4 16 60 43.91 -117 60 43.91 117 76.3639 43.91 110 76.3639 43.91 -110
4 16 -76.3639 43.91 -110 -80 43 -120 -80 43 120 -76.3637 43.9091 110
4 16 80 43 120 80 43 -120 76.3639 43.91 -110 76.3639 43.91 110
2 24 60 48 120 -60 48 120
2 24 -60 48 -120 60 48 -120
4 16 60 48 -120 80 43 -120 -80 43 -120 -60 48 -120
4 16 -80 43 120 80 43 120 60 48 120 -60 48 120
0 // sloping offset studs
1 16 70 46 90 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 70 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 50 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 30 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 10 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -10 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -30 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -50 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -70 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -90 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 -110 1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 70 46 110 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 90 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 70 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 50 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 30 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 10 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 -10 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 -30 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 -50 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 -70 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 70 46 -90 1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
0 // integrated end stud
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32109s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32109s02.dat
2 24 76.3639 43.909 103.6361 76.3639 43.909 96.3639
2 24 76.3639 43.909 83.6361 76.3639 43.909 76.3639
2 24 76.3639 43.909 63.6361 76.3639 43.909 56.3639
2 24 76.3639 43.909 43.6361 76.3639 43.909 36.3639
2 24 76.3639 43.909 23.6361 76.3639 43.909 16.3639
2 24 76.3639 43.909 3.6361 76.3639 43.909 -3.6361
2 24 76.3639 43.909 -16.3639 76.3639 43.909 -23.6361
2 24 76.3639 43.909 -36.3639 76.3639 43.909 -43.6361
2 24 76.3639 43.909 -56.3639 76.3639 43.909 -63.6361
2 24 76.3639 43.909 -76.3639 76.3639 43.909 -83.6361
2 24 76.3639 43.909 -96.3639 76.3639 43.909 -103.6361
0 // sloping offset studs
1 16 -70 46 90 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 70 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 50 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 30 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 10 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -10 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -30 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -50 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -70 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -90 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 -110 -1 0 0 0 -1 0 0 0 1 s\32109s01.dat
1 16 -70 46 110 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 90 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 70 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 50 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 30 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 10 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 -10 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 -30 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 -50 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 -70 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
1 16 -70 46 -90 -1 0 0 0 -1 0 0 0 -1 s\32109s01.dat
0 // integrated end stud
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32109s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\32109s02.dat
2 24 -76.3639 43.909 103.6361 -76.3639 43.909 96.3639
2 24 -76.3639 43.909 83.6361 -76.3639 43.909 76.3639
2 24 -76.3639 43.909 63.6361 -76.3639 43.909 56.3639
2 24 -76.3639 43.909 43.6361 -76.3639 43.909 36.3639
2 24 -76.3639 43.909 23.6361 -76.3639 43.909 16.3639
2 24 -76.3639 43.909 3.6361 -76.3639 43.909 -3.6361
2 24 -76.3639 43.909 -16.3639 -76.3639 43.909 -23.6361
2 24 -76.3639 43.909 -36.3639 -76.3639 43.909 -43.6361
2 24 -76.3639 43.909 -56.3639 -76.3639 43.909 -63.6361
2 24 -76.3639 43.909 -76.3639 -76.3639 43.909 -83.6361
2 24 -76.3639 43.909 -96.3639 -76.3639 43.909 -103.6361
0 // inside
0 BFC INVERTNEXT
1 16 0 0 0 76 0 0 0 40.5 0 0 0 116 box5.dat
4 16 -76 0 -116 -76 0 116 -80 0 120 -80 0 -120
4 16 80 0 120 -80 0 120 -76 0 116 76 0 116
4 16 80 0 -120 80 0 120 76 0 116 76 0 -116
4 16 80 0 -120 76 0 -116 -76 0 -116 -80 0 -120
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © John Van Zwieten
Licensed under CC BY 2.0
