File Detail parts/32214.dat

Official File parts/32214.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

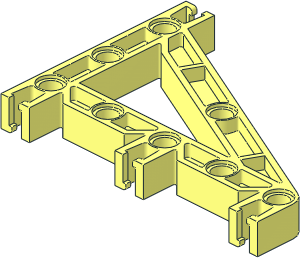

0 Znap Beam Angle  8 Holes
0 Name: 32214.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2005-08-03 [mikeheide] added details and BFC'ed
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2024-02-20 [GeraldLasser] Complete Re-Write original by t.woelk
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32214s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\32214s01.dat

1 16 0 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 -40 0 0 1 0 1 0 -1 0 0 znap3a.dat
1 16 40 0 -40 0 0 1 0 1 0 -1 0 0 znap2.dat
1 16 40 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 40 0 -50 -20 0 0 0 0 10 0 1 0 rect2p.dat
1 16 40 0 -40 0 0 -1 0 1 0 -1 0 0 znap2.dat
1 16 80 0 -40 0 0 -1 0 1 0 -1 0 0 znap3b.dat
1 16 80 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 80 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 80 0 -40 0 0 1 0 1 0 -1 0 0 znap3b.dat
1 16 120 0 -40 0 0 1 0 1 0 1 0 0 znap2a.dat
1 16 120 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 120 0 -50 -20 0 0 0 0 10 0 1 0 rect2p.dat
1 16 120 0 -40 0 0 -1 0 1 0 1 0 0 znap2a.dat
1 16 160 0 -40 0 0 -1 0 1 0 -1 0 0 znap3a.dat
1 16 160 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 160 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 170 0 -52.5 0 -1 0 0 0 -10 12.5 0 0 rect2p.dat

1 16 0 0 -40 1 0 0 0 1 0 0 0 -1 znap2a.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 znap2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 znap2.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 znap2a.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 60 -1 0 0 0 1 0 0 0 -1 znap6.dat

1 16 -10 0 0 0 1 0 0 0 10 65 0 0 rect2p.dat
1 16 10 0 55.58995 0 -1 0 0 0 -10 9.41005 0 0 rect2p.dat

0 BFC INVERTNEXT
1 16 11 -10 25.0118 -1 0 0 0 20 0 0 0 1 8\3-8cylo.dat
1 16 14.4602 0 22.9658 0 1 2.7531 10 0 0 0 0 -2.7531 rect3.dat
1 16 10 0 -2.4941 0 -1 0 0 0 10 -27.5059 0 0 rect2p.dat
1 16 61.75895 0 -30 0 0 -51.75895 10 0 0 0 -1 0 rect3.dat
0 BFC INVERTNEXT
1 16 113.5179 -10 -29 0 0 1 0 20 0 -1 0 0 8\3-8cylo.dat
5 24 114.225 10 -28.2929 114.225 -10 -28.2929 114.5179 -10 -29 93.4165 -10 -17.8885
5 24 11.7071 -10 25.7189 11.7071 10 25.7189 17.2133 10 20.2127 11 10 26.0118

0 // Diagonal Section
1 16 160 -10 -40 10 0 0 0 20 0 0 0 10 3-16cylo.dat
1 16 38.29175 0 32.0342 0 -1 -28.29175 10 0 0 0 0 14.1457 rect3.dat
1 16 84.4721 0 8.9443 17.8886 -1 0 0 0 10 -8.9442 0 0 rect2p.dat
1 16 133.09385 0 -15.38045 30.73315 -1 0 0 0 10 -15.38055 0 0 rect2p.dat
5 24 163.827 -10 -30.761 163.827 10 -30.761 167.071 10 -32.929 102.3607 10 .0001

1 16 80 0 0 -.44721 0 .89443 0 1 0 -.89443 0 -.44721 znap2.dat
1 16 80 0 0 .89443 0 .44721 0 1 0 -.44721 0 .89443 connhole.dat
1 16 80 0 0 -.44721 0 -.89443 0 1 0 -.89443 0 .44721 znap2.dat

1 16 37.4263 0 10.1063 -20.213 1 0 0 0 10 10.1064 0 0 rect2p.dat
1 16 75.5279 0 -8.9443 17.8886 1 0 0 0 -10 -8.9442 0 0 rect2p.dat
1 16 103.82075 0 -23.0907 -10.40425 1 0 0 0 10 5.2022 0 0 rect2p.dat
