Official File parts/32216.dat
Part Attributes:
File Header:

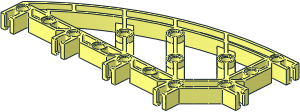

0 Znap Beam Curved 14 Holes
0 Name: 32216.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2005-08-14 [mikeheide] added details and BFC'ed
0 !HISTORY 2005-08-14 [mikeheide] added some missing lines
0 !HISTORY 2011-02-28 [Philo] Closed gaps with Unificator, used cyli around middle connholes, other small improvements
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2024-02-16 [GeraldLasser] Complete Rewrite original by t.woelk
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\32216s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32216s01.dat
0 // Frame
1 16 -170 0 -47.5 0 1 0 -10 0 0 0 0 17.5 rect3.dat
1 16 -160 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 -160 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -160 0 -40 0 0 1 0 1 0 -1 0 0 znap3b.dat
1 16 -120 0 -40 0 0 1 0 1 0 1 0 0 znap2a.dat
1 16 -120 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -120 0 -40 0 0 -1 0 1 0 1 0 0 znap2.dat
1 16 -80 0 -40 0 0 -1 0 -1 0 -1 0 0 znap3b.dat
1 16 -80 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 -80 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -80 0 -40 0 0 1 0 1 0 -1 0 0 znap3b.dat
1 16 -40 0 -40 0 0 1 0 -1 0 1 0 0 znap2.dat
1 16 -40 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -40 0 -40 0 0 -1 0 1 0 1 0 0 znap2.dat
1 16 0 0 -40 0 0 -1 0 -1 0 -1 0 0 znap3b.dat
1 16 0 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 -40 0 0 1 0 1 0 -1 0 0 znap3b.dat
1 16 40 0 -40 0 0 1 0 1 0 -1 0 0 znap2.dat
1 16 40 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 40 0 -40 0 0 -1 0 1 0 1 0 0 znap2.dat
1 16 80 0 -40 0 0 -1 0 -1 0 -1 0 0 znap3a.dat
1 16 80 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 80 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 90 0 -54.571 0 -1 0 0 0 10 -10.429 0 0 rect.dat
1 16 -120 0 -50 -20 0 0 0 0 10 0 1 0 rect2p.dat
1 16 -40 0 -50 -20 0 0 0 0 10 0 1 0 rect2p.dat
1 16 40 0 -50 -20 0 0 0 0 10 0 1 0 rect2p.dat
1 16 80 0 -40 .70711 0 -.70711 0 1 0 -.70711 0 -.70711 znap2a.dat
1 16 100 0 -20 .7071 0 5.8579 0 1 0 -.7071 0 5.8579 znap5.dat
1 16 120 0 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 znap2a.dat
1 16 120 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 140 0 0 0 0 -1 0 1 0 1 0 0 znap6.dat
1 16 134.571 0 -10 -10.429 0 0 0 0 10 0 1 0 rect.dat
1 16 120 0 0 1 0 0 0 1 0 0 0 1 znap3a.dat
1 16 120 0 40 1 0 0 0 1 0 0 0 1 znap2.dat
1 16 120 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 120 0 40 -1 0 0 0 1 0 0 0 -1 znap2.dat
1 16 120 0 80 1 0 0 0 -1 0 0 0 -1 znap3a.dat
1 16 120 0 80 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 140 0 80 0 0 -1 0 1 0 1 0 0 znap6.dat
0 // Inner Bow Meets
1 16 -130.2978 0 -26.8738 3.1262 -1 0 0 0 10 -3.1262 0 0 rect.dat
4 16 -127.1716 10 -30 -127.1716 -10 -30 -24.1422 -2 -30 -24.1422 2 -30
0 // Left Strut with Connhole
1 16 -40 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
4 16 -72.9696 2 18.8274 -72.9696 -2 18.8274 -75 -10 17.74 -75 10 17.74
4 16 -75 10 17.74 -75 -10 17.74 -96.684 -10 4.285 -96.684 10 4.285
4 16 -96.684 10 4.285 -96.684 -10 4.285 -117.432 -10 -10.574 -117.432 10 -10.574
4 16 -133.424 10 -23.7476 -117.432 10 -10.574 -117.432 -10 -10.574 -133.424 -10 -23.7476
4 16 -52.497 -10 29.791 -54.5496 -2 28.6918 -54.5496 2 28.6918 -52.497 10 29.791
1 16 -35.60665 0 -18.53555 0 1 11.46445 2 0 0 0 0 -11.46445 rect3.dat
1 16 -60.02035 0 5.87815 0 1 -12.94925 -2 0 0 0 0 12.94925 rect3.dat
0 // Strut with Two Connholes
1 16 -14.39335 0 -11.46445 0 -1 18.53555 -2 0 0 0 0 -18.53555 rect3.dat
1 16 -43.73925 0 17.88145 0 -1 -10.81035 2 0 0 0 0 10.81035 rect3.dat
1 16 -12.78475 0 38.64255 0 1 -5.71365 -2 0 0 0 0 5.71365 rect3.dat
1 16 12.9289 0 12.9289 -20 1 0 0 0 2 20 0 0 rect2p.dat
1 16 44.39335 0 -18.53555 0 1 11.46445 2 0 0 0 0 -11.46445 rect3.dat
4 16 4.1422 2 -30 4.1422 -2 -30 55.8578 -2 -30 55.8578 2 -30
4 16 -52.497 -10 29.791 -52.497 10 29.791 -29.253 10 40.321 -29.253 -10 40.321
4 16 -18.4984 -2 44.3562 -29.253 -10 40.321 -29.253 10 40.321 -18.4984 2 44.3562
1 16 40 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
0 // Right Strut with Connhole
1 16 80 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
4 16 19.068 10 56.701 19.068 -10 56.701 2.4769 -2 51.6653 2.4769 2 51.6653
4 16 80 2 -25.8578 80 -2 -25.8578 87.0711 -10 -18.7869 87.0711 10 -18.7869
1 16 63.53555 0 -9.39335 0 -1 16.46445 -2 0 0 0 0 -16.46445 rect3.dat
1 16 27.0711 0 27.0711 20 -1 0 0 0 2 -20 0 0 rect2p.dat
1 16 4.774 0 49.3682 0 -1 -2.2971 2 0 0 0 0 2.2971 rect3.dat
4 16 43.4529 -2 62.4049 19.068 -10 56.701 19.068 10 56.701 43.4529 2 62.4049
1 16 58.1909 0 47.6669 0 1 -14.738 -2 0 0 0 0 14.738 rect3.dat
1 16 89.39335 0 16.46445 0 1 16.46445 2 0 0 0 0 -16.46445 rect3.dat
4 16 98.7867 10 -7.0711 98.7867 -10 -7.0711 105.8578 -2 0 105.8578 2 0
1 16 98.53555 0 35.60665 0 -1 11.46445 -2 0 0 0 0 -11.46445 rect3.dat
1 16 77.39705 0 56.74515 0 -1 -9.67405 2 0 0 0 0 9.67405 rect3.dat
4 16 69.105 -10 66.646 67.723 -2 66.4192 67.723 2 66.4192 69.105 10 66.646
4 16 94.494 -10 69.181 69.105 -10 66.646 69.105 10 66.646 94.494 10 69.181
4 16 94.494 -10 69.181 94.494 10 69.181 110 10 70 110 -10 70
4 16 110 -10 70 110 10 70 110 2 24.1422 110 -2 24.1422
2 24 110 -10 70 110 10 70
1 16 130 0 40 0 -1 0 0 0 -10 20 0 0 rect2p.dat
1 16 118.53545 0 -15.60655 5.60655 -1 0 0 0 -10 5.60655 0 0 rect2p.dat
1 16 95.60655 0 -38.53545 -5.60655 -1 0 0 0 10 -5.60655 0 0 rect2p.dat
1 16 132.5 0 90 -12.5 0 0 0 0 -10 0 -1 0 rect2p.dat
0 // Bow
0 // large curve (radius outer 410 inner 390)
4 16 -150.313 10 -11.762 -170 10 -30 -170 -10 -30 -150.313 -10 -11.762
4 16 -129.608 10 5.294 -150.313 10 -11.762 -150.313 -10 -11.762 -129.608 -10 5.294
4 16 -107.796 10 20.915 -129.608 10 5.294 -129.608 -10 5.294 -107.796 -10 20.915
4 16 -107.796 10 20.915 -107.796 -10 20.915 -85 -10 35.06 -85 10 35.06
4 16 -61.343 10 47.729 -85 10 35.06 -85 -10 35.06 -61.343 -10 47.729
4 16 -61.343 10 47.729 -61.343 -10 47.729 -36.907 -10 58.799 -36.907 10 58.799
4 16 -36.907 10 58.799 -36.907 -10 58.799 -11.774 -10 68.229 -11.774 10 68.229
4 16 -11.774 10 68.229 -11.774 -10 68.229 13.892 -10 76.019 13.892 10 76.019
4 16 40.009 10 82.128 13.892 10 76.019 13.892 -10 76.019 40.009 -10 82.128
4 16 40.009 10 82.128 40.009 -10 82.128 66.495 -10 86.474 66.495 10 86.474
4 16 93.186 10 89.139 66.495 10 86.474 66.495 -10 86.474 93.186 -10 89.139
4 16 120 10 90 93.186 10 89.139 93.186 -10 89.139 120 -10 90
5 24 -117.432 10 -10.574 -117.432 -10 -10.574 -133.424 -10 -23.7476 -96.684 10 4.285
5 24 66.495 -10 86.474 66.495 10 86.474 40.009 10 82.128 93.186 -10 89.139
5 24 94.494 -10 69.181 94.494 10 69.181 110 10 70 69.105 -10 66.646
5 24 69.105 10 66.646 69.105 -10 66.646 94.494 10 69.181 67.723 -2 66.4192
5 24 -29.253 -10 40.321 -29.253 10 40.321 -18.4984 2 44.3562 -52.497 -10 29.791
5 24 -75 -10 17.74 -75 10 17.74 -96.684 -10 4.285 -72.9696 2 18.8274
5 24 -107.796 10 20.915 -107.796 -10 20.915 -85 -10 35.06 -129.608 10 5.294
5 24 -61.343 10 47.729 -61.343 -10 47.729 -36.907 -10 58.799 -85 10 35.06
5 24 -129.608 -10 5.294 -129.608 10 5.294 -150.313 10 -11.762 -107.796 -10 20.915
5 24 13.892 -10 76.019 13.892 10 76.019 40.009 -10 82.128 -11.774 10 68.229
5 24 40.009 10 82.128 40.009 -10 82.128 66.495 -10 86.474 13.892 10 76.019
5 24 -36.907 -10 58.799 -36.907 10 58.799 -61.343 10 47.729 -11.774 -10 68.229
5 24 -85 -10 35.06 -85 10 35.06 -61.343 -10 47.729 -107.796 10 20.915
5 24 -52.497 10 29.791 -52.497 -10 29.791 -54.5496 -2 28.6918 -29.253 10 40.321
5 24 120 10 90 120 -10 90 145 -10 90 93.186 10 89.139
5 24 19.068 10 56.701 19.068 -10 56.701 43.4529 2 62.4049 2.4769 -2 51.6653
5 24 -11.774 10 68.229 -11.774 -10 68.229 13.892 -10 76.019 -36.907 10 58.799
5 24 93.186 -10 89.139 93.186 10 89.139 66.495 10 86.474 120 -10 90
5 24 -96.684 10 4.285 -96.684 -10 4.285 -117.432 -10 -10.574 -75 10 17.74
5 24 -150.313 10 -11.762 -150.313 -10 -11.762 -170 10 -30 -129.608 -10 5.294
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
References a missing n_znap2.dat file:
1 16 120 0 40 1 0 0 0 1 0 0 0 1 n_znap2.dat
1 16 120 0 40 1 0 0 0 1 0 0 0 1 n_znap2.dat
....ah one i missed :-)
2024-02-26 12:30:50
2024-03-17 16:57:09
2024-03-22 19:45:46
2024-03-24 17:24:16
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
