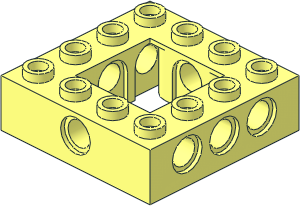

Technic Brick 4 x 4 with Open Centre 2 x 2

File Header:

0 Technic Brick  4 x  4 with Open Centre  2 x  2
0 Name: 32324.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2002-04-17 [sbliss] Reworked with primitive files and BFC
0 !HISTORY 2002-06-11 [PTadmin] Official Update 2002-03
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-10-07 [Sirio] Introduced stud grups and correct shape of underside studs
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

0 // Subparts

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32324s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32324s01.dat
0 // Primitives
1 16 0 12 0 40 0 0 0 12 0 0 0 40 box0.dat
1 16 0 0 0 20 0 0 0 1 0 0 0 20 recte4.dat
1 16 0 24 0 36 0 0 0 1 0 0 0 36 recte4.dat
0 // Upper studs
1 16 -10 0 30 0 0 1 0 1 0 -1 0 0 stug2-3x1.dat
1 16 30 0 10 0 0 1 0 1 0 -1 0 0 stug2-1x3.dat
1 16 -30 0 -10 0 0 1 0 1 0 -1 0 0 stug2-1x3.dat
1 16 10 0 -30 0 0 1 0 1 0 -1 0 0 stug2-3x1.dat
