Official File parts/32530.dat
Part Attributes:
File Header:

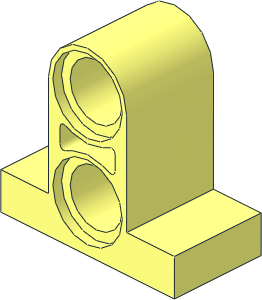

0 Technic Tile 1 x 2 with Two Holes
0 Name: 32530.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 // complete rewrite
1 16 0 -22 -10 -1 0 0 0 0 1 0 1 0 4-4ring8.dat
1 16 0 -22 10 1 0 0 0 0 1 0 -1 0 4-4ring8.dat
1 16 0 -22 0 1 0 0 0 0 1 0 1 0 connhole.dat
1 16 0 -22 10 9 0 0 0 0 -9 0 1 0 2-4edge.dat
1 16 0 -22 -10 9 0 0 0 0 -9 0 1 0 2-4edge.dat
1 16 0 -22 10 9 0 0 0 0 -9 0 -20 0 2-4cyli.dat
1 16 0 -12 10 1 0 0 0 0 1 0 -8 0 npeghol2.dat
1 16 0 -12 -10 1 0 0 0 0 1 0 8 0 npeghol2.dat
1 16 -9 -11 0 0 1 0 -11 0 0 0 0 10 rect2p.dat
1 16 9 -11 0 0 -1 0 -11 0 0 0 0 10 rect2p.dat
1 16 0 -2 -10 1 0 0 0 0 -1 0 1 0 2-4ring8.dat
1 16 0 -2 10 -1 0 0 0 0 -1 0 -1 0 2-4ring8.dat
1 16 0 -2 -10 -8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 0 -2 10 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 0 -2 0 1 0 0 0 0 1 0 -1 0 connhole.dat
4 16 8 -2 -10 8 6 -10 9 0 -10 9 -2 -10
4 16 -9 -2 -10 -9 0 -10 -8 6 -10 -8 -2 -10
4 16 9 -2 10 9 0 10 8 6 10 8 -2 10
4 16 -8 -2 10 -8 6 10 -9 0 10 -9 -2 10
4 16 20 0 -10 9 0 -10 8 6 -10 20 8 -10
4 16 8 6 -10 -8 6 -10 -20 8 -10 20 8 -10
4 16 20 8 10 -20 8 10 -8 6 10 8 6 10
2 24 20 8 -10 -20 8 -10
2 24 20 8 10 -20 8 10
4 16 -20 8 -10 -8 6 -10 -9 0 -10 -20 0 -10
4 16 20 8 10 8 6 10 9 0 10 20 0 10
4 16 -20 0 10 -9 0 10 -8 6 10 -20 8 10
1 16 -14.5 4 0 0 0 -5.5 0 -4 0 -10 0 0 box2-5.dat
1 16 14.5 4 0 0 0 5.5 0 -4 0 10 0 0 box2-5.dat
0 BFC INVERTNEXT
1 16 -10 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
0 BFC INVERTNEXT
1 16 10 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
4 16 -20 8 -10 -4 8 -6 4 8 -6 20 8 -10
4 16 20 8 10 4 8 6 -4 8 6 -20 8 10
4 16 -4 8 -6 -4 8 6 4 8 6 4 8 -6
4 16 -20 8 -10 -20 8 10 -16 8 6 -16 8 -6
4 16 20 8 10 20 8 -10 16 8 -6 16 8 6
3 16 4 8 -6 16 8 -6 20 8 -10
3 16 -4 8 6 -16 8 6 -20 8 10
3 16 20 8 10 16 8 6 4 8 6
3 16 -20 8 -10 -16 8 -6 -4 8 -6
0 //
0 //
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Michael Heidemann
Licensed under CC BY 4.0
