Official File parts/32552.dat
Part Attributes:
File Header:

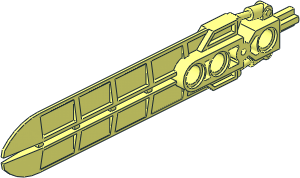

0 Constraction Blade 12L Double-Edged Sword with 3 Pinholes and Axle
0 Name: 32552.dat
0 Author: Robert Sexton [rhsexton]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bionicle, Technic, Weapon
0 !HISTORY 2014-07-16 [MagFors] Made BFC compliant
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2024-11-17 [MagFors] Update description
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32552s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\32552s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32552s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\32552s01.dat
1 16 0 0 -60 0 -1 0 1 0 0 0 0 1 beamhole.dat
1 16 0 0 -40 0 -1 0 1 0 0 0 0 1 connhole.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 connhole.dat
1 16 10 0 -30 0 -17 0 -1 0 0 0 0 -1 npeghol7.dat
1 16 -10 0 -30 0 1 0 1 0 0 0 0 -1 npeghol7.dat
1 16 -10 0 -10 0 8 0 -1 0 0 0 0 1 npeghol7.dat
1 16 10 0 -10 0 -8 0 1 0 0 0 0 1 npeghol7.dat
1 16 10 0 -60 0 -1 0 -1 0 0 0 0 -1 2-4ring9.dat
1 16 -10 0 -60 0 1 0 1 0 0 0 0 -1 2-4ring9.dat
1 16 10 0 -60 0 -20 0 10 0 0 0 0 -10 2-4cylo.dat
1 16 10 0 0 0 -1 0 0 0 -9 9 0 0 3-8ndis.dat
1 16 -10 0 0 0 1 0 0 0 -9 9 0 0 3-8ndis.dat
1 16 -10 0 0 0 1 0 0 0 9 9 0 0 3-8ndis.dat
1 16 10 0 0 0 -1 0 0 0 9 9 0 0 3-8ndis.dat
1 16 10 0 -40 0 -1 0 9 0 0 0 0 9 1-8ndis.dat
1 16 10 0 -40 0 -1 0 -9 0 0 0 0 9 1-8ndis.dat
1 16 -10 0 -40 0 1 0 -9 0 0 0 0 9 1-8ndis.dat
1 16 -10 0 -40 0 1 0 9 0 0 0 0 9 1-8ndis.dat
4 16 10 10 -60 10 10 -20 10 9 -31 10 9 -60
4 16 10 -9 -60 10 -9 -31 10 -10 -20 10 -10 -60
4 16 -10 -9 -60 -10 -10 -60 -10 -10 -20 -10 -9 -31
4 16 -10 10 -60 -10 9 -60 -10 9 -31 -10 10 -20
2 24 10 -10 -60 10 -10 -20
2 24 -10 -10 -60 -10 -10 -20
2 24 -10 -10 -20 -5 -10 -20
2 24 10 -10 -20 5 -10 -20
4 16 -10 -10 -60 10 -10 -60 5 -10 -50 -5 -10 -50
4 16 5 -10 -50 10 -10 -60 10 -10 -20 5 -10 -20
4 16 -5 -10 -20 -10 -10 -20 -10 -10 -60 -5 -10 -50
1 16 0 -8 -20 10 0 0 0 0 2 0 -1 0 rect3.dat
2 24 10 10 -60 10 10 -20
2 24 -10 10 -60 -10 10 -20
2 24 -10 10 -20 -5 10 -20
2 24 10 10 -20 5 10 -20
4 16 -5 10 -50 5 10 -50 10 10 -60 -10 10 -60
4 16 5 10 -20 10 10 -20 10 10 -60 5 10 -50
4 16 -5 10 -50 -10 10 -60 -10 10 -20 -5 10 -20
1 16 0 8 -20 -10 0 0 0 0 -2 0 -1 0 rect3.dat
0 BFC INVERTNEXT
1 16 10 0 -27 0 -17 0 0 0 -6.36 -3 0 0 box3u8p.dat
0 BFC INVERTNEXT
1 16 -10 0 -27 0 1 0 0 0 6.36 -3 0 0 box3u8p.dat
4 16 10 10 -10 10 10 10 10 9 9 10 9 -9
4 16 10 -9 -9 10 -9 9 10 -10 10 10 -10 -10
4 16 -10 -9 -9 -10 -10 -10 -10 -10 10 -10 -9 9
4 16 -10 10 -10 -10 9 -9 -10 9 9 -10 10 10
4 16 -10 9 9 -10 -9 9 -10 -10 10 -10 10 10
4 16 10 9 9 10 10 10 10 -10 10 10 -9 9
3 16 10 -9 -9 10 -6.3639 -10 10 -6.3639 -6.3639
3 16 10 -6.3639 -10 10 -9 -9 10 -10 -10
3 16 -10 -6.3639 -6.3639 -10 -6.3639 -10 -10 -9 -9
3 16 -10 -10 -10 -10 -9 -9 -10 -6.3639 -10
3 16 10 6.3639 -6.3639 10 6.3639 -10 10 9 -9
3 16 10 10 -10 10 9 -9 10 6.3639 -10
3 16 -10 9 -9 -10 6.3639 -10 -10 6.3639 -6.3639
3 16 -10 6.3639 -10 -10 9 -9 -10 10 -10
4 16 -10 -10 -20 -10 -6.36 -24 -10 -6.36 -33.639999 -10 -9 -31
4 16 -10 10 -20 -10 9 -31 -10 6.36 -33.639999 -10 6.36 -24
4 16 10 -10 -20 10 -9 -31 10 -6.36 -33.639999 10 -6.36 -24
4 16 10 10 -20 10 6.36 -24 10 6.36 -33.639999 10 9 -31
1 16 -7 0 10 0 0 -3 10 0 0 0 -1 0 rect3.dat
1 16 7 0 10 0 0 3 -10 0 0 0 -1 0 rect3.dat
4 16 4 10 10 -4 10 10 -4 -10 10 4 -10 10
1 16 0 0 10 1 0 0 0 0 1 0 -1 0 axlehol9.dat
1 16 0 0 10 1 0 0 0 0 1 0 -1 0 axlehol2.dat
1 16 0 0 30 1 0 0 0 0 1 0 -20 0 axlehol8.dat
1 16 0 0 30 1 0 0 0 0 1 0 -1 0 axlehol9.dat
1 16 0 0 30 1 0 0 0 0 1 0 -1 0 axlehol2.dat
1 16 0 0 30 1 0 0 0 0 1 0 -1 0 axleend.dat
2 24 -10 -10 -10 -10 -10 10
2 24 10 -10 10 10 -10 -10
4 16 -10 -10 -10 10 -10 -10 4 -10 2 -4 -10 2
4 16 4 -10 2 10 -10 -10 10 -10 10 4 -10 10
4 16 -4 -10 10 -10 -10 10 -10 -10 -10 -4 -10 2
2 24 -10 10 -10 -10 10 10
2 24 10 10 10 10 10 -10
4 16 -4 10 2 4 10 2 10 10 -10 -10 10 -10
4 16 4 10 10 10 10 10 10 10 -10 4 10 2
4 16 -4 10 2 -10 10 -10 -10 10 10 -4 10 10
1 16 -10 0 -20 0 20 0 -6 0 0 0 0 6 1-8cylo.dat
1 16 -10 0 -20 0 20 0 6 0 0 0 0 6 1-8cylo.dat
1 16 -2 0 -20 0 -8 0 2.296101 0 -5.543277 5.543277 0 2.296101 1-8cylo.dat
1 16 10 0 -20 0 -8 0 2.296101 0 -5.543277 5.543277 0 2.296101 1-8cylo.dat
1 16 -9 0 -20 0 -1 0 -4.24264 0 4.24264 -4.24264 0 -4.24264 1-4cylo.dat
1 16 10 0 -20 0 -17 0 -4.24264 0 4.24264 -4.24264 0 -4.24264 1-4cylo.dat
4 16 -10 -10 -20 -10 -5.5434 -22.2962 -10 -4.4047 -24 -10 -6.36 -24
4 16 10 -10 -20 10 -6.36 -24 10 -4.4047 -24 10 -5.5434 -22.2962
4 16 -10 10 -20 -10 6.36 -24 -10 4.4047 -24 -10 5.5434 -22.2962
4 16 10 10 -20 10 5.5434 -22.2962 10 4.4047 -24 10 6.36 -24
3 16 -10 -10 -20 -10 -6 -20 -10 -5.5434 -22.2962
3 16 10 -10 -20 10 -5.5434 -22.2962 10 -6 -20
3 16 -10 10 -20 -10 5.5434 -22.2962 -10 6 -20
3 16 10 10 -20 10 6 -20 10 5.5434 -22.2962
1 16 -6 -4.3281 -12.2283 4 0 0 0 -1 2.0319 0 0 -2.2283 rect.dat
1 16 6 -4.3281 -12.2283 4 0 0 0 -1 2.0319 0 0 -2.2283 rect.dat
1 16 -6 4.3281 -12.2283 0 0 4 -2.0319 1 0 -2.2283 0 0 rect.dat
1 16 6 4.3281 -12.2283 0 0 4 -2.0319 1 0 -2.2283 0 0 rect.dat
4 16 2 6.36 -10 2 -6.36 -10 2 -2.2962 -14.4566 2 2.2962 -14.4566
4 16 -2 6.36 -10 -2 2.2962 -14.4566 -2 -2.2962 -14.4566 -2 -6.36 -10
1 16 0 -7.1213 -12.8787 0 0 10 2.8787 1 0 -2.8787 0 0 rect.dat
1 16 0 7.1213 -12.8787 10 0 0 0 -1 -2.8787 0 0 -2.8787 rect.dat
4 16 -10 -10 -10 -10 -6.36 -10 -10 -2.2962 -14.4566 -10 -4.2426 -15.7574
4 16 10 -10 -10 10 -4.2426 -15.7574 10 -2.2962 -14.4566 10 -6.36 -10
4 16 -10 10 -10 -10 4.2426 -15.7574 -10 2.2962 -14.4566 -10 6.36 -10
4 16 10 10 -10 10 6.36 -10 10 2.2962 -14.4566 10 4.2426 -15.7574
0 BFC INVERTNEXT
1 16 -9.5 -5.3013 -24.1213 -0.5 0 0 0 -0.08105 0.97765 0 0.1213 0 box2-7.dat
2 24 -10 -6.36 -24 -9 -6.36 -24
5 24 -10 -4.2426 -24.242599 -9 -4.2426 -24.242599 -9 -4.4047 -24 -9 -2.296117 -25.543432
0 BFC INVERTNEXT
1 16 1.5 -5.3013 -24.1213 -8.5 0 0 0 -0.08105 0.97765 0 0.1213 0 box2-7.dat
2 24 -7 -6.36 -24 10 -6.36 -24
5 24 10 -4.2426 -24.242599 -7 -4.2426 -24.242599 -7 -4.4047 -24 -7 -2.296117 -25.543432
0 BFC INVERTNEXT
1 16 -9.5 5.3013 -24.1213 0.5 0 0 0 0.08105 -0.97765 0 0.1213 0 box2-7.dat
2 24 -10 6.36 -24 -9 6.36 -24
5 24 -10 4.2426 -24.242599 -9 4.2426 -24.242599 -9 4.4047 -24 -9 2.296117 -25.543432
0 BFC INVERTNEXT
1 16 1.5 5.3013 -24.1213 8.5 0 0 0 0.08105 -0.97765 0 0.1213 0 box2-7.dat
2 24 -7 6.36 -24 10 6.36 -24
5 24 10 4.2426 -24.242599 -7 4.2426 -24.242599 -7 4.4047 -24 -7 2.296117 -25.543432
0 BFC INVERTNEXT
1 16 -10 0 -20 0 20 0 0 0 2 2 0 0 4-4cylo.dat
1 16 -10 0 -20 0 1 0 0 0 2 2 0 0 4-4ring2.dat
1 16 10 0 -20 0 -1 0 0 0 2 -2 0 0 4-4ring2.dat
1 16 10 0 -20 0 -1 0 0 0 2 -2 0 0 4-4ring1.dat
1 16 -10 0 -20 0 1 0 0 0 2 2 0 0 4-4ring1.dat
1 16 0 2 -90 -2 0 0 0 -4 0 0 0 -2 box4.dat
1 16 0 2 -120 -2 0 0 0 -4 0 0 0 -2 box4.dat
1 16 0 2 -150 -2 0 0 0 -4 0 0 0 -2 box4.dat
1 16 0 2 -180 -2 0 0 0 -4 0 0 0 -2 box4.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-11-17 19:17:31
2024-11-17 19:18:13
2024-12-01 00:36:55
Release 2024-10
Creative Commons Attribution License information
This part is copyright © Robert Sexton
Licensed under CC BY 4.0
