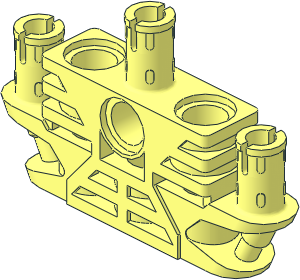

Constraction Torso 5 x 3 with 3 Pins and 6 Pegholes

File Header:

0 Constraction Torso  5 x  3 with  3 Pins and  6 Pegholes
0 Name: 32577.dat
0 Author: Taylor Bangs [DoomTay]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS bionicle, body, Matoran

0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2021-11-09 [Sirio] Converted subpart pins to primitive and subparted the body; changed description
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
