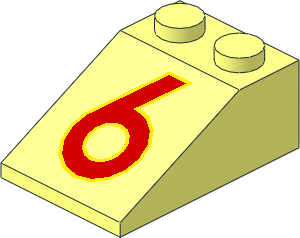

0 Slope Brick 33 3 x 2 with Red "6" Pattern
0 Name: 3298p76.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 3298pb014, Rebrickable 3298pr0020, Set 1188
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3298s01.dat
0 // Yellow outline
4 14 .5712 2.112 -14.224 0 1.6648 -13.3296 -11.0868 10.3439 -30.6878 -10.1629 10.515 -31.03
4 14 6.2839 2.112 -14.224 7.9977 1.6648 -13.3296 0 1.6648 -13.3296 .5712 2.112 -14.224
4 14 0 7.0312 -24.0624 1.026 7.1224 -24.2449 7.9977 1.6648 -13.3296 6.2839 2.112 -14.224
4 14 -.6445 7.5357 -25.0714 0 7.4784 -24.9568 1.026 7.1224 -24.2449 0 7.0312 -24.0624
4 14 4.2097 7.8528 -25.7055 4.5924 7.4396 -24.8792 1.026 7.1224 -24.2449 0 7.4784 -24.9568
1 14 0 12.3976 -34.7952 .9239 0 .3827 .1711 .8944 -.4132 -.3423 .4472 .8263 1-4ring11.dat
1 14 0 12.3976 -34.7952 -.3827 0 .9239 .4132 .8944 .1711 -.8263 .4472 -.3423 1-4ring11.dat
1 14 0 12.3976 -34.7952 -.9239 0 -.3827 -.1711 .8944 .4132 .3423 .4472 -.8263 1-4ring11.dat
1 14 0 12.3976 -34.7952 0 0 1 .4472 .8944 0 -.8944 .4472 0 4-4ring5.dat
0 // Red filling
4 4 -4.2097 7.8528 -25.7055 -.6445 7.5357 -25.0714 6.2839 2.112 -14.224 .5712 2.112 -14.224
3 4 -7.7781 8.9192 -27.8385 -4.2097 7.8528 -25.7055 .5712 2.112 -14.224
3 4 -10.1629 10.515 -31.03 -7.7781 8.9192 -27.8385 .5712 2.112 -14.224
1 4 0 12.3976 -34.7952 0 0 3 1.3416 .8944 0 -2.6832 .4472 0 4-4ring2.dat
1 4 0 12.3976 -34.7952 0 0 1 .4472 .8944 0 -.8944 .4472 0 4-4ring9.dat
1 4 0 12.3976 -34.7952 0 0 1 .4472 .8944 0 -.8944 .4472 0 4-4ring10.dat
0 // Background
1 16 0 12.3976 -34.7952 0 0 5 2.236 .8944 0 -4.472 .4472 0 4-4disc.dat
1 16 0 12.3976 -34.7952 -11.0866 0 -4.5922 -2.0536 .8944 4.9579 4.1073 .4472 -9.9159 3-4ndis.dat
4 16 7.9977 1.6648 -13.3296 20 .0008 -10.0015 -20 .0008 -10.0015 0 1.6648 -13.3296
4 16 4.5922 7.4397 -24.8793 15.6788 9.4933 -28.9866 20 .0008 -10.0015 7.9977 1.6648 -13.3296
3 16 1.026 7.1224 -24.2449 4.5922 7.4397 -24.8793 7.9977 1.6648 -13.3296
3 16 20 20 -50 20 .0008 -10.0015 15.6788 9.4933 -28.9866
3 16 6.4944 19.4092 -48.8183 20 20 -50 15.6788 9.4933 -28.9866
3 16 -20 20 -50 20 20 -50 6.4944 19.4092 -48.8183
3 16 -15.6788 15.3019 -40.6038 -20 20 -50 6.4944 19.4092 -48.8183
3 16 -20 .0008 -10.0015 -20 20 -50 -15.6788 15.3019 -40.6038
3 16 -11.0866 10.344 -30.6879 -20 .0008 -10.0015 -15.6788 15.3019 -40.6038
3 16 0 1.6648 -13.3296 -20 .0008 -10.0015 -11.0866 10.344 -30.6879
