Official File parts/33011a.dat
Part Attributes:
File Header:

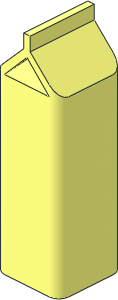

0 Scala Milk Pack
0 Name: 33011a.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Figure Accessory
0 !KEYWORDS Bottle, Tetra Pak, tetrapak
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
1 16 7 0 7 3 0 0 0 1 0 0 0 3 1-4edge.dat
1 16 7 0 7 3 0 0 0 -51 0 0 0 3 1-4cyli.dat
1 16 7 -51 7 3 0 0 0 -3 0 0 0 3 1-4cyls.dat
1 16 7 -54 7 3 0 0 3 -1 0 0 0 3 1-4edge.dat
1 16 7 -54 7 3 0 0 3 1 0 0 0 3 1-4chrd.dat
1 16 7 0 -7 3 0 0 0 1 0 0 0 -3 1-4edge.dat
1 16 7 0 -7 3 0 0 0 -51 0 0 0 -3 1-4cyli.dat
1 16 7 -51 -7 3 0 0 0 -3 0 0 0 -3 1-4cyls.dat
1 16 7 -54 -7 3 0 0 3 -1 0 0 0 -3 1-4edge.dat
1 16 7 -54 -7 3 0 0 3 1 0 0 0 -3 1-4chrd.dat
1 16 10 -25.5 0 0 -1 0 0 0 -25.5 7 0 0 rect2p.dat
4 16 10 -51 -7 10 -51 7 7 -54 10 7 -54 -10
1 16 4 -57 0 0 -1 -3 0 0 -3 10 0 0 rect3.dat
1 16 1 -62 0 0 -1 0 0 0 -2 10 0 0 rect3.dat
1 16 -7 0 7 -3 0 0 0 1 0 0 0 3 1-4edge.dat
1 16 -7 0 7 -3 0 0 0 -51 0 0 0 3 1-4cyli.dat
1 16 -7 -51 7 -3 0 0 0 -3 0 0 0 3 1-4cyls.dat
1 16 -7 -54 7 -3 0 0 3 -1 0 0 0 3 1-4edge.dat
1 16 -7 -54 7 -3 0 0 3 1 0 0 0 3 1-4chrd.dat
1 16 -7 0 -7 -3 0 0 0 1 0 0 0 -3 1-4edge.dat
1 16 -7 0 -7 -3 0 0 0 -51 0 0 0 -3 1-4cyli.dat
1 16 -7 -51 -7 -3 0 0 0 -3 0 0 0 -3 1-4cyls.dat
1 16 -7 -54 -7 -3 0 0 3 -1 0 0 0 -3 1-4edge.dat
1 16 -7 -54 -7 -3 0 0 3 1 0 0 0 -3 1-4chrd.dat
1 16 -10 -25.5 0 0 1 0 0 0 -25.5 -7 0 0 rect2p.dat
4 16 -7 -54 10 -10 -51 7 -10 -51 -7 -7 -54 -10
1 16 -4 -57 0 0 1 3 0 0 -3 -10 0 0 rect3.dat
1 16 -1 -62 0 0 1 0 0 0 -2 -10 0 0 rect3.dat
1 16 0 -62 10 0 0 1 -2 0 0 0 -1 0 rect1.dat
1 16 0 -62 -10 0 0 -1 -2 0 0 0 1 0 rect1.dat
4 16 1 -64 10 -1 -64 10 -1 -64 -10 1 -64 -10
2 24 0 -58.1716 10 7 -51 10
2 24 0 -58.1716 10 -7 -51 10
4 16 7 -54 10 7 -51 10 0 -58.1716 10 1 -60 10
4 16 -7 -54 10 -1 -60 10 0 -58.1716 10 -7 -51 10
3 16 0 -58.1716 10 -1 -60 10 1 -60 10
1 16 0 -25.5 10 7 0 0 0 0 25.5 0 -1 0 rect2p.dat
2 24 0 -58.1716 7 7 -51 10
2 24 0 -58.1716 7 -7 -51 10
2 24 0 -58.1716 7 0 -58.1716 10
3 16 0 -58.1716 10 0 -58.1716 7 -7 -51 10
3 16 0 -58.1716 7 0 -58.1716 10 7 -51 10
3 16 7 -51 10 -7 -51 10 0 -58.1716 7
2 24 0 -58.1716 -10 7 -51 -10
2 24 0 -58.1716 -10 -7 -51 -10
4 16 0 -58.1716 -10 7 -51 -10 7 -54 -10 1 -60 -10
4 16 0 -58.1716 -10 -1 -60 -10 -7 -54 -10 -7 -51 -10
3 16 -1 -60 -10 0 -58.1716 -10 1 -60 -10
1 16 0 -25.5 -10 -7 0 0 0 0 25.5 0 1 0 rect2p.dat
2 24 0 -58.1716 -7 7 -51 -10
2 24 0 -58.1716 -7 -7 -51 -10
2 24 0 -58.1716 -7 0 -58.1716 -10
3 16 0 -58.1716 -7 0 -58.1716 -10 -7 -51 -10
3 16 0 -58.1716 -10 0 -58.1716 -7 7 -51 -10
3 16 -7 -51 -10 7 -51 -10 0 -58.1716 -7
2 24 6 0 -7 -6 0 -7
2 24 -7 0 -6 -7 0 6
2 24 -7 0 -6 -6 0 -7
2 24 -7 -50 -6 -7 -50 6
2 24 0 -56 -5 -6 -50.8571 -7
2 24 -7 -50 -6 -6 -50.8571 -7
2 24 6 0 7 -6 0 7
2 24 -7 0 6 -6 0 7
2 24 0 -56 5 -6 -50.8571 7
2 24 -7 -50 6 -6 -50.8571 7
2 24 7 0 -6 7 0 6
2 24 7 0 -6 6 0 -7
2 24 7 -50 -6 7 -50 6
2 24 0 -56 -5 6 -50.8571 -7
2 24 7 -50 -6 6 -50.8571 -7
2 24 7 0 6 6 0 7
2 24 0 -56 5 6 -50.8571 7
2 24 7 -50 6 6 -50.8571 7
3 16 -6 -50.8571 -7 0 -56 -5 6 -50.8571 -7
4 16 -6 0 -7 -6 -50.8571 -7 6 -50.8571 -7 6 0 -7
4 16 -6 0 -7 -7 0 -6 -7 -50 -6 -6 -50.8571 -7
4 16 -7 -50 -6 -7 0 -6 -7 0 6 -7 -50 6
4 16 -6 -50.8571 -7 -7 -50 -6 -7 -50 6 -6 -50.8571 7
4 16 0 -56 -5 -6 -50.8571 -7 -6 -50.8571 7 0 -56 5
4 16 -6 -50.8571 7 -7 -50 6 -7 0 6 -6 0 7
3 16 6 -50.8571 7 0 -56 5 -6 -50.8571 7
4 16 6 0 7 6 -50.8571 7 -6 -50.8571 7 -6 0 7
4 16 6 0 7 7 0 6 7 -50 6 6 -50.8571 7
4 16 7 -50 6 7 0 6 7 0 -6 7 -50 -6
4 16 6 -50.8571 7 7 -50 6 7 -50 -6 6 -50.8571 -7
4 16 0 -56 5 6 -50.8571 7 6 -50.8571 -7 0 -56 -5
4 16 6 -50.8571 -7 7 -50 -6 7 0 -6 6 0 -7
5 24 6 -50.8571 -7 6 0 -7 -6 0 -7 7 -50 -6
5 24 -6 0 7 -6 -50.8571 7 -7 -50 6 6 0 7
5 24 7 0 -6 7 -50 -6 7 -50 6 6 0 -7
5 24 -7 0 6 -7 -50 6 -7 -50 -6 -6 0 7
5 24 6 0 7 6 -50.8571 7 -6 -50.8571 7 7 0 6
5 24 -6 -50.8571 7 6 -50.8571 7 -6 0 7 0 -56 5
5 24 7 0 6 7 -50 6 6 -50.8571 7 7 0 -6
5 24 6 -50.8571 -7 -6 -50.8571 -7 6 0 -7 0 -56 -5
5 24 -7 0 -6 -7 -50 -6 -6 -50.8571 -7 -7 0 6
2 24 0 -56 5 0 -56 -5
5 24 -6 0 -7 -6 -50.8571 -7 6 -50.8571 -7 -7 0 -6
1 16 -7 0 -7 -3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
4 16 -7 0 -10 -10 0 -7 -7 0 -6 -6 0 -7
4 16 -7 0 -10 -6 0 -7 6 0 -7 7 0 -10
1 16 -7 0 7 0 0 -3 0 -1 0 3 0 0 1-4chrd.dat
4 16 -10 0 7 -7 0 10 -6 0 7 -7 0 6
4 16 -10 0 7 -7 0 6 -7 0 -6 -10 0 -7
1 16 7 0 7 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
4 16 7 0 10 10 0 7 7 0 6 6 0 7
4 16 7 0 10 6 0 7 -6 0 7 -7 0 10
1 16 7 0 -7 0 0 3 0 -1 0 -3 0 0 1-4chrd.dat
4 16 10 0 -7 7 0 -10 6 0 -7 7 0 -6
4 16 10 0 -7 7 0 -6 7 0 6 10 0 7
1 16 0 -27 7 1 0 0 0 0 26.5 0 -1 0 box4-4a.dat
2 24 -1 -53.4286 6 1 -53.4286 6
2 24 -1 -53.4286 6 -1 -50.8571 7
2 24 1 -53.4286 6 1 -50.8571 7
1 16 7 -26 0 0 -1 0 0 0 25.5 -1 0 0 box4-4a.dat
2 24 7 -50 1 6 -50.8571 1
2 24 7 -50 -1 6 -50.8571 -1
2 24 6 -50.8571 -1 6 -50.8571 1
1 16 0 -27 -7 -1 0 0 0 0 26.5 0 1 0 box4-4a.dat
2 24 1 -53.4286 -6 -1 -53.4286 -6
2 24 1 -53.4286 -6 1 -50.8571 -7
2 24 -1 -53.4286 -6 -1 -50.8571 -7
1 16 -7 -26 0 0 1 0 0 0 25.5 1 0 0 box4-4a.dat
2 24 -7 -50 -1 -6 -50.8571 -1
2 24 -7 -50 1 -6 -50.8571 1
2 24 -6 -50.8571 1 -6 -50.8571 -1
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
