File Detail parts/3443a.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3443a.dat

Part Attributes:

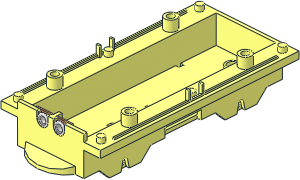

~Train Base for Train Battery Box Car with Two Contact Holes

File Header:

0 ~Train Base for Train Battery Box Car with Two Contact Holes
0 Name: 3443a.dat
0 Author: Alex Taylor [anathema]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2021-04-26 [Holly-Wood] Eliminated overlap and t-junk where possible, fixed edges and rounding errors, used more primitives, remodeled contact area, subfiled
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03

Show contents

0 // Axle holder
1 16 36 36 70 1 0 0 0 1 0 0 0 1 s\3443as01.dat
1 16 36 36 -70 1 0 0 0 1 0 0 0 1 s\3443as01.dat
1 16 -36 36 70 -1 0 0 0 1 0 0 0 1 s\3443as01.dat
1 16 -36 36 -70 -1 0 0 0 1 0 0 0 1 s\3443as01.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3443as02.dat

0 // Contact area with two holes
2 24 -3.2 -8 -120 3.2 -8 -120
2 24 4.9 -8 -116 4.9 -8 -118
2 24 3.2 -8 -118 4.9 -8 -118
2 24 3.2 -8 -118 3.2 -1 -118
2 24 3.2 -8 -118 3.2 -8 -120
2 24 3.2 -8 -120 3.2 -1 -120
2 24 2 -8 -116 4.9 -8 -116
2 24 -3.2 -8 -118 -3.2 -1 -118
2 24 -3.2 -8 -120 -3.2 -1 -120
2 24 -4.9 -8 -116 -4.9 -8 -118
2 24 -4.9 -8 -118 -3.2 -8 -118
2 24 -3.2 -8 -118 -3.2 -8 -120
2 24 -4.9 -8 -116 -2 -8 -116

3 16 4.9 4.1 -116 2 32 -116 2 -8 -116
3 16 4.9 4.1 -116 2 -8 -116 4.9 -1 -116
3 16 4.9 -1 -116 2 -8 -116 4.9 -8 -116
3 16 -2 -8 -116 -4.9 4.1 -116 -4.9 -1 -116
3 16 -2 -8 -116 -4.9 -1 -116 -4.9 -8 -116
3 16 -2 -8 -116 -2 32 -116 -4.9 4.1 -116
4 16 -3.2 5.8 -120 3.2 5.8 -120 3.2 -1 -120 -3.2 -1 -120
4 16 -3.2 -1 -120 3.2 -1 -120 3.2 -8 -120 -3.2 -8 -120

0 BFC INVERTNEXT
1 16 10 -1 -120 6.8 0 0 0 0 6.8 0 2 0 2-4cylo.dat
1 16 10 -1 -118 1.7 0 0 0 0 1.7 0 1 0 2-4ring3.dat
1 16 10 -1 -120 6.8 0 0 0 0 6.8 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 -1 -120 6.8 0 0 0 0 6.8 0 2 0 2-4cylo.dat
1 16 -10 -1 -118 1.7 0 0 0 0 1.7 0 1 0 2-4ring3.dat
1 16 -10 -1 -120 6.8 0 0 0 0 6.8 0 1 0 2-4ndis.dat

4 16 3.2 -8 -120 3.2 -1 -120 3.2 -1 -118 3.2 -8 -118
4 16 3.2 -1 -118 4.9 -1 -118 4.9 -8 -118 3.2 -8 -118
4 16 -4.9 -8 -118 -4.9 -1 -118 -3.2 -1 -118 -3.2 -8 -118
4 16 -3.2 -8 -120 -3.2 -8 -118 -3.2 -1 -118 -3.2 -1 -120
4 16 -4.9 -8 -118 -3.2 -8 -118 -2 -8 -116 -4.9 -8 -116
4 16 4.9 -8 -118 4.9 -8 -116 2 -8 -116 3.2 -8 -118
4 16 -3.2 -8 -120 3.2 -8 -120 3.2 -8 -118 -3.2 -8 -118
4 16 -2 -8 -116 -3.2 -8 -118 3.2 -8 -118 2 -8 -116

0 // Contact plate
0 BFC INVERTNEXT
1 495 10 -1 -114 5.1 0 0 0 0 -5.1 0 -2 0 4-4cylo.dat
1 495 10 -1 -114 5.1 0 0 0 0 -5.1 0 -1 0 4-4ndis.dat
1 495 10 -1 -116 5.1 0 0 0 0 -5.1 0 1 0 4-4ndis.dat

4 495 22 -8 -116 2 -8 -116 4.9 -6.1 -116 10 -6.1 -116
3 495 22 -8 -116 10 -6.1 -116 15.1 -6.1 -116
3 495 22 -8 -116 15.1 -6.1 -116 15.1 -1 -116
3 495 9 32 -116 22 32 -116 9 16 -116
4 495 15.1 -1 -116 15.1 4.1 -116 22 32 -116 22 -8 -116
4 495 9 16 -116 22 32 -116 15.1 4.1 -116 10 4.1 -116
4 495 10 4.1 -116 4.9 4.1 -116 2 16 -116 9 16 -116
3 495 4.9 -6.1 -116 2 -8 -116 4.9 -1 -116
4 495 2 16 -116 4.9 4.1 -116 4.9 -1 -116 2 -8 -116

3 495 4.9 -6.1 -114 2 -8 -114 10 -6.1 -114
4 495 2 -8 -114 22 -8 -114 15.1 -6.1 -114 10 -6.1 -114
3 495 15.1 -6.1 -114 22 -8 -114 15.1 -1 -114
4 495 15.1 -1 -114 22 -8 -114 22 32 -114 15.1 4.1 -114
4 495 15.1 4.1 -114 22 32 -114 9 32 -114 9 16 -114
3 495 15.1 4.1 -114 9 16 -114 10 4.1 -114
4 495 10 4.1 -114 9 16 -114 2 16 -114 4.9 4.1 -114
3 495 2 -8 -114 4.9 -6.1 -114 4.9 -1 -114
4 495 2 16 -114 2 -8 -114 4.9 -1 -114 4.9 4.1 -114

1 495 12 -8 -115 10 0 0 0 1 0 0 0 1 rect.dat
1 495 22 12 -115 0 -1 0 0 0 20 -1 0 0 rect3.dat
1 495 5.5 16 -115 0 0 3.5 0 -1 0 1 0 0 rect.dat
1 495 9 24 -115 0 1 0 0 0 8 1 0 0 rect3.dat
1 495 15.5 32 -115 -6.5 0 0 0 -1 0 0 0 1 rect2p.dat
1 495 2 4 -115 0 1 0 -12 0 0 0 0 1 rect2p.dat

0 BFC INVERTNEXT
1 495 -10 -1 -114 -5.1 0 0 0 0 -5.1 0 -2 0 4-4cylo.dat
1 495 -10 -1 -114 -5.1 0 0 0 0 -5.1 0 -1 0 4-4ndis.dat
1 495 -10 -1 -116 -5.1 0 0 0 0 -5.1 0 1 0 4-4ndis.dat

4 495 -4.9 -6.1 -116 -2 -8 -116 -22 -8 -116 -10 -6.1 -116
3 495 -10 -6.1 -116 -22 -8 -116 -15.1 -6.1 -116
3 495 -15.1 -6.1 -116 -22 -8 -116 -15.1 -1 -116
3 495 -22 32 -116 -9 32 -116 -9 16 -116
4 495 -22 32 -116 -15.1 4.1 -116 -15.1 -1 -116 -22 -8 -116
4 495 -15.1 4.1 -116 -22 32 -116 -9 16 -116 -10 4.1 -116
4 495 -2 16 -116 -4.9 4.1 -116 -10 4.1 -116 -9 16 -116
3 495 -2 -8 -116 -4.9 -6.1 -116 -4.9 -1 -116
4 495 -2 16 -116 -2 -8 -116 -4.9 -1 -116 -4.9 4.1 -116

3 495 -2 -8 -114 -4.9 -6.1 -114 -10 -6.1 -114
4 495 -15.1 -6.1 -114 -22 -8 -114 -2 -8 -114 -10 -6.1 -114
3 495 -22 -8 -114 -15.1 -6.1 -114 -15.1 -1 -114
4 495 -22 32 -114 -22 -8 -114 -15.1 -1 -114 -15.1 4.1 -114
4 495 -9 32 -114 -22 32 -114 -15.1 4.1 -114 -9 16 -114
3 495 -9 16 -114 -15.1 4.1 -114 -10 4.1 -114
4 495 -2 16 -114 -9 16 -114 -10 4.1 -114 -4.9 4.1 -114
3 495 -4.9 -6.1 -114 -2 -8 -114 -4.9 -1 -114
4 495 -2 16 -114 -4.9 4.1 -114 -4.9 -1 -114 -2 -8 -114

1 495 -12 -8 -115 -10 0 0 0 1 0 0 0 1 rect.dat
1 495 -22 12 -115 0 1 0 0 0 20 -1 0 0 rect3.dat
1 495 -5.5 16 -115 0 0 -3.5 0 -1 0 1 0 0 rect.dat
1 495 -9 24 -115 0 -1 0 0 0 8 1 0 0 rect3.dat
1 495 -15.5 32 -115 6.5 0 0 0 -1 0 0 0 1 rect2p.dat
1 495 -2 4 -115 0 -1 0 12 0 0 0 0 1 rect2p.dat

0 // Contacts
1 494 10 -1 -116 1 0 0 0 1 0 0 0 1 s\3443as03.dat
1 494 -10 -1 -116 1 0 0 0 1 0 0 0 1 s\3443as03.dat

Status:

Official
