Official File parts/3443b.dat
Part Attributes:
File Header:

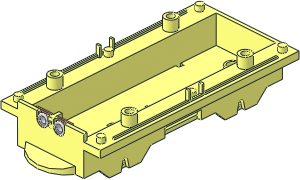

0 ~Train Base for Train Battery Box Car with Three Contact Holes
0 Name: 3443b.dat
0 Author: Alex Taylor [anathema]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2021-04-26 [Holly-Wood] Eliminated overlap and t-junk where possible, fixed edges and rounding errors, used more primitives, remodeled contact area, subfiled
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
0 // Axle holder
1 16 36 36 70 1 0 0 0 1 0 0 0 1 s\3443bs01.dat
1 16 36 36 -70 1 0 0 0 1 0 0 0 1 s\3443bs01.dat
1 16 -36 36 70 -1 0 0 0 1 0 0 0 1 s\3443bs01.dat
1 16 -36 36 -70 -1 0 0 0 1 0 0 0 1 s\3443bs01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3443as02.dat
1 16 -50 4 0 0 0 1 0 -1 0 -1 0 0 stug3-1x11.dat
1 16 50 4 0 0 0 1 0 -1 0 -1 0 0 stug3-1x11.dat
0 // Contact area with three holes
1 16 0 -1 -116 3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat
4 16 2 -4.5 -116 2 -8 -116 4.9 -8 -116 3.5 -4.5 -116
4 16 -4.9 -8 -116 -2 -8 -116 -2 -4.5 -116 -3.5 -4.5 -116
4 16 -3.5 -1 -116 -4.9 -1 -116 -4.9 -8 -116 -3.5 -4.5 -116
4 16 -3.5 -1 -116 -3.5 2.5 -116 -4.9 4.1 -116 -4.9 -1 -116
4 16 3.5 -1 -116 3.5 -4.5 -116 4.9 -8 -116 4.9 -1 -116
4 16 4.9 -1 -116 4.9 4.1 -116 3.5 2.5 -116 3.5 -1 -116
4 16 2 2.5 -116 3.5 2.5 -116 4.9 4.1 -116 2 4.1 -116
4 16 -4.9 4.1 -116 -3.5 2.5 -116 -2 2.5 -116 -2 4.1 -116
3 16 4.9 4.1 -116 2 32 -116 2 4.1 -116
3 16 -2 4.1 -116 -2 32 -116 -4.9 4.1 -116
2 24 3.234 -8 -118 3.234 -2.339 -118
2 24 3.234 -8 -120 3.234 -2.339 -120
2 24 -3.234 -8 -118 -3.234 -2.339 -118
2 24 -3.234 -8 -120 -3.234 -2.339 -120
4 16 -3.234 -8 -120 3.234 -8 -120 3.234 -8 -118 -3.234 -8 -118
2 24 -3.234 -8 -120 3.234 -8 -120
2 24 4.9 -8 -116 4.9 -8 -118
2 24 3.234 -8 -118 4.9 -8 -118
2 24 3.234 -8 -118 3.234 -8 -120
2 24 2 -8 -116 4.9 -8 -116
2 24 -4.9 -8 -116 -4.9 -8 -118
2 24 -4.9 -8 -118 -3.234 -8 -118
2 24 -3.234 -8 -118 -3.234 -8 -120
2 24 -4.9 -8 -116 -2 -8 -116
4 16 -4.9 -8 -118 -3.234 -8 -118 -2 -8 -116 -4.9 -8 -116
4 16 4.9 -8 -118 4.9 -8 -116 2 -8 -116 3.234 -8 -118
4 16 -2 -8 -116 -3.234 -8 -118 3.234 -8 -118 2 -8 -116
1 16 10 -1 -118 1.7 0 0 0 0 1.7 0 1 0 7-16ring3.dat
1 16 10 -1 -120 6.8 0 0 0 0 6.8 0 1 0 7-16ndis.dat
4 16 3.234 -8 -120 3.234 -2.339 -120 3.234 -2.339 -118 3.234 -8 -118
4 16 3.234 -2.339 -118 4.9 -1 -118 4.9 -8 -118 3.234 -8 -118
1 16 -10 -1 -118 1.5706 0 -.65056 .65056 0 1.5706 0 1 0 7-16ring3.dat
1 16 -10 -1 -120 -6.8 0 0 0 0 6.8 0 1 0 7-16ndis.dat
4 16 -4.9 -8 -118 -4.9 -1 -118 -3.234 -2.339 -118 -3.234 -8 -118
4 16 -3.234 -8 -120 -3.234 -8 -118 -3.234 -2.339 -118 -3.234 -2.339 -120
1 16 0 -1 -116 3.5 0 0 0 0 3.5 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -1 -118 3.5 0 0 0 0 3.5 0 2 0 4-4cyli.dat
1 16 0 -1 -120 -3.23358 0 1.33939 -1.33939 0 -3.23358 0 1 0 3-8edge.dat
0 BFC INVERTNEXT
1 16 0 -1 -120 -3.23358 0 1.33939 -1.33939 0 -3.23358 0 2 0 3-8cyli.dat
1 16 0 -1 -120 -3.23358 0 1.33939 -1.33939 0 -3.23358 0 1 0 1-8tang.dat
1 16 0 -1 -120 -1.33939 0 3.23358 -3.23358 0 -1.33939 0 1 0 1-4tang.dat
3 16 -3.234 -8 -120 -3.234 -2.339 -120 -2.967 -2.983 -120
3 16 -3.234 -8 -120 -2.967 -2.983 -120 -2.475 -3.475 -120
3 16 -3.234 -8 -120 -2.475 -3.475 -120 -1.983 -3.967 -120
3 16 -3.234 -8 -120 -1.983 -3.967 -120 -1.339 -4.234 -120
3 16 -3.234 -8 -120 -1.339 -4.234 -120 -.696 -4.5 -120
3 16 -3.234 -8 -120 -.696 -4.5 -120 0 -4.5 -120
3 16 -3.234 -8 -120 0 -4.5 -120 3.234 -8 -120
3 16 3.234 -8 -120 0 -4.5 -120 .696 -4.5 -120
3 16 3.234 -8 -120 .696 -4.5 -120 1.339 -4.234 -120
3 16 3.234 -8 -120 1.339 -4.234 -120 1.983 -3.967 -120
3 16 3.234 -8 -120 1.983 -3.967 -120 2.475 -3.475 -120
3 16 3.234 -8 -120 2.475 -3.475 -120 2.967 -2.983 -120
3 16 3.234 -8 -120 2.967 -2.983 -120 3.234 -2.339 -120
2 24 3.35 -.246 -118 3.35 -.246 -120
2 24 -3.35 -.246 -118 -3.35 -.246 -120
4 16 3.35 -.246 -120 3.35 -.246 -118 3.234 .339 -118 3.234 .339 -120
4 16 -3.234 .339 -118 -3.35 -.246 -118 -3.35 -.246 -120 -3.234 .339 -120
4 16 3.717 1.602 -120 3.717 1.602 -118 3.35 -.246 -118 3.35 -.246 -120
4 16 -3.35 -.246 -120 -3.35 -.246 -118 -3.718 1.602 -118 -3.718 1.602 -120
3 16 3.234 -2.339 -118 3.5 -1 -118 4.9 -1 -118
3 16 4.9 -1 -118 3.5 -1 -118 3.35 -.246 -118
4 16 4.9 -1 -118 3.35 -.246 -118 3.717 1.602 -118 5.288 .952 -118
3 16 -3.5 -1 -118 -3.234 -2.339 -118 -4.9 -1 -118
3 16 -3.35 -.246 -118 -3.5 -1 -118 -4.9 -1 -118
4 16 -4.9 -1 -118 -5.288 .952 -118 -3.718 1.602 -118 -3.35 -.246 -118
1 16 0 -1 -120 3.23358 0 -1.33939 1.33939 0 3.23358 0 1 0 3-8edge.dat
2 24 3.234 -2.339 -120 3.234 -2.339 -118
2 24 3.234 -2.339 -118 3.5 -1 -118
2 24 3.5 -1 -118 3.35 -.246 -118
2 24 3.35 -.246 -120 3.234 .339 -120
2 24 3.35 -.246 -120 3.717 1.602 -120
2 24 3.35 -.246 -118 3.717 1.602 -118
2 24 -3.234 -2.339 -120 -3.234 -2.339 -118
2 24 -3.234 -2.339 -118 -3.5 -1 -118
2 24 -3.5 -1 -118 -3.35 -.246 -118
2 24 -3.35 -.246 -120 -3.234 .339 -120
2 24 -3.35 -.246 -120 -3.718 1.602 -120
2 24 -3.35 -.246 -118 -3.718 1.602 -118
5 24 3.234 .339 -120 3.234 .339 -118 3.35 -.246 -120 2.475 1.475 -120
5 24 -3.234 .339 -120 -3.234 .339 -118 -3.35 -.246 -120 -2.475 1.475 -120
0 BFC INVERTNEXT
1 16 0 -1 -120 3.23358 0 -1.33939 1.33939 0 3.23358 0 2 0 3-8cyli.dat
1 16 0 -1 -120 -1.33939 0 -3.23358 3.23358 0 -1.33939 0 1 0 1-8tang.dat
1 16 0 -1 -120 3.23358 0 -1.33939 1.33939 0 3.23358 0 1 0 1-4tang.dat
0 BFC INVERTNEXT
1 16 10 -1 -120 6.8 0 0 0 0 6.8 0 2 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -10 -1 -120 6.28238 0 -2.60225 2.60225 0 6.28238 0 2 0 7-16cylo.dat
3 16 3.35 -.246 -120 3.234 .339 -120 3.717 1.602 -120
3 16 3.717 1.602 -120 3.234 .339 -120 2.967 .983 -120
3 16 3.717 1.602 -120 2.967 .983 -120 2.475 1.475 -120
3 16 3.717 1.602 -120 2.475 1.475 -120 1.983 1.967 -120
3 16 3.717 1.602 -120 1.983 1.967 -120 3.2 5.8 -120
3 16 3.2 5.8 -120 1.983 1.967 -120 1.339 2.234 -120
3 16 3.2 5.8 -120 1.339 2.234 -120 .696 2.5 -120
3 16 3.2 5.8 -120 .696 2.5 -120 0 2.5 -120
3 16 3.2 5.8 -120 0 2.5 -120 -3.2 5.8 -120
3 16 -3.2 5.8 -120 0 2.5 -120 -.696 2.5 -120
3 16 -3.2 5.8 -120 -.696 2.5 -120 -1.339 2.234 -120
3 16 -3.2 5.8 -120 -1.339 2.234 -120 -1.983 1.967 -120
3 16 -3.2 5.8 -120 -1.983 1.967 -120 -3.718 1.602 -120
3 16 -3.718 1.602 -120 -1.983 1.967 -120 -2.475 1.475 -120
3 16 -3.718 1.602 -120 -2.475 1.475 -120 -2.967 .983 -120
3 16 -3.718 1.602 -120 -2.967 .983 -120 -3.234 .339 -120
3 16 -3.718 1.602 -120 -3.234 .339 -120 -3.35 -.246 -120
4 16 -2 -4.5 -116 -2 2.5 -116 2 2.5 -116 2 -4.5 -116
0 // Contact plate
2 24 2.475 -3.475 -116 3.234 -2.339 -116
2 24 3.234 -2.339 -114 2.475 -3.475 -114
2 24 2.475 -3.475 -116 2 -3.792 -116
2 24 2 -3.792 -114 2.475 -3.475 -114
2 24 3.5 -1 -116 3.234 .339 -116
2 24 3.5 -1 -114 3.234 .339 -114
2 24 3.234 -2.339 -116 3.5 -1 -116
2 24 3.5 -1 -114 3.234 -2.339 -114
2 24 2 1.792 -116 2.475 1.475 -116
2 24 2.475 1.475 -114 2 1.792 -114
2 24 3.234 .339 -116 2.475 1.475 -116
2 24 3.234 .339 -114 2.475 1.475 -114
5 24 3.234 -2.339 -116 3.234 -2.339 -114 3.5 -1 -114 2.475 -3.475 -116
5 24 2.475 -3.475 -116 2.475 -3.475 -114 3.234 -2.339 -114 2 -3.792 -116
5 24 2.475 1.475 -116 2.475 1.475 -114 2 1.792 -114 3.234 .339 -116
5 24 3.234 .339 -114 3.234 .339 -116 2.475 1.475 -114 3.5 -1 -116
5 24 3.5 -1 -116 3.5 -1 -114 3.234 -2.339 -116 3.234 .339 -114
0 BFC INVERTNEXT
1 495 10 -1 -114 5.1 0 0 0 0 -5.1 0 -2 0 4-4cylo.dat
1 495 10 -1 -114 5.1 0 0 0 0 -5.1 0 -1 0 4-4ndis.dat
1 495 10 -1 -116 5.1 0 0 0 0 -5.1 0 1 0 4-4ndis.dat
4 495 22 -8 -116 2 -8 -116 4.9 -6.1 -116 10 -6.1 -116
3 495 22 -8 -116 10 -6.1 -116 15.1 -6.1 -116
3 495 22 -8 -116 15.1 -6.1 -116 15.1 -1 -116
3 495 9 32 -116 22 32 -116 9 16 -116
4 495 15.1 -1 -116 15.1 4.1 -116 22 32 -116 22 -8 -116
4 495 9 16 -116 22 32 -116 15.1 4.1 -116 10 4.1 -116
4 495 10 4.1 -116 4.9 4.1 -116 2 16 -116 9 16 -116
3 495 4.9 -6.1 -114 2 -8 -114 10 -6.1 -114
4 495 2 -8 -114 22 -8 -114 15.1 -6.1 -114 10 -6.1 -114
3 495 15.1 -6.1 -114 22 -8 -114 15.1 -1 -114
4 495 15.1 -1 -114 22 -8 -114 22 32 -114 15.1 4.1 -114
4 495 15.1 4.1 -114 22 32 -114 9 32 -114 9 16 -114
3 495 15.1 4.1 -114 9 16 -114 10 4.1 -114
4 495 10 4.1 -114 9 16 -114 2 16 -114 4.9 4.1 -114
3 495 3.5 -1 -116 4.9 -1 -116 3.234 -2.339 -116
4 495 4.9 -1 -116 4.9 -6.1 -116 2.475 -3.475 -116 3.234 -2.339 -116
4 495 2 -8 -116 2 -3.792 -116 2.475 -3.475 -116 4.9 -6.1 -116
4 495 3.5 -1 -116 3.234 .339 -116 4.9 4.1 -116 4.9 -1 -116
3 495 4.9 4.1 -116 3.234 .339 -116 2.475 1.475 -116
4 495 2 16 -116 4.9 4.1 -116 2.475 1.475 -116 2 1.792 -116
3 495 4.9 -1 -114 3.5 -1 -114 3.234 -2.339 -114
4 495 4.9 -1 -114 3.234 -2.339 -114 2.475 -3.475 -114 4.9 -6.1 -114
4 495 2 -8 -114 4.9 -6.1 -114 2.475 -3.475 -114 2 -3.792 -114
4 495 3.5 -1 -114 4.9 -1 -114 4.9 4.1 -114 3.234 .339 -114
3 495 3.234 .339 -114 4.9 4.1 -114 2.475 1.475 -114
4 495 2 16 -114 2 1.792 -114 2.475 1.475 -114 4.9 4.1 -114
1 495 12 -8 -115 10 0 0 0 1 0 0 0 1 rect.dat
1 495 22 12 -115 0 -1 0 0 0 20 -1 0 0 rect3.dat
1 495 2 -5.896 -115 0 1 0 0 0 2.104 1 0 0 rect3.dat
1 495 2 8.896 -115 0 1 0 0 0 -7.104 -1 0 0 rect3.dat
1 495 5.5 16 -115 0 0 3.5 0 -1 0 1 0 0 rect.dat
1 495 9 24 -115 0 1 0 0 0 8 1 0 0 rect3.dat
1 495 15.5 32 -115 -6.5 0 0 0 -1 0 0 0 1 rect2p.dat
4 495 2.475 1.475 -114 2 1.792 -114 2 1.792 -116 2.475 1.475 -116
4 495 3.234 .339 -114 2.475 1.475 -114 2.475 1.475 -116 3.234 .339 -116
4 495 3.5 -1 -114 3.234 .339 -114 3.234 .339 -116 3.5 -1 -116
4 495 3.234 -2.339 -114 3.5 -1 -114 3.5 -1 -116 3.234 -2.339 -116
4 495 2.475 -3.475 -114 3.234 -2.339 -114 3.234 -2.339 -116 2.475 -3.475 -116
4 495 2 -3.792 -114 2.475 -3.475 -114 2.475 -3.475 -116 2 -3.792 -116
2 24 -2.475 -3.475 -116 -3.234 -2.339 -116
2 24 -3.234 -2.339 -114 -2.475 -3.475 -114
2 24 -2.475 -3.475 -116 -2 -3.792 -116
2 24 -2 -3.792 -114 -2.475 -3.475 -114
2 24 -3.5 -1 -116 -3.234 .339 -116
2 24 -3.5 -1 -114 -3.234 .339 -114
2 24 -3.234 -2.339 -116 -3.5 -1 -116
2 24 -3.5 -1 -114 -3.234 -2.339 -114
2 24 -2 1.792 -116 -2.475 1.475 -116
2 24 -2.475 1.475 -114 -2 1.792 -114
2 24 -3.234 .339 -116 -2.475 1.475 -116
2 24 -3.234 .339 -114 -2.475 1.475 -114
5 24 -3.234 -2.339 -116 -3.234 -2.339 -114 -3.5 -1 -114 -2.475 -3.475 -116
5 24 -2.475 -3.475 -116 -2.475 -3.475 -114 -3.234 -2.339 -114 -2 -3.792 -116
5 24 -2.475 1.475 -116 -2.475 1.475 -114 -2 1.792 -114 -3.234 .339 -116
5 24 -3.234 .339 -114 -3.234 .339 -116 -2.475 1.475 -114 -3.5 -1 -116
5 24 -3.5 -1 -116 -3.5 -1 -114 -3.234 -2.339 -116 -3.234 .339 -114
0 BFC INVERTNEXT
1 495 -10 -1 -114 -5.1 0 0 0 0 -5.1 0 -2 0 4-4cylo.dat
1 495 -10 -1 -114 -5.1 0 0 0 0 -5.1 0 -1 0 4-4ndis.dat
1 495 -10 -1 -116 -5.1 0 0 0 0 -5.1 0 1 0 4-4ndis.dat
4 495 -4.9 -6.1 -116 -2 -8 -116 -22 -8 -116 -10 -6.1 -116
3 495 -10 -6.1 -116 -22 -8 -116 -15.1 -6.1 -116
3 495 -15.1 -6.1 -116 -22 -8 -116 -15.1 -1 -116
3 495 -22 32 -116 -9 32 -116 -9 16 -116
4 495 -22 32 -116 -15.1 4.1 -116 -15.1 -1 -116 -22 -8 -116
4 495 -15.1 4.1 -116 -22 32 -116 -9 16 -116 -10 4.1 -116
4 495 -2 16 -116 -4.9 4.1 -116 -10 4.1 -116 -9 16 -116
3 495 -2 -8 -114 -4.9 -6.1 -114 -10 -6.1 -114
4 495 -15.1 -6.1 -114 -22 -8 -114 -2 -8 -114 -10 -6.1 -114
3 495 -22 -8 -114 -15.1 -6.1 -114 -15.1 -1 -114
4 495 -22 32 -114 -22 -8 -114 -15.1 -1 -114 -15.1 4.1 -114
4 495 -9 32 -114 -22 32 -114 -15.1 4.1 -114 -9 16 -114
3 495 -9 16 -114 -15.1 4.1 -114 -10 4.1 -114
4 495 -2 16 -114 -9 16 -114 -10 4.1 -114 -4.9 4.1 -114
3 495 -4.9 -1 -116 -3.5 -1 -116 -3.234 -2.339 -116
4 495 -2.475 -3.475 -116 -4.9 -6.1 -116 -4.9 -1 -116 -3.234 -2.339 -116
4 495 -2.475 -3.475 -116 -2 -3.792 -116 -2 -8 -116 -4.9 -6.1 -116
4 495 -4.9 4.1 -116 -3.234 .339 -116 -3.5 -1 -116 -4.9 -1 -116
3 495 -3.234 .339 -116 -4.9 4.1 -116 -2.475 1.475 -116
4 495 -2.475 1.475 -116 -4.9 4.1 -116 -2 16 -116 -2 1.792 -116
3 495 -3.5 -1 -114 -4.9 -1 -114 -3.234 -2.339 -114
4 495 -2.475 -3.475 -114 -3.234 -2.339 -114 -4.9 -1 -114 -4.9 -6.1 -114
4 495 -2.475 -3.475 -114 -4.9 -6.1 -114 -2 -8 -114 -2 -3.792 -114
4 495 -4.9 4.1 -114 -4.9 -1 -114 -3.5 -1 -114 -3.234 .339 -114
3 495 -4.9 4.1 -114 -3.234 .339 -114 -2.475 1.475 -114
4 495 -2.475 1.475 -114 -2 1.792 -114 -2 16 -114 -4.9 4.1 -114
1 495 -12 -8 -115 -10 0 0 0 1 0 0 0 1 rect.dat
1 495 -22 12 -115 0 1 0 0 0 20 -1 0 0 rect3.dat
1 495 -2 -5.896 -115 0 -1 0 0 0 2.104 1 0 0 rect3.dat
1 495 -2 8.896 -115 0 -1 0 0 0 -7.104 -1 0 0 rect3.dat
1 495 -5.5 16 -115 0 0 -3.5 0 -1 0 1 0 0 rect.dat
1 495 -9 24 -115 0 -1 0 0 0 8 1 0 0 rect3.dat
1 495 -15.5 32 -115 6.5 0 0 0 -1 0 0 0 1 rect2p.dat
4 495 -2 1.792 -116 -2 1.792 -114 -2.475 1.475 -114 -2.475 1.475 -116
4 495 -2.475 1.475 -116 -2.475 1.475 -114 -3.234 .339 -114 -3.234 .339 -116
4 495 -3.234 .339 -116 -3.234 .339 -114 -3.5 -1 -114 -3.5 -1 -116
4 495 -3.5 -1 -116 -3.5 -1 -114 -3.234 -2.339 -114 -3.234 -2.339 -116
4 495 -3.234 -2.339 -116 -3.234 -2.339 -114 -2.475 -3.475 -114 -2.475 -3.475 -116
4 495 -2.475 -3.475 -116 -2.475 -3.475 -114 -2 -3.792 -114 -2 -3.792 -116
0 // Contacts
1 494 10 -1 -116 1 0 0 0 1 0 0 0 1 s\3443as03.dat
1 494 -10 -1 -116 1 0 0 0 1 0 0 0 1 s\3443as03.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Alex Taylor
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Willy Tschager,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
