File Detail parts/3475a.dat

Official File parts/3475a.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

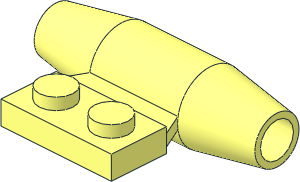

Plate 1 x 2 with Jet Engine and Smooth Hole

File Header:

0 Plate  1 x  2 with Jet Engine and Smooth Hole
0 Name: 3475a.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2004-10-22 [mikeheide] used 48'ed primitives
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2021-03-08 [Philo] Corrected cylinder/support intersection
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2023-04-23 [nielsk] Corrected inside
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
