Official File parts/3488.dat
Part Attributes:
File Header:

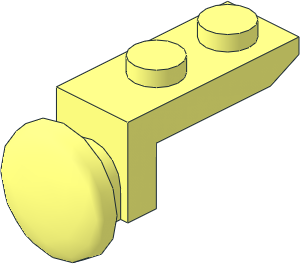

0 Train Single Buffer
0 Name: 3488.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Part UPDATE 2009-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink buffer
0 !HISTORY 2006-04-19 [DeannaEarley] Tidied up underside lines and the buffer itself
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
Show contents
0 // // Inner edges
2 24 -10 0 -28 -10 0 20
2 24 -10 0 20 -10 4 20
2 24 -10 4 20 -10 8 12
2 24 -10 8 12 -10 8 -20
2 24 -10 8 -20 -10 23 -20
2 24 -10 23 -20 -10 23 -28
2 24 -10 23 -28 -10 0 -28
2 24 10 0 -28 10 0 20
2 24 10 0 20 10 4 20
2 24 10 4 20 10 8 12
2 24 10 8 12 10 8 -20
2 24 10 8 -20 10 23 -20
2 24 10 23 -20 10 23 -28
2 24 10 23 -28 10 0 -28
2 24 -6 4 -16 -6 4 20
2 24 -6 4 -16 -6 8 -16
2 24 -6 4 20 -6 8 12
2 24 -6 8 12 -6 8 -16
2 24 -6 4 -20 -6 23 -20
2 24 -6 23 -20 -6 23 -24
2 24 -6 23 -24 -6 4 -24
2 24 -6 4 -24 -6 4 -20
2 24 6 4 -16 6 4 20
2 24 6 4 -16 6 8 -16
2 24 6 4 20 6 8 12
2 24 6 8 12 6 8 -16
2 24 6 4 -20 6 23 -20
2 24 6 23 -20 6 23 -24
2 24 6 23 -24 6 4 -24
2 24 6 4 -24 6 4 -20
0 // Outer buffer lines
1 16 0 16 -28 8 0 0 0 0 -8 0 1 0 2-4edge.dat
1 16 0 16 -36 8 0 0 0 0 -8 0 1 0 2-4edge.dat
2 24 -8 16 -28 -8 23 -28
2 24 -8 23 -28 -8 23 -36
2 24 -8 23 -36 -8 16 -36
2 24 8 16 -28 8 23 -28
2 24 8 23 -28 8 23 -36
2 24 8 23 -36 8 16 -36
0 // Inner buffer lines
1 16 0 16 -24 4 0 0 0 0 -4 0 1 0 2-4edge.dat
1 16 0 16 -36 4 0 0 0 0 -4 0 1 0 2-4edge.dat
2 24 -4 16 -24 -4 23 -24
2 24 -4 23 -24 -4 23 -36
2 24 -4 23 -36 -4 16 -36
2 24 4 16 -24 4 23 -24
2 24 4 23 -24 4 23 -36
2 24 4 23 -36 4 16 -36
0 // Transverse lines
2 24 -10 0 -28 10 0 -28
2 24 -10 0 20 10 0 20
2 24 -10 4 20 10 4 20
2 24 -10 8 12 -6 8 12
2 24 6 8 12 10 8 12
2 24 -10 8 -20 -6 8 -20
2 24 6 8 -20 10 8 -20
2 24 -10 23 -20 -6 23 -20
2 24 6 23 -20 10 23 -20
2 24 -6 4 -24 6 4 -24
2 24 -6 23 -24 -4 23 -24
2 24 4 23 -24 6 23 -24
2 24 -10 23 -28 -8 23 -28
2 24 8 23 -28 10 23 -28
2 24 -8 23 -36 -4 23 -36
2 24 4 23 -36 8 23 -36
0 // Inner faces
0 BFC INVERTNEXT
1 16 0 16 -24 4 0 0 0 0 -4 0 -12 0 2-4cyli.dat
1 16 0 16 -24 4 0 0 0 0 -4 0 -1 0 2-4ndis.dat
4 16 4 16 -36 4 16 -24 4 23 -24 4 23 -36
4 16 6 23 -24 6 4 -24 6 4 -20 6 23 -20
4 16 6 4 -16 6 4 20 6 8 12 6 8 -16
4 16 -4 23 -36 -4 23 -24 -4 16 -24 -4 16 -36
4 16 -6 23 -20 -6 4 -20 -6 4 -24 -6 23 -24
4 16 -6 8 -16 -6 8 12 -6 4 20 -6 4 -16
4 16 -6 4 20 6 4 20 6 4 -16 -6 4 -16
4 16 -6 4 -20 6 4 -20 6 4 -24 -6 4 -24
4 16 -6 23 -24 -6 4 -24 -4 12 -24 -4 23 -24
4 16 4 23 -24 4 12 -24 6 4 -24 6 23 -24
4 16 6 4 -24 4 12 -24 -4 12 -24 -6 4 -24
1 16 0 4 -18 6 0 0 0 4 0 0 0 2 box3u8p.dat
0 // Topside faces
1 16 0 16 -28 8 0 0 0 0 -8 0 -8 0 2-4cyli.dat
1 16 0 16 -28 8 0 0 0 0 -8 0 1 0 2-4ndis.dat
4 16 -8 23 -36 -8 16 -36 -8 16 -28 -8 23 -28
4 16 8 23 -28 8 16 -28 8 16 -36 8 23 -36
4 16 -8 23 -28 -8 8 -28 -10 0 -28 -10 23 -28
4 16 10 23 -28 10 0 -28 8 8 -28 8 23 -28
4 16 -10 0 -28 -8 8 -28 8 8 -28 10 0 -28
4 16 10 0 -28 10 0 20 -10 0 20 -10 0 -28
4 16 -10 23 -28 -10 0 -28 -10 8 -20 -10 23 -20
4 16 -10 0 -28 -10 0 20 -10 4 20 -10 8 12
3 16 -10 0 -28 -10 8 12 -10 8 -20
4 16 10 23 -20 10 8 -20 10 0 -28 10 23 -28
4 16 10 8 12 10 4 20 10 0 20 10 0 -28
3 16 10 8 -20 10 8 12 10 0 -28
0 // Underside faces
4 16 10 0 20 10 4 20 -10 4 20 -10 0 20
4 16 -6 4 20 -6 8 12 -10 8 12 -10 4 20
4 16 -6 8 12 -6 8 -20 -10 8 -20 -10 8 12
4 16 -6 8 -20 -6 23 -20 -10 23 -20 -10 8 -20
4 16 -6 23 -20 -6 23 -24 -10 23 -28 -10 23 -20
4 16 -6 23 -24 -4 23 -24 -8 23 -28 -10 23 -28
4 16 -4 23 -24 -4 23 -36 -8 23 -36 -8 23 -28
4 16 10 4 20 10 8 12 6 8 12 6 4 20
4 16 10 8 12 10 8 -20 6 8 -20 6 8 12
4 16 10 8 -20 10 23 -20 6 23 -20 6 8 -20
4 16 10 23 -20 10 23 -28 6 23 -24 6 23 -20
4 16 10 23 -28 8 23 -28 4 23 -24 6 23 -24
4 16 8 23 -28 8 23 -36 4 23 -36 4 23 -24
0 // Studs
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 0 -10 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 0 0 10 0 0 -1 0 1 0 1 0 0 stud.dat
0 // Buffer
1 16 0 16 -36 15 0 0 0 0 15 0 -1 0 4-4disc.dat
1 16 0 16 -36 15 0 0 0 0 15 0 1 0 4-4edge.dat
1 16 0 16 -36 0.5 0 0 0 0 0.5 0 -3 0 4-4con29.dat
1 16 0 16 -39 14.5 0 0 0 0 14.5 0 -3 0 4-8sphe.dat
