Official File parts/3650c.dat
Part Attributes:
File Header:

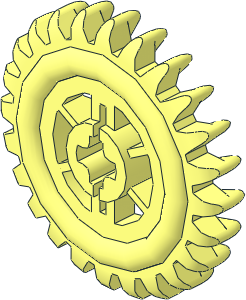

0 Technic Gear 24 Tooth Crown Type 3
0 Name: 3650c.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Part UPDATE 2011-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 3650b
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3650s01.dat
1 16 0 0 -6 13.858 0 5.74 -5.74 0 13.858 0 -1 0 1-8edge.dat
1 16 0 0 -6 -13.858 0 -5.74 5.74 0 -13.858 0 -1 0 1-8edge.dat
1 16 0 0 -6 -10.607 0 10.607 -10.607 0 -10.607 0 -1 0 1-16edge.dat
1 16 0 0 -6 -5.74 0 -13.858 13.858 0 -5.74 0 -1 0 1-16edge.dat
1 16 0 0 -6 10.607 0 -10.607 10.607 0 10.607 0 -1 0 1-16edge.dat
1 16 0 0 -6 5.74 0 13.858 -13.858 0 5.74 0 -1 0 1-16edge.dat
2 24 7.104 5.256 -6 12.212 8.205 -6
2 24 10.607 10.607 -6 12.212 8.205 -6
2 24 12.212 8.205 -6 12.212 8.205 0
2 24 8.22 3.591 -6 13.328 6.54 -6
2 24 13.858 5.74 -6 13.328 6.54 -6
2 24 13.328 6.54 -6 13.328 6.54 0
2 24 7.104 5.256 5 12.212 8.205 0
4 16 8.22 3.591 5 13.328 6.54 0 12.212 8.205 0 7.104 5.256 5
4 16 13.328 6.54 -6 8.22 3.591 -6 7.104 5.256 -6 12.212 8.205 -6
4 16 7.104 5.256 5 12.212 8.205 0 12.212 8.205 -6 7.104 5.256 -6
2 24 8.22 3.591 5 7.104 5.256 5
2 24 8.22 3.591 -6 7.104 5.256 -6
2 24 7.104 5.256 5 7.104 5.256 -6
2 24 8.22 3.591 5 13.328 6.54 0
4 16 8.22 3.591 -6 13.328 6.54 -6 13.328 6.54 0 8.22 3.591 5
2 24 8.22 3.591 5 8.22 3.591 -6
2 24 -7.104 -5.256 -6 -12.212 -8.205 -6
2 24 -10.607 -10.607 -6 -12.212 -8.205 -6
2 24 -12.212 -8.205 -6 -12.212 -8.205 0
2 24 -8.22 -3.591 -6 -13.328 -6.54 -6
2 24 -13.858 -5.74 -6 -13.328 -6.54 -6
2 24 -13.328 -6.54 -6 -13.328 -6.54 0
2 24 -7.104 -5.256 5 -12.212 -8.205 0
4 16 -8.22 -3.591 5 -13.328 -6.54 0 -12.212 -8.205 0 -7.104 -5.256 5
4 16 -13.328 -6.54 -6 -8.22 -3.591 -6 -7.104 -5.256 -6 -12.212 -8.205 -6
4 16 -7.104 -5.256 5 -12.212 -8.205 0 -12.212 -8.205 -6 -7.104 -5.256 -6
2 24 -8.22 -3.591 5 -7.104 -5.256 5
2 24 -8.22 -3.591 -6 -7.104 -5.256 -6
2 24 -7.104 -5.256 5 -7.104 -5.256 -6
2 24 -8.22 -3.591 5 -13.328 -6.54 0
4 16 -8.22 -3.591 -6 -13.328 -6.54 -6 -13.328 -6.54 0 -8.22 -3.591 5
2 24 -8.22 -3.591 5 -8.22 -3.591 -6
2 24 -7.104 5.256 -6 -12.212 8.205 -6
2 24 -10.607 10.607 -6 -12.212 8.205 -6
2 24 -12.212 8.205 -6 -12.212 8.205 0
2 24 -8.22 3.591 -6 -13.328 6.54 -6
2 24 -13.858 5.74 -6 -13.328 6.54 -6
2 24 -13.328 6.54 -6 -13.328 6.54 0
2 24 -7.104 5.256 5 -12.212 8.205 0
4 16 -7.104 5.256 5 -12.212 8.205 0 -13.328 6.54 0 -8.22 3.591 5
4 16 -8.22 3.591 -6 -13.328 6.54 -6 -12.212 8.205 -6 -7.104 5.256 -6
4 16 -7.104 5.256 -6 -12.212 8.205 -6 -12.212 8.205 0 -7.104 5.256 5
2 24 -8.22 3.591 5 -7.104 5.256 5
2 24 -8.22 3.591 -6 -7.104 5.256 -6
2 24 -7.104 5.256 5 -7.104 5.256 -6
2 24 -8.22 3.591 5 -13.328 6.54 0
4 16 -8.22 3.591 5 -13.328 6.54 0 -13.328 6.54 -6 -8.22 3.591 -6
2 24 -8.22 3.591 5 -8.22 3.591 -6
2 24 7.104 -5.256 -6 12.212 -8.205 -6
2 24 10.607 -10.607 -6 12.212 -8.205 -6
2 24 12.212 -8.205 -6 12.212 -8.205 0
2 24 8.22 -3.591 -6 13.328 -6.54 -6
2 24 13.858 -5.74 -6 13.328 -6.54 -6
2 24 13.328 -6.54 -6 13.328 -6.54 0
2 24 7.104 -5.256 5 12.212 -8.205 0
4 16 7.104 -5.256 5 12.212 -8.205 0 13.328 -6.54 0 8.22 -3.591 5
4 16 8.22 -3.591 -6 13.328 -6.54 -6 12.212 -8.205 -6 7.104 -5.256 -6
4 16 7.104 -5.256 -6 12.212 -8.205 -6 12.212 -8.205 0 7.104 -5.256 5
2 24 8.22 -3.591 5 7.104 -5.256 5
2 24 8.22 -3.591 -6 7.104 -5.256 -6
2 24 7.104 -5.256 5 7.104 -5.256 -6
2 24 8.22 -3.591 5 13.328 -6.54 0
4 16 8.22 -3.591 5 13.328 -6.54 0 13.328 -6.54 -6 8.22 -3.591 -6
2 24 8.22 -3.591 5 8.22 -3.591 -6
1 16 0 -26.87 0 1 0 0 0 1 0 0 0 1 tooth24b.dat
1 16 -6.954 -25.954 0 0.966 0.259 0 -0.259 0.966 0 0 0 1 tooth24b.dat
1 16 -13.434 -23.27 0 0.866 0.5 0 -0.5 0.866 0 0 0 1 tooth24b.dat
1 16 -19 -19 0 0.707 0.707 0 -0.707 0.707 0 0 0 1 tooth24b.dat
1 16 -23.27 -13.435 0 0.5 0.866 0 -0.866 0.5 0 0 0 1 tooth24b.dat
1 16 -25.953 -6.955 0 0.259 0.966 0 -0.966 0.259 0 0 0 1 tooth24b.dat
1 16 -26.87 0 0 0 1 0 -1 0 0 0 0 1 tooth24b.dat
1 16 -25.954 6.953 0 -0.259 0.966 0 -0.966 -0.259 0 0 0 1 tooth24b.dat
1 16 -23.27 13.433 0 -0.5 0.866 0 -0.866 -0.5 0 0 0 1 tooth24b.dat
1 16 -19 19 0 -0.707 0.707 0 -0.707 -0.707 0 0 0 1 tooth24b.dat
1 16 -13.436 23.27 0 -0.866 0.5 0 -0.5 -0.866 0 0 0 1 tooth24b.dat
1 16 -6.956 25.953 0 -0.966 0.259 0 -0.259 -0.966 0 0 0 1 tooth24b.dat
1 16 0 26.87 0 -1 0 0 0 -1 0 0 0 1 tooth24b.dat
1 16 6.952 25.954 0 -0.966 -0.259 0 0.259 -0.966 0 0 0 1 tooth24b.dat
1 16 13.433 23.27 0 -0.866 -0.5 0 0.5 -0.866 0 0 0 1 tooth24b.dat
1 16 19 19 0 -0.707 -0.707 0 0.707 -0.707 0 0 0 1 tooth24b.dat
1 16 23.27 13.436 0 -0.5 -0.866 0 0.866 -0.5 0 0 0 1 tooth24b.dat
1 16 25.953 6.956 0 -0.259 -0.966 0 0.966 -0.259 0 0 0 1 tooth24b.dat
1 16 26.87 0 0 0 -1 0 1 0 0 0 0 1 tooth24b.dat
1 16 25.954 -6.952 0 0.259 -0.966 0 0.966 0.259 0 0 0 1 tooth24b.dat
1 16 23.27 -13.433 0 0.5 -0.866 0 0.866 0.5 0 0 0 1 tooth24b.dat
1 16 19 -19 0 0.707 -0.707 0 0.707 0.707 0 0 0 1 tooth24b.dat
1 16 13.436 -23.27 0 0.866 -0.5 0 0.5 0.866 0 0 0 1 tooth24b.dat
1 16 6.956 -25.953 0 0.966 -0.259 0 0.259 0.966 0 0 0 1 tooth24b.dat
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Donald Sutter
Licensed under CC BY 4.0
