Official File parts/3651.dat
Part Attributes:
File Header:

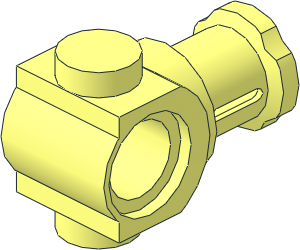

0 Technic Connector (Pin/Bush) with 2 Studs
0 Name: 3651.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2000-08-01 {Axel Poque} fixes to resolve L3P error messages
0 !HISTORY 2000-08-01 {Manfred Moolhuysen} fixes to resolve L3P error messages
0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-06-29 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant, used more primitive (2005-04-25)
0 !HISTORY 2008-07-08 [mkennedy] Used box2-5 primitive (2004-05-25)
0 !HISTORY 2008-07-09 [guyvivan] Replace rects, quads and lines by two box2-5.dat (2004-05-25)
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2009-06-18 [Steffen] replaced studs by cylinders as they do _not_ have a logo and therefore are not "normal" studs
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2021-12-29 [MagFors] Reshaped axlehole, used studs with no logo, connhole
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 bush.dat
1 16 0 0 -20 0 1 0 -1 0 0 0 0 1 connhole.dat
1 16 10 0 -20 0 -20 0 0 0 9 -9 0 0 1-8cylo.dat
1 16 10 0 -20 0 -20 0 0 0 -9 -9 0 0 1-8cylo.dat
1 16 0 -8.305 -20 10 0 0 0 -1.695 0 0 0 -6 box2-5.dat
1 16 0 8.305 -20 -10 0 0 0 1.695 0 0 0 -6 box2-5.dat
1 16 0 -10 -20 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 0 10 -20 1 0 0 0 -1 0 0 0 -1 stud26.dat
2 24 10 -6.61 -26 10 -6.3639 -26.3639
2 24 10 6.61 -26 10 6.3639 -26.3639
2 24 -10 -6.61 -26 -10 -6.3639 -26.3639
2 24 -10 6.61 -26 -10 6.3639 -26.3639
2 24 10 0 -8.34 10 3.83 -8.98
2 24 10 3.83 -8.98 10 7.07 -10.73
2 24 10 7.07 -10.73 10 9.24 -12.89
2 24 10 9.24 -12.89 10 10 -14
2 24 -10 0 -8.34 -10 3.83 -8.98
2 24 -10 3.83 -8.98 -10 7.07 -10.73
2 24 -10 7.07 -10.73 -10 9.24 -12.89
2 24 -10 9.24 -12.89 -10 10 -14
2 24 10 0 -8.34 10 -3.83 -8.98
2 24 10 -3.83 -8.98 10 -7.07 -10.73
2 24 10 -7.07 -10.73 10 -9.24 -12.89
2 24 10 -9.24 -12.89 10 -10 -14
2 24 -10 0 -8.34 -10 -3.83 -8.98
2 24 -10 -3.83 -8.98 -10 -7.07 -10.73
2 24 -10 -7.07 -10.73 -10 -9.24 -12.89
2 24 -10 -9.24 -12.89 -10 -10 -14
2 24 10 0 -8.34 9.24 3.83 -8.98
2 24 9.24 3.83 -8.98 7.07 7.07 -10.73
2 24 7.07 7.07 -10.73 3.83 9.24 -12.89
2 24 3.83 9.24 -12.89 0 10 -14
2 24 -10 0 -8.34 -9.24 3.83 -8.98
2 24 -9.24 3.83 -8.98 -7.07 7.07 -10.73
2 24 -7.07 7.07 -10.73 -3.83 9.24 -12.89
2 24 -3.83 9.24 -12.89 0 10 -14
2 24 10 0 -8.34 9.24 -3.83 -8.98
2 24 9.24 -3.83 -8.98 7.07 -7.07 -10.73
2 24 7.07 -7.07 -10.73 3.83 -9.24 -12.89
2 24 3.83 -9.24 -12.89 0 -10 -14
2 24 -10 0 -8.34 -9.24 -3.83 -8.98
2 24 -9.24 -3.83 -8.98 -7.07 -7.07 -10.73
2 24 -7.07 -7.07 -10.73 -3.83 -9.24 -12.89
2 24 -3.83 -9.24 -12.89 0 -10 -14
3 16 10 3.83 -8.98 9.24 3.83 -8.98 10 0 -8.34
4 16 10 3.83 -8.98 10 7.07 -10.73 7.07 7.07 -10.73 9.24 3.83 -8.98
4 16 10 7.07 -10.73 10 9.24 -12.89 3.83 9.24 -12.89 7.07 7.07 -10.73
4 16 10 9.24 -12.89 10 10 -14 0 10 -14 3.83 9.24 -12.89
3 16 -10 0 -8.34 -9.24 3.83 -8.98 -10 3.83 -8.98
4 16 -9.24 3.83 -8.98 -7.07 7.07 -10.73 -10 7.07 -10.73 -10 3.83 -8.98
4 16 -7.07 7.07 -10.73 -3.83 9.24 -12.89 -10 9.24 -12.89 -10 7.07 -10.73
4 16 -3.83 9.24 -12.89 0 10 -14 -10 10 -14 -10 9.24 -12.89
3 16 10 0 -8.34 9.24 -3.83 -8.98 10 -3.83 -8.98
4 16 9.24 -3.83 -8.98 7.07 -7.07 -10.73 10 -7.07 -10.73 10 -3.83 -8.98
4 16 7.07 -7.07 -10.73 3.83 -9.24 -12.89 10 -9.24 -12.89 10 -7.07 -10.73
4 16 3.83 -9.24 -12.89 0 -10 -14 10 -10 -14 10 -9.24 -12.89
3 16 -10 -3.83 -8.98 -9.24 -3.83 -8.98 -10 0 -8.34
4 16 -10 -3.83 -8.98 -10 -7.07 -10.73 -7.07 -7.07 -10.73 -9.24 -3.83 -8.98
4 16 -10 -7.07 -10.73 -10 -9.24 -12.89 -3.83 -9.24 -12.89 -7.07 -7.07 -10.73
4 16 0 -10 -14 -3.83 -9.24 -12.89 -10 -9.24 -12.89 -10 -10 -14
5 24 9.24 3.83 -8.98 10 3.83 -8.98 10 7.07 -10.73 10 0 -8.34
5 24 7.07 7.07 -10.73 10 7.07 -10.73 10 9.24 -12.89 10 3.83 -8.98
5 24 3.83 9.24 -12.89 10 9.24 -12.89 10 10 -14 10 7.07 -10.73
5 24 -9.24 3.83 -8.98 -10 3.83 -8.98 -10 7.07 -10.73 -10 0 -8.34
5 24 -7.07 7.07 -10.73 -10 7.07 -10.73 -10 9.24 -12.89 -10 3.83 -8.98
5 24 -3.83 9.24 -12.89 -10 9.24 -12.89 -10 10 -14 -10 7.07 -10.73
5 24 9.24 -3.83 -8.98 10 -3.83 -8.98 10 -7.07 -10.73 10 0 -8.34
5 24 7.07 -7.07 -10.73 10 -7.07 -10.73 10 -9.24 -12.89 10 -3.83 -8.98
5 24 3.83 -9.24 -12.89 10 -9.24 -12.89 10 -10 -14 10 -7.07 -10.73
5 24 -9.24 -3.83 -8.98 -10 -3.83 -8.98 -10 -7.07 -10.73 -10 0 -8.34
5 24 -7.07 -7.07 -10.73 -10 -7.07 -10.73 -10 -9.24 -12.89 -10 -3.83 -8.98
5 24 -3.83 -9.24 -12.89 -10 -9.24 -12.89 -10 -10 -14 -10 -7.07 -10.73
4 16 -10 0 -8.34 -10 3.83 -8.98 -10 3.4443 -11.6849 -10 0 -11
4 16 -10 3.83 -8.98 -10 7.07 -10.73 -10 6.3639 -13.6361 -10 3.4443 -11.6849
4 16 -10 7.07 -10.73 -10 9.24 -12.89 -10 8.3151 -16.5557 -10 6.3639 -13.6361
4 16 -10 9.24 -12.89 -10 10 -14 -10 9 -20 -10 8.3151 -16.5557
3 16 -10 10 -26 -10 8.3151 -23.4443 -10 9 -20
3 16 -10 10 -14 -10 10 -26 -10 9 -20
3 16 -10 10 -26 -10 6.61 -26 -10 8.3151 -23.4443
4 16 -10 -3.83 -8.98 -10 0 -8.34 -10 0 -11 -10 -3.4443 -11.6849
4 16 -10 -7.07 -10.73 -10 -3.83 -8.98 -10 -3.4443 -11.6849 -10 -6.3639 -13.6361
4 16 -10 -9.24 -12.89 -10 -7.07 -10.73 -10 -6.3639 -13.6361 -10 -8.3151 -16.5557
4 16 -10 -10 -14 -10 -9.24 -12.89 -10 -8.3151 -16.5557 -10 -9 -20
3 16 -10 -10 -26 -10 -9 -20 -10 -8.3151 -23.4443
3 16 -10 -10 -26 -10 -10 -14 -10 -9 -20
3 16 -10 -6.61 -26 -10 -10 -26 -10 -8.3151 -23.4443
4 16 10 0 -8.34 10 -3.83 -8.98 10 -3.4443 -11.6849 10 0 -11
4 16 10 -3.83 -8.98 10 -7.07 -10.73 10 -6.3639 -13.6361 10 -3.4443 -11.6849
4 16 10 -7.07 -10.73 10 -9.24 -12.89 10 -8.3151 -16.5557 10 -6.3639 -13.6361
4 16 10 -9.24 -12.89 10 -10 -14 10 -9 -20 10 -8.3151 -16.5557
3 16 10 -10 -26 10 -8.3151 -23.4443 10 -9 -20
3 16 10 -10 -14 10 -10 -26 10 -9 -20
3 16 10 -10 -26 10 -6.61 -26 10 -8.3151 -23.4443
4 16 10 3.83 -8.98 10 0 -8.34 10 0 -11 10 3.4443 -11.6849
4 16 10 7.07 -10.73 10 3.83 -8.98 10 3.4443 -11.6849 10 6.3639 -13.6361
4 16 10 9.24 -12.89 10 7.07 -10.73 10 6.3639 -13.6361 10 8.3151 -16.5557
4 16 10 10 -14 10 9.24 -12.89 10 8.3151 -16.5557 10 9 -20
3 16 10 10 -26 10 9 -20 10 8.3151 -23.4443
3 16 10 10 -26 10 10 -14 10 9 -20
3 16 10 6.61 -26 10 10 -26 10 8.3151 -23.4443
4 16 10 -6.61 -26 -10 -6.61 -26 -10 -6.3639 -26.3639 10 -6.3639 -26.3639
4 16 10 6.3639 -26.3639 -10 6.3639 -26.3639 -10 6.61 -26 10 6.61 -26
5 24 10 6.3639 -26.3639 -10 6.3639 -26.3639 10 6.61 -26 10 3.4443 -28.3151
5 24 10 -6.3639 -26.3639 -10 -6.3639 -26.3639 10 -6.61 -26 10 -3.4443 -28.3151
1 16 0 0 -10 1 0 0 0 0 1 0 -1 0 axl5end.dat
1 16 0 0 -7 0 0 10 10 0 0 0 1 0 4-4edge.dat
1 16 0 0 -8.34 -10 0 0 0 0 -10 0 -10 0 1-4cyls.dat
1 16 0 0 -8.34 -10 0 0 0 0 10 0 -10 0 1-4cyls.dat
1 16 0 0 -8.34 10 0 0 0 0 -10 0 -10 0 1-4cyls.dat
1 16 0 0 -8.34 10 0 0 0 0 10 0 -10 0 1-4cyls.dat
1 16 0 0 -8.34 0 0 10 10 0 0 0 1.34 0 4-4cyli.dat
1 16 0 0 -6 0 0 7 7 0 0 0 1 0 4-4edge.dat
1 16 0 0 -6.33 0 0 1 1 0 0 0 0.33 0 4-4con7.dat
1 16 0 0 -7 0 0 2 2 0 0 0 0.67 0 4-4con4.dat
