Official File parts/3660bp02.dat
External site data provided by Rebrickable.com

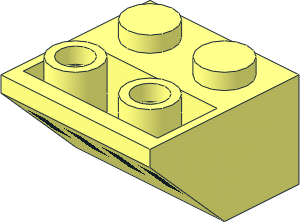

Slope Brick 45 2 x 2 Inverted with 4 Black Rectangles Pattern
0 Slope Brick 45  2 x  2 Inverted with 4 Black Rectangles Pattern
0 Name: 3660bp02.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS boat, Bricklink 3660pb002, Color Line, ferry, P&O Stena
0 !KEYWORDS Rebrickable 3660pr0002, set 1054, Viking Line, windows

0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2020-03-14 [MagFors] Used b-version subfile
0 !HISTORY 2021-11-07 [Holly-Wood] Added set reference
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3660bs01.dat
0 // Pattern
4 16 -2.5 8 -26 2.5 8 -26 20 4 -30 -20 4 -30
3 16 12.5 8 -26 17.5 8 -26 20 4 -30
3 16 7.5 8 -26 12.5 8 -26 20 4 -30
3 16 2.5 8 -26 7.5 8 -26 20 4 -30
3 16 -20 4 -30 -7.5 8 -26 -2.5 8 -26
3 16 -20 4 -30 -12.5 8 -26 -7.5 8 -26
3 16 -20 4 -30 -17.5 8 -26 -12.5 8 -26
4 16 2.5 16 -18 -2.5 16 -18 -20 24 -10 20 24 -10
3 16 -12.5 16 -18 -17.5 16 -18 -20 24 -10
3 16 -7.5 16 -18 -12.5 16 -18 -20 24 -10
3 16 -2.5 16 -18 -7.5 16 -18 -20 24 -10
3 16 20 24 -10 7.5 16 -18 2.5 16 -18
3 16 20 24 -10 12.5 16 -18 7.5 16 -18
3 16 20 24 -10 17.5 16 -18 12.5 16 -18
4 0 -12.5 8 -26 -17.5 8 -26 -17.5 16 -18 -12.5 16 -18
4 0 -2.5 8 -26 -7.5 8 -26 -7.5 16 -18 -2.5 16 -18
4 0 7.5 8 -26 2.5 8 -26 2.5 16 -18 7.5 16 -18
4 0 17.5 8 -26 12.5 8 -26 12.5 16 -18 17.5 16 -18
4 16 -17.5 8 -26 -20 4 -30 -20 24 -10 -17.5 16 -18
4 16 -7.5 8 -26 -12.5 8 -26 -12.5 16 -18 -7.5 16 -18
4 16 2.5 8 -26 -2.5 8 -26 -2.5 16 -18 2.5 16 -18
4 16 12.5 8 -26 7.5 8 -26 7.5 16 -18 12.5 16 -18
4 16 20 4 -30 17.5 8 -26 17.5 16 -18 20 24 -10
2 4 -16 4 -7 -11 4 -7
2 4 11 4 -7 16 4 -7
2 4 -9 4 -7 9 4 -7

Status

Official Official
This part has the following errors
  • Linetypes 2 and 5 should only be color 24
    Line 42: 2 4 -16 4 -7 -11 4 -7
    Line 43: 2 4 11 4 -7 16 4 -7
    Line 44: 2 4 -9 4 -7 9 4 -7
This part has the following warnings
  • Number in description may need a leading space

Part Dependencies

Unofficial parents

Part Events
